Save Powered Device Downtime with PRRT Technology
Antaira IEEE802.3bt Media Converters and PoE Switches

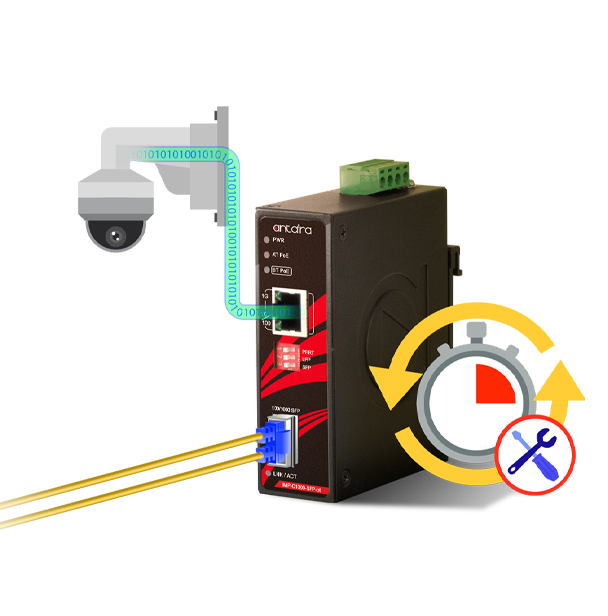

The First Aid for Your Remote Powered Device
When the remote PD (powered device) function abnormally, it is of utmost important to address the issue as soon as possible. However, it takes you lots of time and efforts to travel miles toward the remote site for trouble-shooting.
In order to save powered device downtime and to save you the inconvenience of troubleshooting for remote site, Antaira introduces IEEE802.3bt PoE Media Converters and PoE Switches with the patented PRRT (Power Remote Reset Technology) technology to help you take immediate action against the unexpected issues occurring on the remote site.
In order to save powered device downtime and to save you the inconvenience of troubleshooting for remote site, Antaira introduces IEEE802.3bt PoE Media Converters and PoE Switches with the patented PRRT (Power Remote Reset Technology) technology to help you take immediate action against the unexpected issues occurring on the remote site.
3 Steps to Prevent Long PD Downtime with PRRT

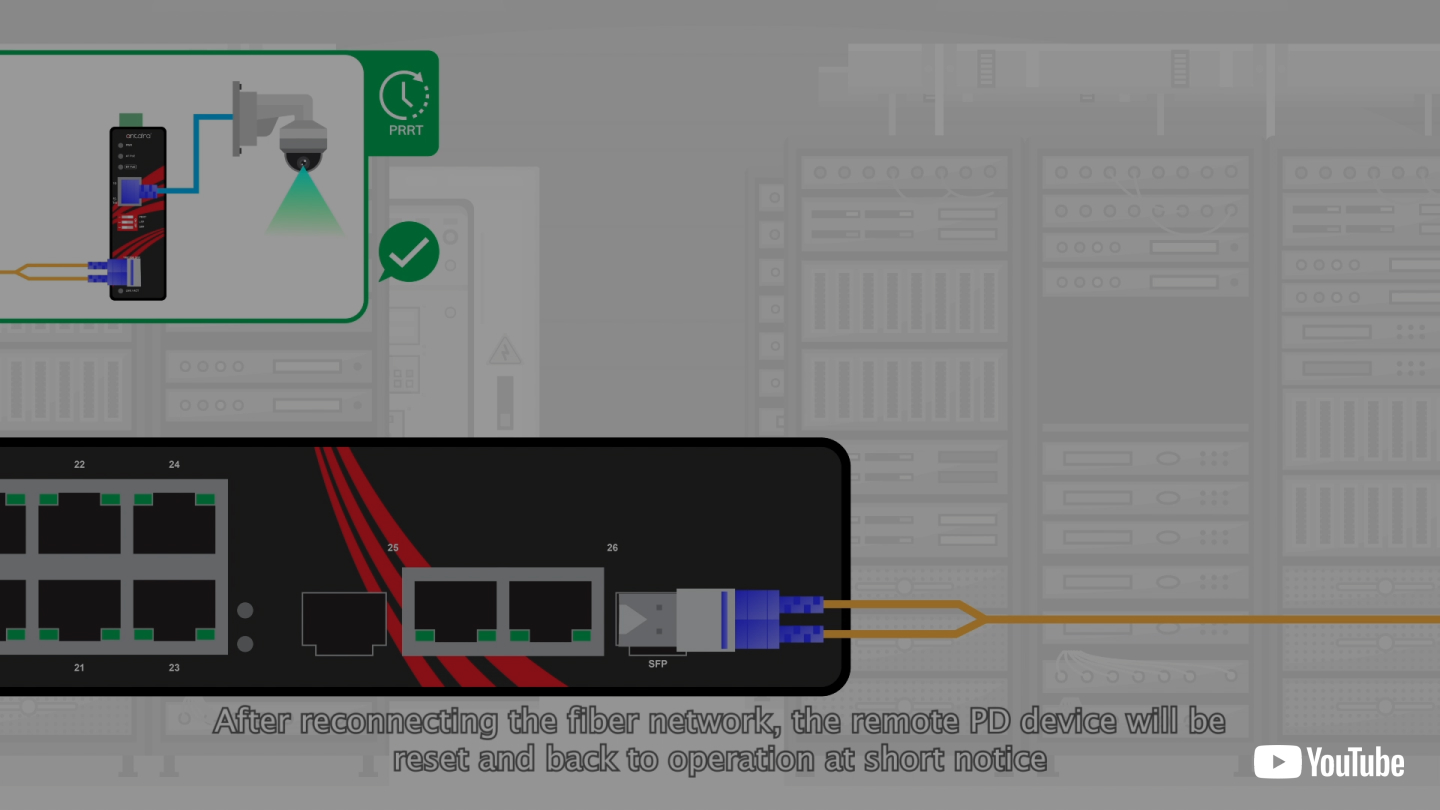

PRRT (Power Remote Reset Technology), is a patented technology that allows the reconnection of the fiber link with Antaira bt PoE product to activate the reset process of the connected PD alongside.
STEP 1
Make sure you have turned on the PRRT function on your Antaira bt PoE product in advance.
STEP 2

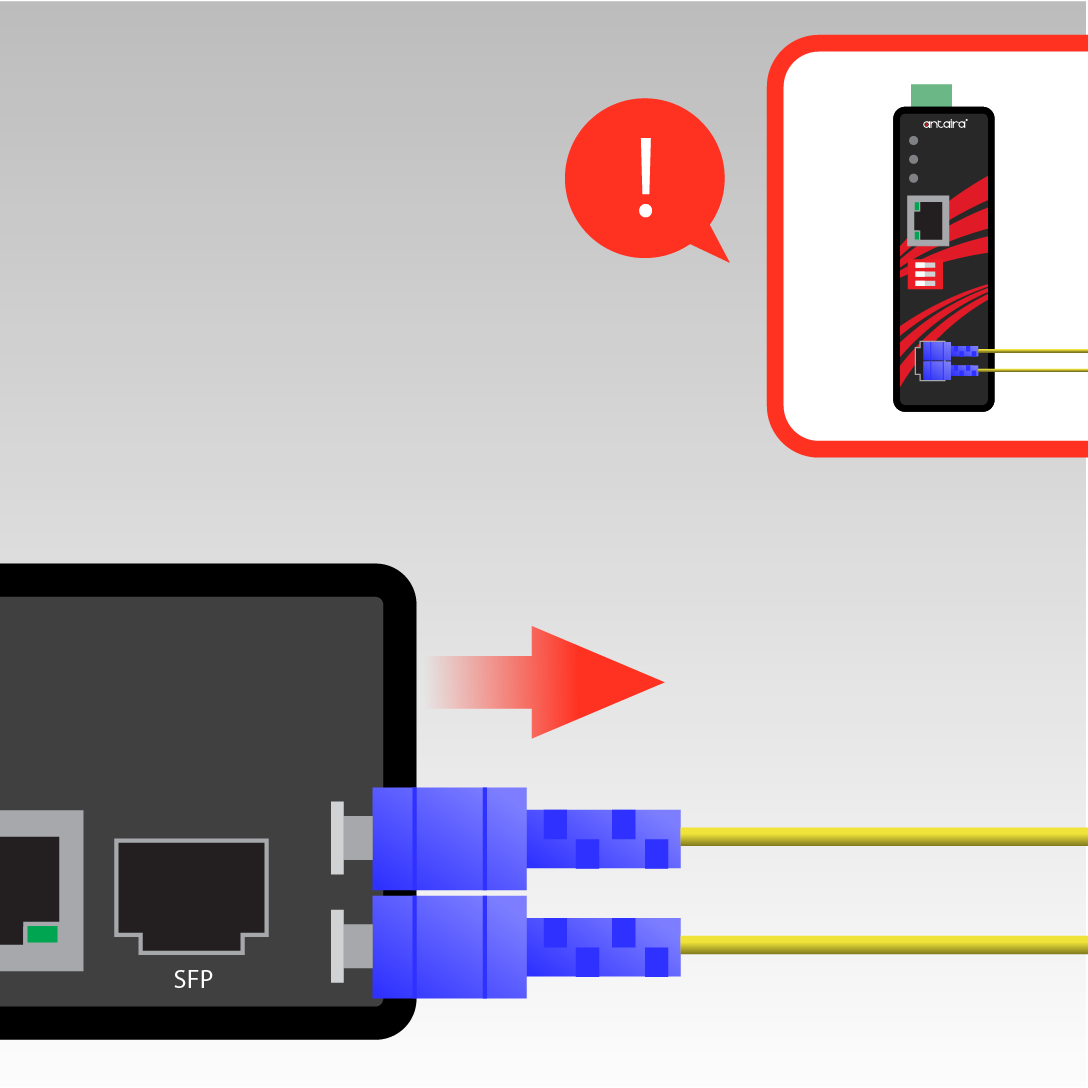

When the remote PD function abnormally, pull out your nearby fiber cable from the Switch connected with Antaira bt PoE product on the other side for the remote PD.
STEP 3

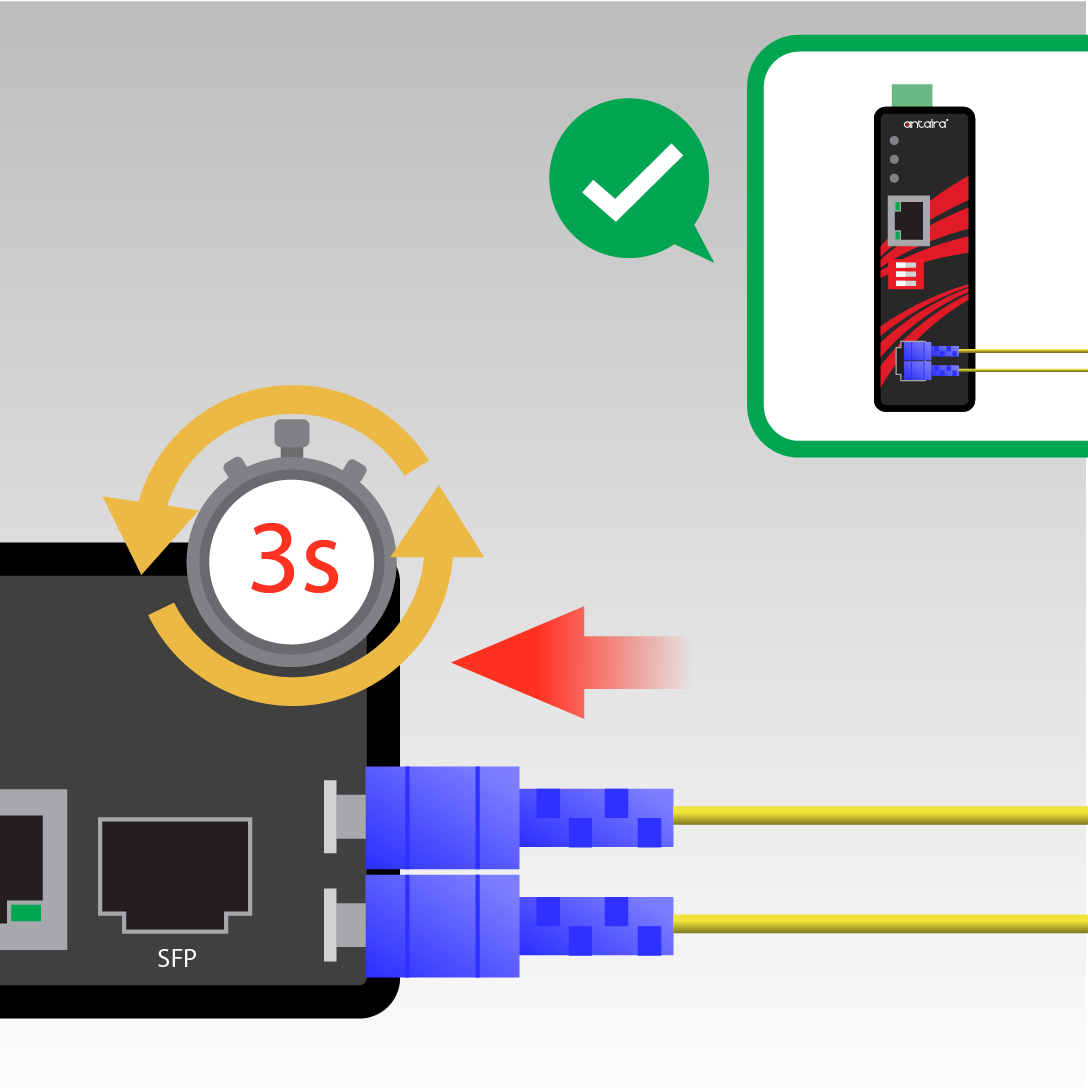

Ｗait for 3 seconds and then reconnect the fiber cable to activate the reset process of the remote PD.
Article

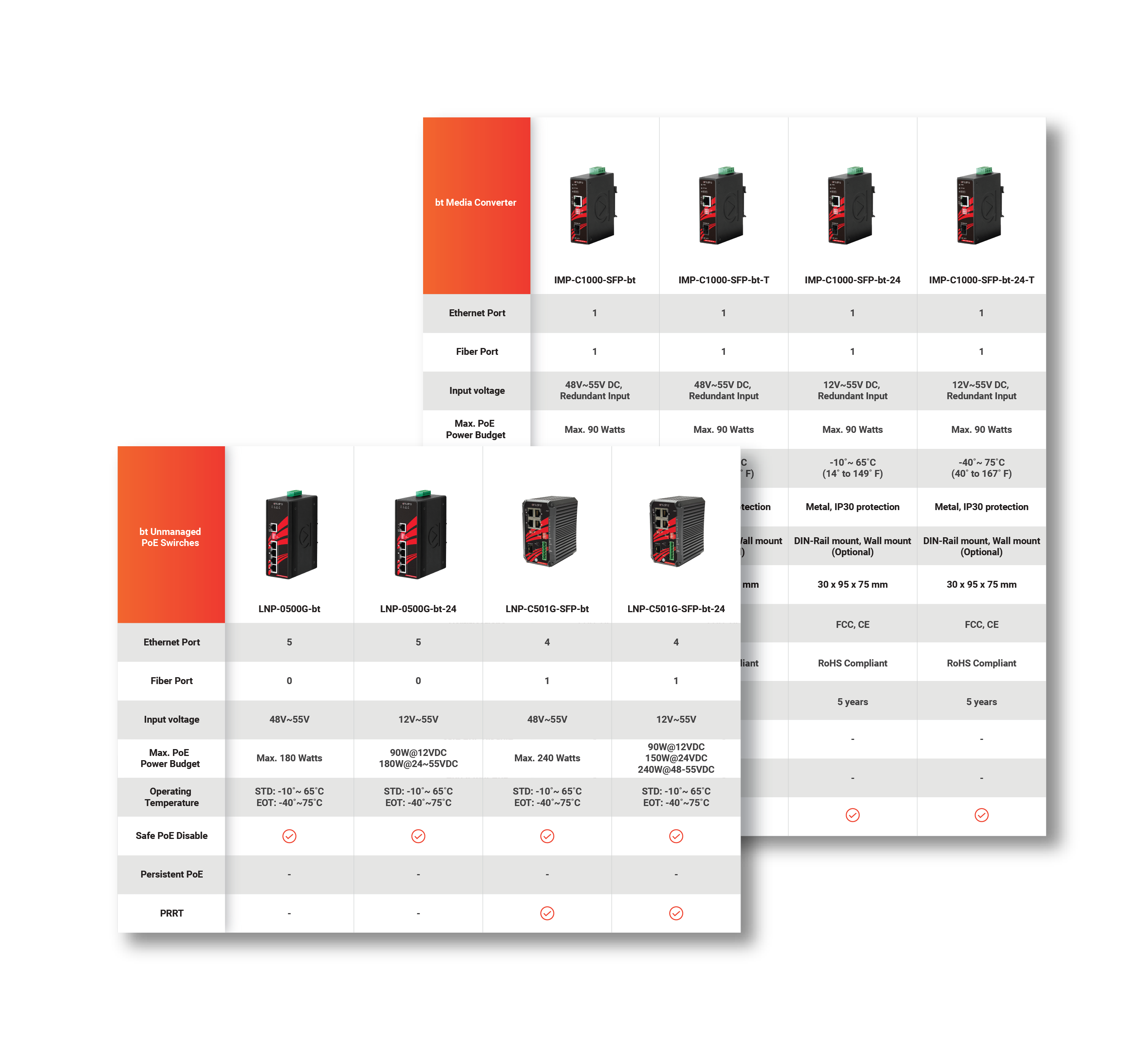

PRRT Product Portfolios
See what Antaira bt PoE products are equipped with PRRT and learn the difference among these products.
Learn more
IMP-C1000-SFP-bt Series
Compact Industrial Gigabit IEEE 802.3bt Ethernet-to-Fiber Media Converter
- 1-Port 10/100/1000Tx RJ45 with IEEE 802.3bt Compliant PoE
- 1-Port 100/1000Fx SFP Slot
- Link Fault Pass-Through (LFP) Function Support
- Operating Temperature Range
IMP-C1000-SFP-bt (STD: -10° to 65°)
IMP-C1000-SFP-bt-T (EOT: -40° to 75°C)
- 5-Year Warranty

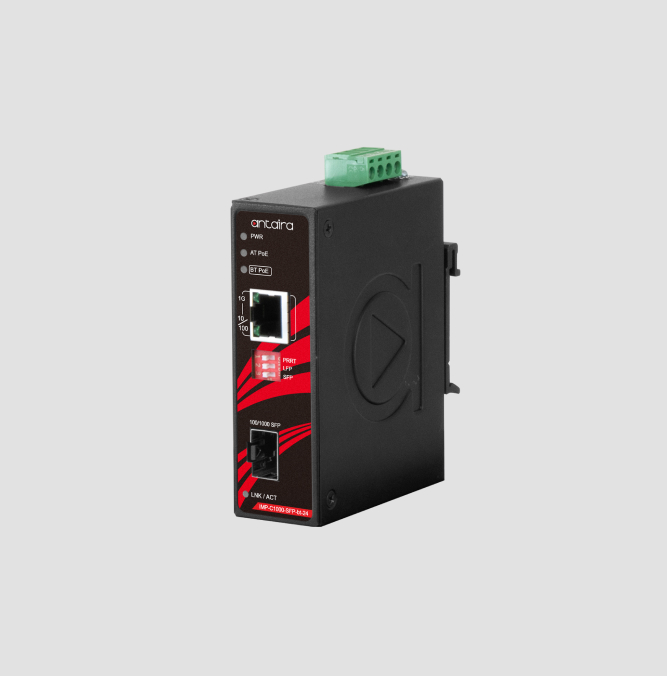

IMP-C1000-SFP-bt-24 Series
Compact Industrial Gigabit IEEE 802.3bt Ethernet-to-Fiber Media Converter
- 1-Port 10/100/1000Tx RJ45 with IEEE 802.3bt Compliant PoE
- 1-Port 100/1000Fx SFP Slot
- Power Input: 12~55VDC in 4-Pin Terminal Block
- Link Fault Pass-Through (LFP) Function Support
- PD Remote Reset Technology (PRRT) Function Support
- Operating Temperature Range
IMP-C1000-SFP-bt-24 (STD: -10° to 65°)
IMP-C1000-SFP-bt-24-T (EOT: -40° to 75°C)
- 5-Year Warranty

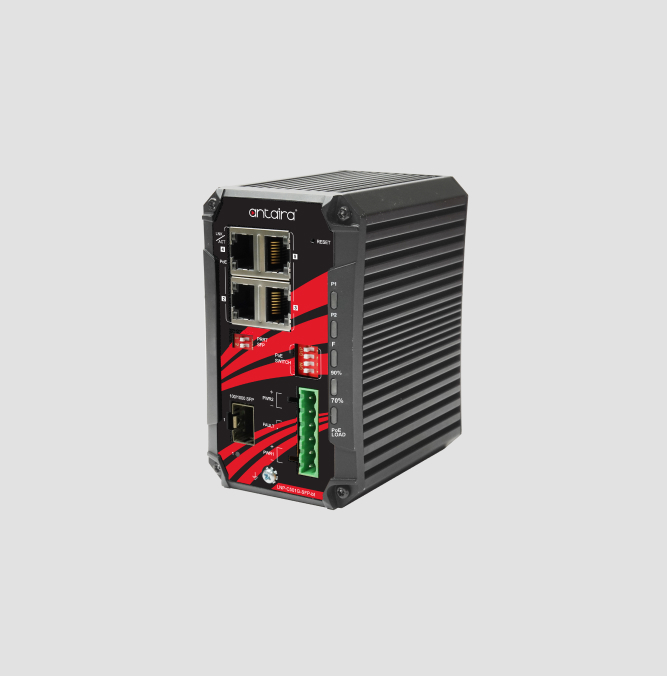

LNP-C501G-SFP-bt Series
5-Port Industrial Compact Gigabit IEEE 802.3bt PoE++ Unmanaged Ethernet Switch
- 4*10/100/1000Tx IEEE 802.3bt Compliant with 90W/Port and 1*100/1000 SFP Slots
- PD Remote Reset Technology (PRRT) Function Support
- Safe PoE Disable Function Support
- SFP Speed Control by Dip Switch
- Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
- Operating Temperature Range：
LNP-C501G-SFP-bt (STD: -10°C to 65°C)
LNP-C501G-SFP-bt-T (EOT: -40°C to 75°C)
LNP-C501G-SFP-bt-24 Series
5-Port Industrial Compact Gigabit IEEE 802.3bt PoE++ Unmanaged Ethernet Switch
- 4*10/100/1000Tx IEEE 802.3bt Compliant with 90W/Port and 1*100/1000 SFP Slots
- Redundant Power Input Design: 12~55VDC
- PD Remote Reset Technology (PRRT) Function Support
- Safe PoE Disable Function Support
- SFP Speed Control by Dip Switch
- Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
- Operating Temperature Range：
LNP-C501G-SFP-bt-24 (STD: -10°C to 65°C)
LNP-C501G-SFP-bt-24-T (EOT: -40°C to 75°C)
