E-Mark Certified
Guaranteed Safety for In-Vehicle Network

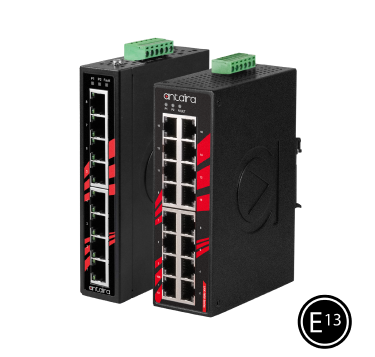

E-Mark Certified Ethernet Switches facilitate more in-vehicle network deployments
With the increasing demand for E-Mark certified products not only for the EU but also the Middle East and African markets, Antaira develops a wide array of E-Mark certified Ethernet Switches. This series are E13 certified. Supporting 12/24 low voltage
input and designed in slim metal casing, Antaira E-Marked Ethernet Switches are perfect solutions for easy network deployment in various vehicular environments.
User Benefits
E-Mark E13 Certified
Allows you access to the EU, the Middle East and Africa markets, who are also requiring E-Mark Certificate for their projects.
12/24V Low Voltage Input Support
Ideal low voltage input support solution for various vehicular environments
Easy Deployment
30% slimmer to easily fit into space-limited cabinets
Cost-Effective Wiring Solution
Up to 16 port density to reduce the installation space and effort for connecting with large amounts of networking devices

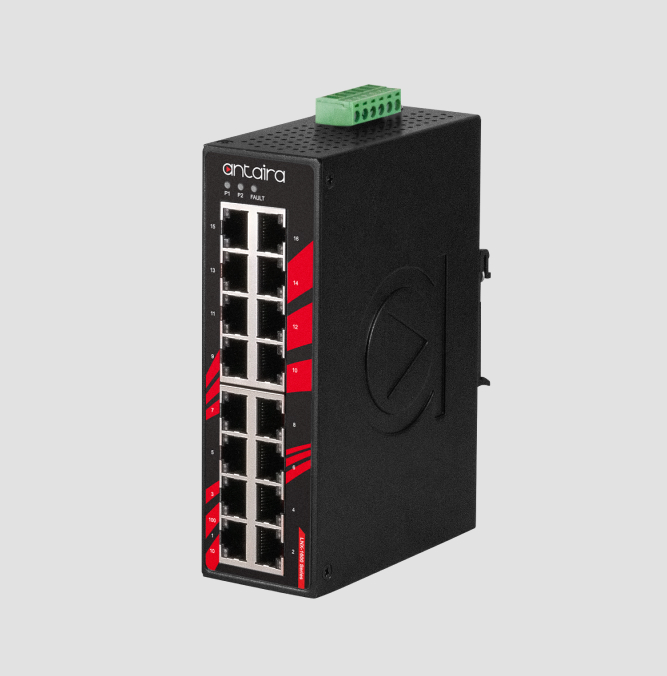

LNX-1600-E Series
16-Port Industrial Unmanaged Ethernet Switch
- E-Mark certified for vehicle applications
- Supports 16*10/100Tx Fast Ethernet
- Store and Forward Switching Architecture
- Redundant Power Input Design: 12~48VDC
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support
- Operating Temperature Range:
LNX-1600-E (STD: -10° to 65°C)
LNX-1600-E-T (EOT: -40° to 75°C)
- 5-Year Warranty

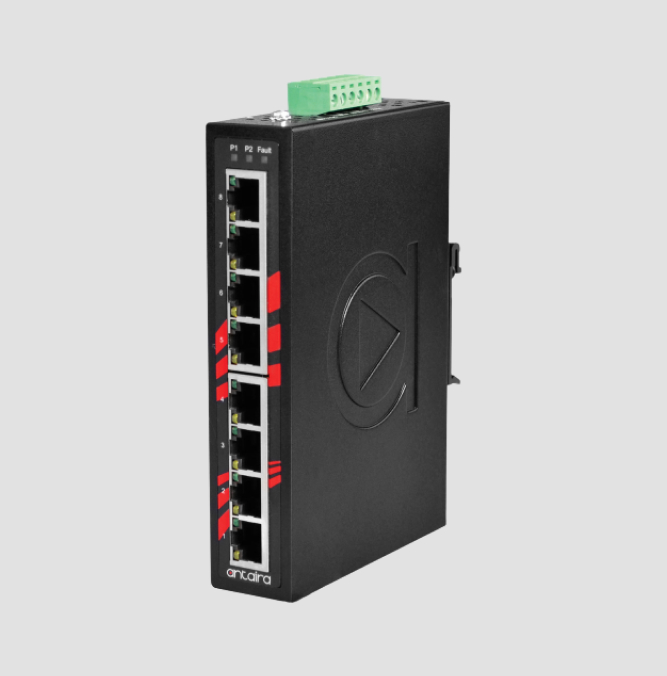

LNX-800A-E Series
8-Port Industrial Unmanaged Ethernet Switches
- E-Mark certified for vehicle applications
- Supports 8-Port 10/100Tx RJ45 Fast Ethernet
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- Redundant Power Input Design: 12~48VDC
- Power Polarity Reserve Protect
- Overload Current Resettable Fuse Present
- Built-in 1 Relay Output for Fault Alarm
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support
- Operating Temperature Range:
LNX-800A-E (STD: -10° to 70°C)
LNX-800A-E-T (EOT: -40° to 75°C)
- 5-Year Warranty

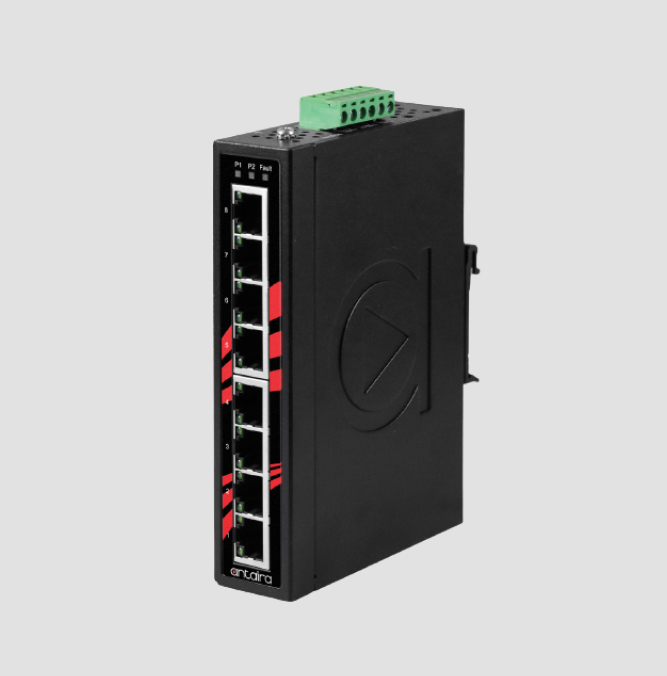

LNX-800AG-E
8-Port Industrial Gigabit Unmanaged Ethernet Switches
- E-Mark certified for vehicle applications
- Supports 8-Port 10/100/1000Tx Gigabit Ethernet
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 16Gbps Back-Plane (Switching Fabric)
- 8K MAC Address Table
- Redundant Power Input Design: 12~48VDC
- Built-in 1 Relay Output for Power Failure Warning
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support
- Operating Temperature Range
LNX-800AG-E (STD: -10°C to 70°C)
LNX-800AG-E-T (EOT: -40°C to 75°C )
- 5-Year Warranty
Request Information
