Connect for Train Networks
Accommodating the universality of the railway infrastructure, multiple railway systems are deployed to provide safe and pleasurable passenger experience. Antaira provides a wide variety of Railway Ethernet Switches to ensure a stable & smooth rail operation
from onboard to wayside.
Benefits
Full Gigabit & 10G SFP for Railway Applications
The Antaira Rail-Certified Ethernet Switches come with full gigabit and 10G SFP models to provide data communication in backbone network and train control network systems.
Industry Certificates for Railway Applications
Antaira’s Rail-Certified Ethernet Switches meet EN 50155 and EN 50121-4 standards.
Bypass & Redundancy
The switches support redundancy with both hardware bypass and network redundancy including STP, RSTP and ERPS.
Solution
Optimized Railway Operation with Reliable and Real-Time Data Communication
To provide an effective means of transporting large populations safely and in a timely manner to their destinations, extensive data collection that is accurate, reliable and real-time is required. Therefore, the most critical component of a passenger rail’s
automated system is its industrial networking infrastructure or backbone.
Learn more

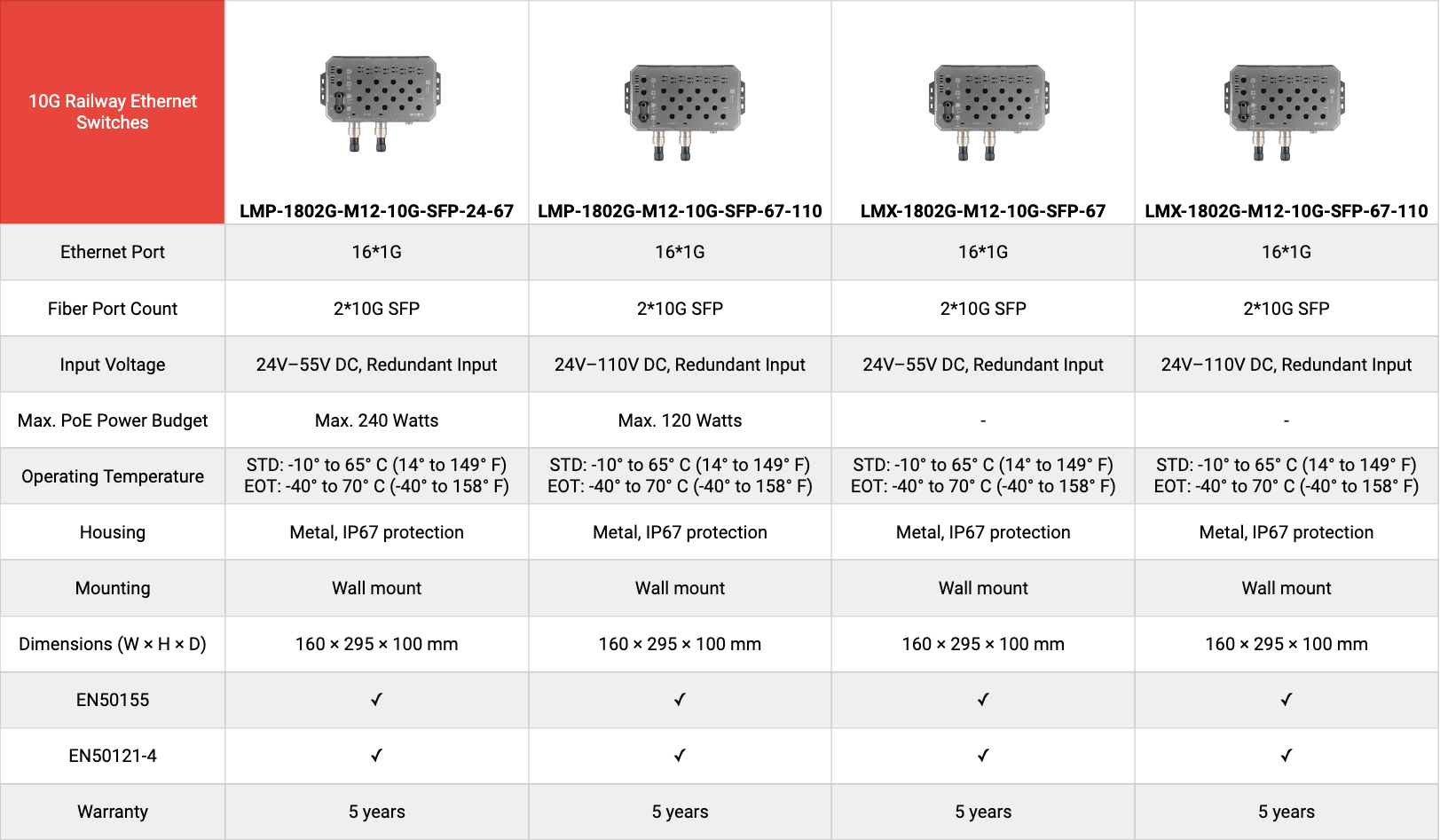

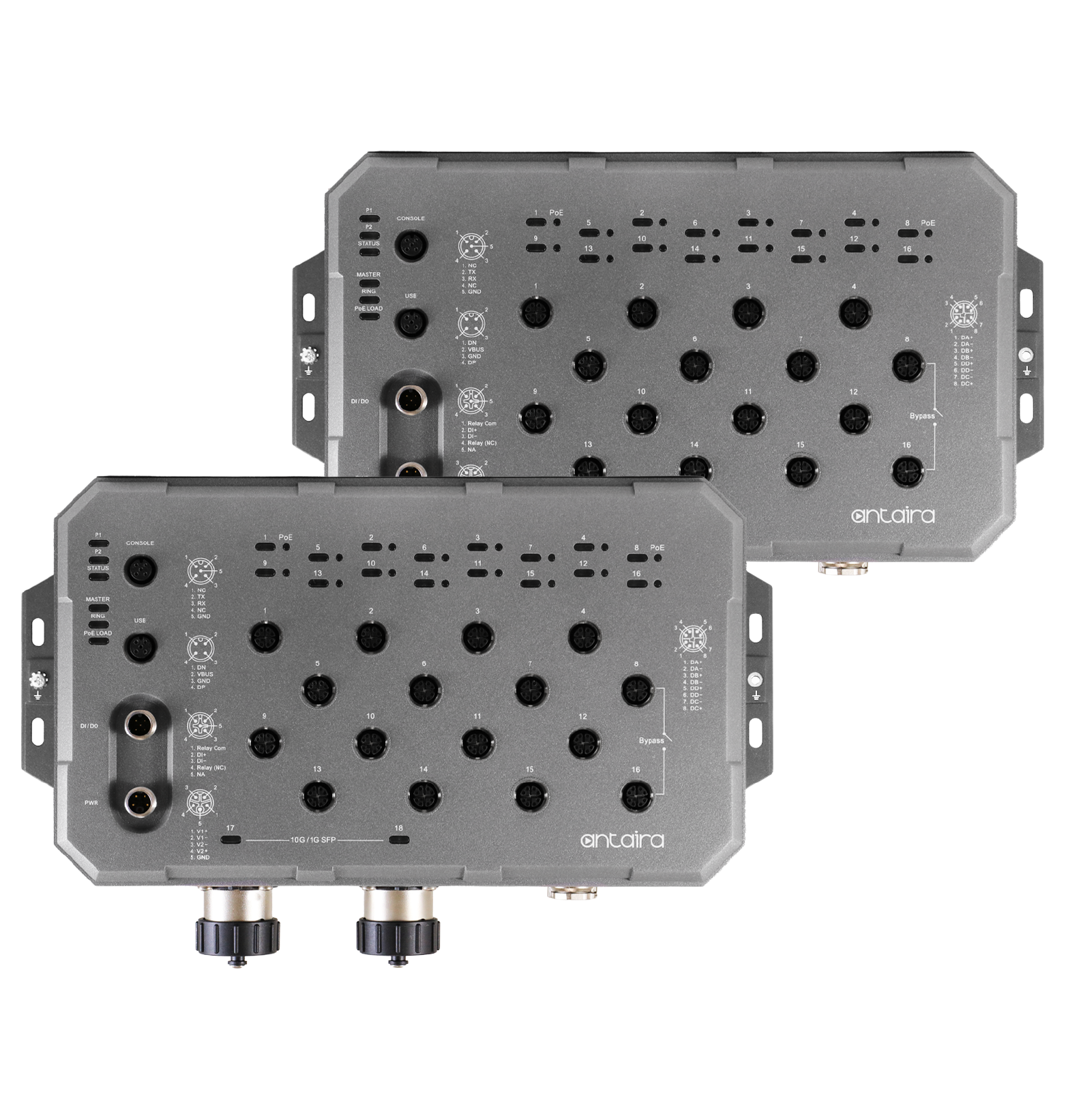

LMP-1802G-M12-10G-SFP-67 Series
18-Port Industrial M12 IP67 Waterproof Gigabit PoE+ Light Layer 3 Managed Ethernet Switches
Learn more
- 16-Port 10/100/1000Base-T(X) Ethernet with IEEE 802.3af/at compliant (30W/Port)
- 2-Port 1G/10G SFP Slots
- Multi-user account for security
- Bypass design for Daisy Chain Redundancy
- Configuration: http, https, CLI Command, Telnet, SNMP, SSH
- Network redundancy support: G.8032 ERPS v2 / STP / RSTP / MSTP
- Supports Static routes for routing function
- Supports RADIUS, TACACS+ authentication protocol
- Supports QoS, LACP bandwidth control
- Supports VLAN, SNMP v1/v2c/v3, ACL, IP source guard for Ethernet security
- PoE ping alarm function for PoE ports power recycle
- Redundant power inputs design
- 5-Year Warranty

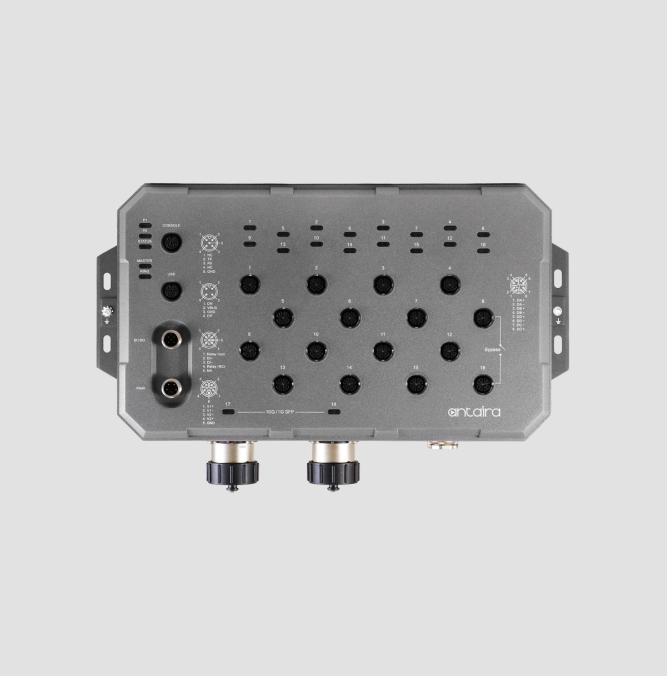

LMX-1802G-M12-10G-SFP-67 Series
18-Port Industrial M12 IP67 Waterproof Gigabit Light Layer 3 Managed Ethernet Switches
Learn more
- 16-Port 10/100/1000Base-T(X) Ethernet
- 2-Port 1G/10G SFP Slots
- Multi-user account for security
- Bypass design for Daisy Chain Redundancy
- Configuration: http, https, CLI Command, Telnet, SNMP, SSH
- Network redundancy support: G.8032 ERPS v2 / STP / RSTP / MSTP

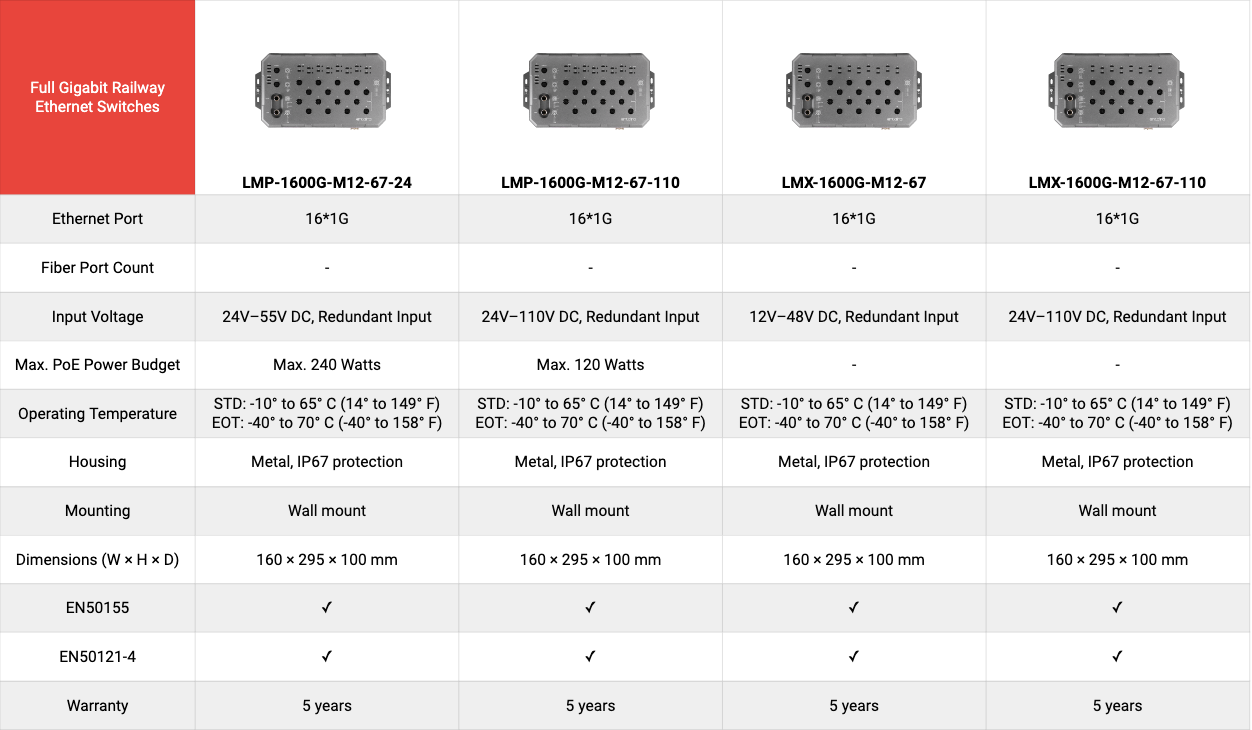

LMP-1600G-M12-67 Series
16-Port Industrial M12 IP67 Waterproof Gigabit PoE+ Light Layer 3 Managed Ethernet Switches
Learn more
- 16-Port 10/100/1000Base-T(X) Ethernet with IEEE 802.3af/at compliant (30W/Port)
- Multi-user account for security
- Bypass design for Daisy Chain Redundancy
- Configuration: http, https, CLI Command, Telnet, SNMP, SSH
- Network redundancy support: G.8032 ERPS v2 / STP / RSTP / MSTP
- Supports Static routes for routing function
- Supports RADIUS, TACACS+ authentication protocol
LMX-1600G-M12-67 Series
16-Port Industrial M12 IP67 Waterproof Gigabit Light Layer 3 Managed Ethernet Switches
Learn more
- 16-Port 10/100/1000Base-T(X) Ethernet
- Multi-user account for security
- Bypass design for Daisy Chain Redundancy
- Configuration: http, https, CLI Command, Telnet, SNMP, SSH
- Network redundancy support: G.8032 ERPS v2 / STP / RSTP / MSTP
- Supports Static routes for routing function
- Supports RADIUS, TACACS+ authentication protocol
- Supports QoS, LACP bandwidth control
- Supports VLAN, SNMP v1/v2c/v3, ACL, IP source guard for Ethernet security
- Redundant power inputs design
- 5-Year Warranty
