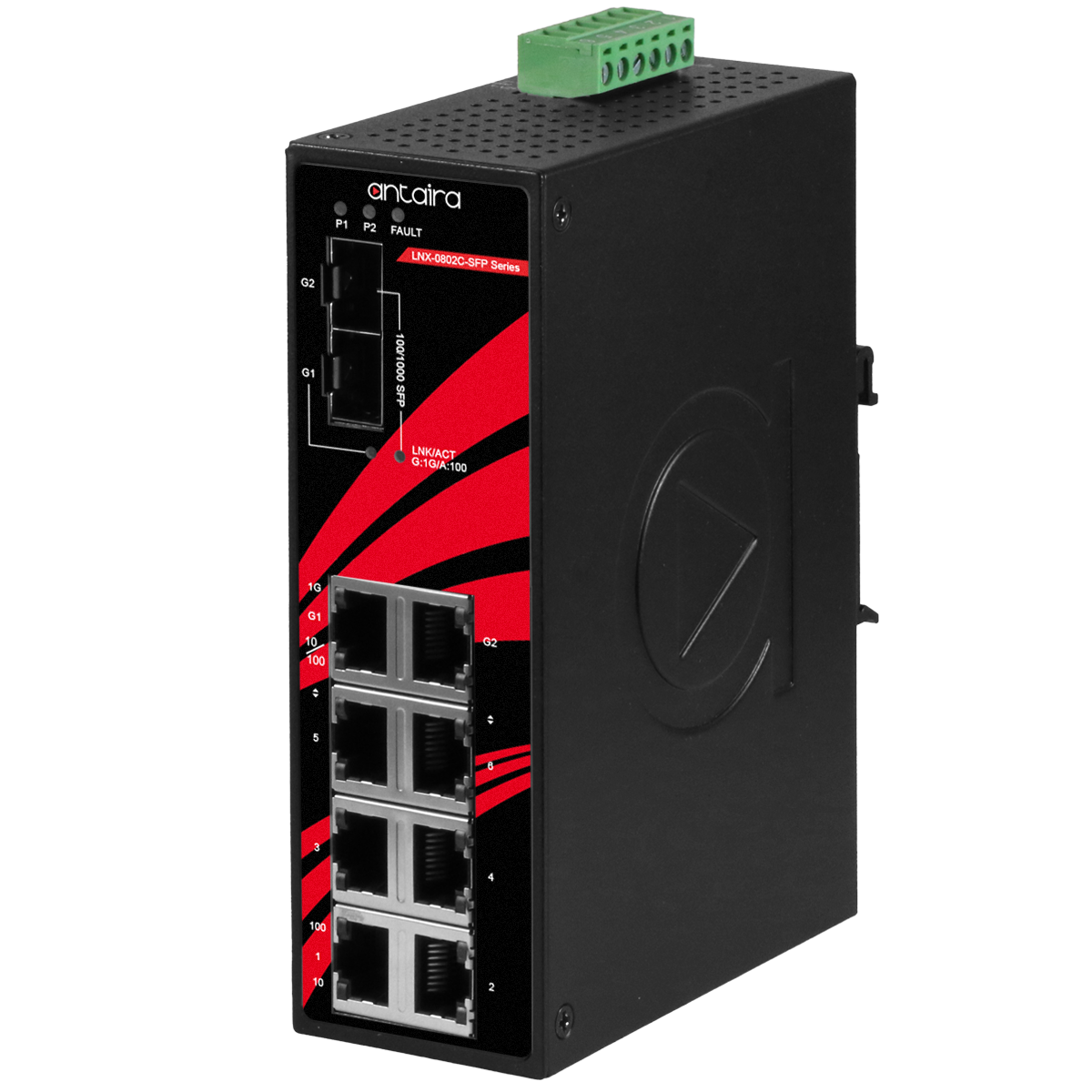

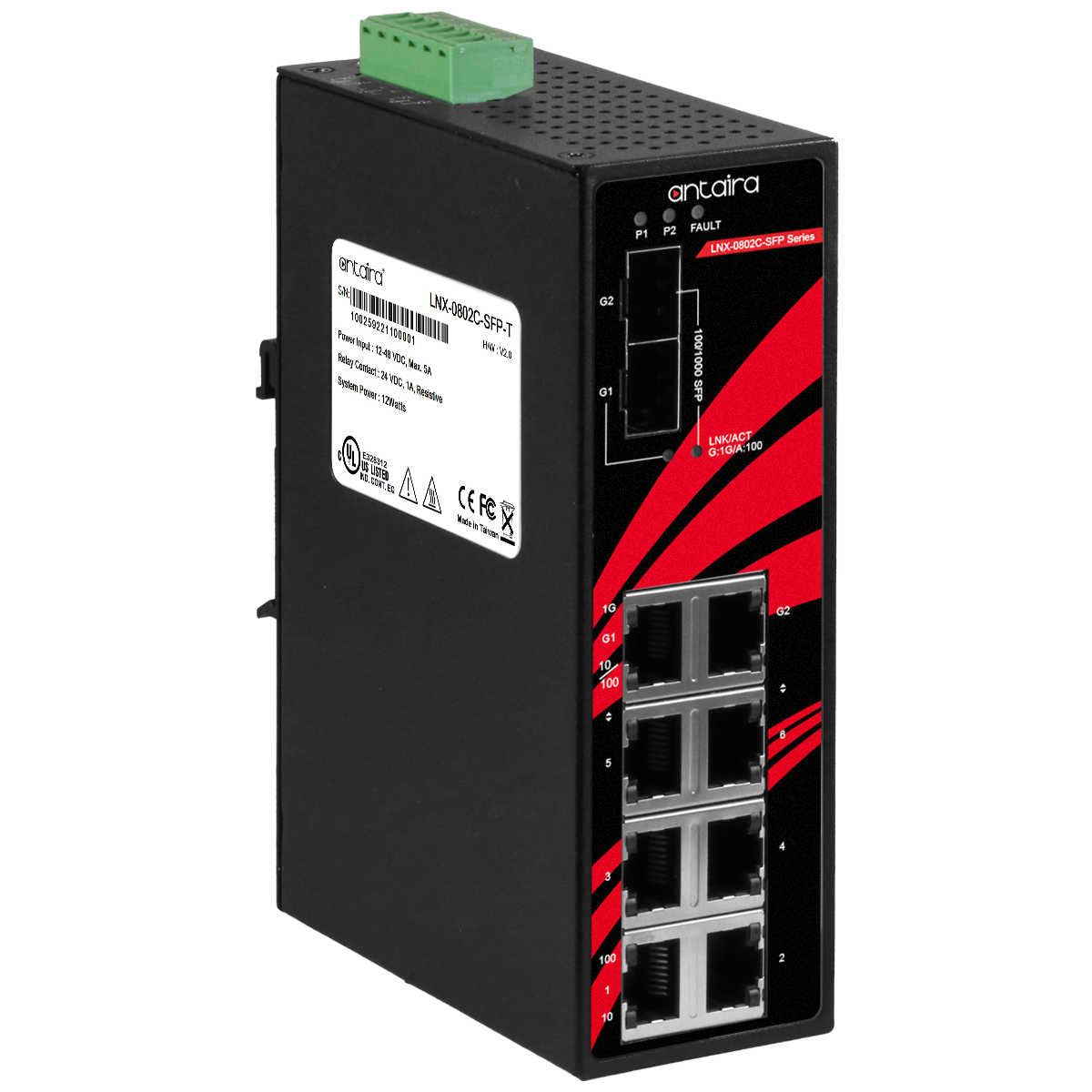

LNX-0802C-SFP-T
8-Port Industrial Unmanaged Ethernet Switch, w/6*10/100Tx + 2*Gigabit Combo Ports (2*10/100/100 RJ45, 2*100/1000 SFP). EOT: -40° ~ 75°C
Product WarrantySee details >
0%
Introduction
Antaira’s LNX-0802C-SFP-T industrial gigabit unmanaged Ethernet switch is IP30 rated and DIN-Rail mountable. Each unit is designed with six 10/100Tx Fast Ethernet ports and two gigabit combo ports with two 10/100/1000 fast Ethernet ports or two dual rate (100/1000) SFP slots, making it ideal for applications that demand high bandwidth and long distance communication. This model provides high EFT and ESD protection to prevent any unregulated voltage and the dual power input as redundancy feature with reverse polarity protection. In addition, the built-in relay warning function alerts maintainers when power failures occur. It supports operating temperature from -10° to 70°C. It is a perfectly designed product to fulfill special needs within industrial automation, outdoor applications and harsh weather environments.
Features
- Supports 6-Port 10/100Tx and 2*Gigabit Combo Ports (2*10/100/1000Tx RJ45, and 2*100/1000 SFP Slots)
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 8K MAC Address Table
- Surge Protection: 2,000 VDC Support
- ESD Protection: 6,000 VDC Support
- Redundant Power Input Design: 12~48VDC
- Built-in 1 Relay Output for Power Failure Warning
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support
- Operating Temperature Range - EOT: -40° to 75° C
- 5-Year Warranty

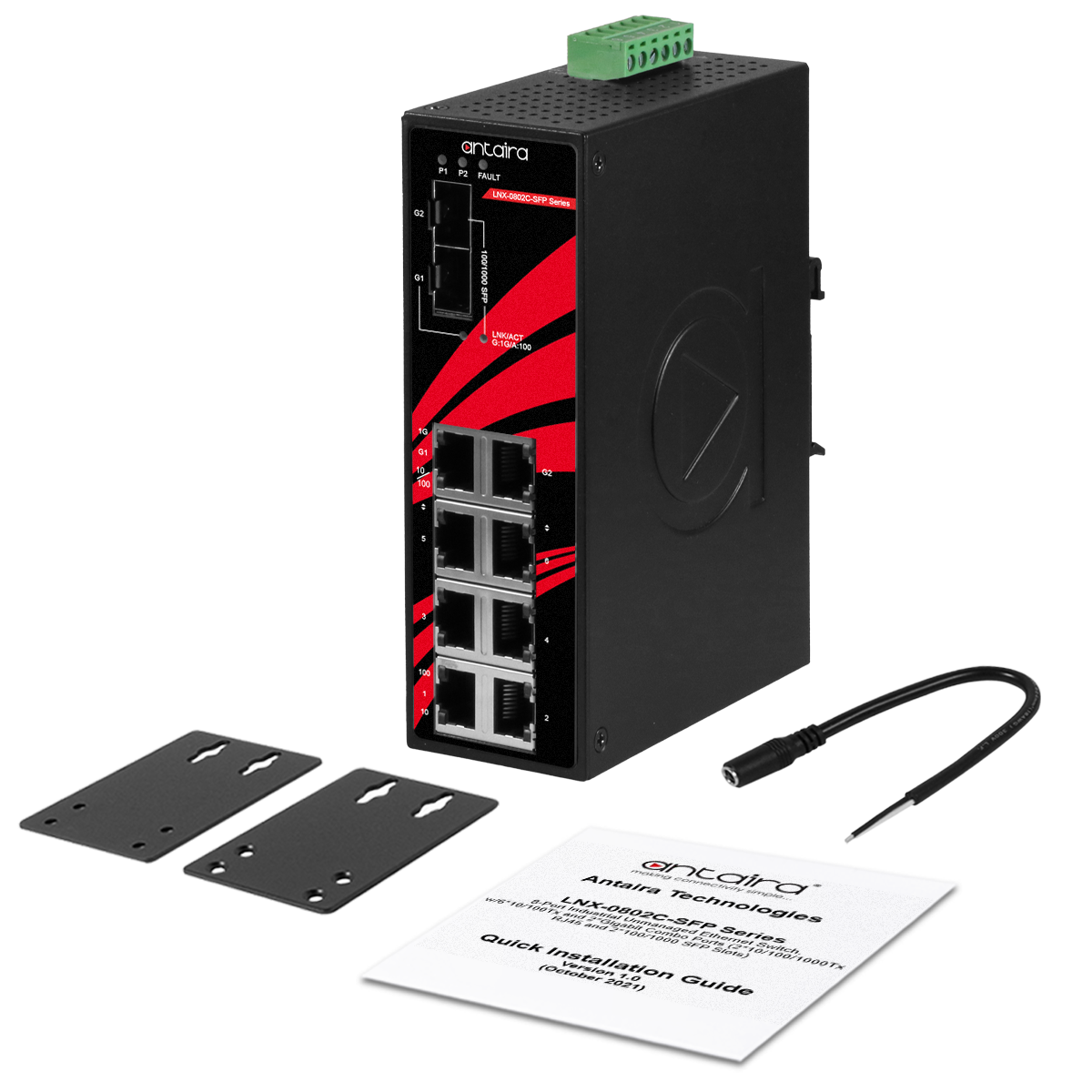

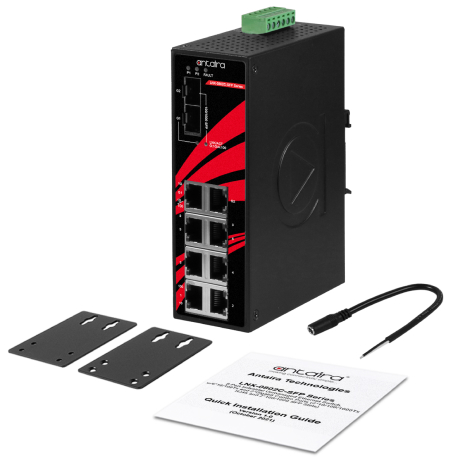

Package Content
- 1 - DC cable –18 AWG & DC jack 5.5x2.1mm
- 1 - LNX-0802C-SFP-T
- 1 - User manual
- 2 - Wall mounting brackets and screws
Optional Accessories
-
- CBF-LC01LC-MD
- LC To LC 1 Meter Multi-Mode Duplex
-
- DIN-RACK-2U
- Din-Rail to 19" Rack Mount Adapter for all Din-Rail Mountable Products, 2U Height
-
- PA-60-48-US
- Power Adapter for LNP & IMP Series. Input 100-240VAC/1.4A, Output 48VDC/1.25A (US Plug)
-
- SFP-M
- 1 Gigabit Fiber SFP Transceiver, Multi Mode 550M / LC / 850nm, 0º~70ºC
-
- SFP-S10
- 1 Gigabit Fiber SFP Transceiver, Single-Mode 10km / LC / 1310nm, 0º~70ºC
-
- CBF-LC01LC-SD
- LC To LC 1 Meter Single-Mode Duplex
Related Resources
PoE, PoE+ and PoE++: Choosing the Right Industrial Ethernet Switch for You
PoE, PoE+ and PoE++: Choosing the Right Industrial Ethernet Switch for You
May 16, 2022
Advanced Industrial Managed Ethernet Switches
Advanced Industrial Managed Ethernet Switches
October 18, 2018
Technology
IEEE Standards
- IEEE 802.3 10Base-T Ethernet
- IEEE 802.3u 100Base-TX Fast Ethernet
- IEEE 802.3ab 1000Base-T Gigabit Ethernet
- IEEE 802.3z 1000Base-X Gigabit Fiber
- IEEE 802.3x Flow Control
- IEEE 802.3az EEE Power Management
Processing Type
Store and Forward
Protocol
CSMA/CD
Flow Control
IEEE 802.3x flow control, back pressure flow control
Performance
MAC Table Size
8K
Jumbo Frame
9.6 Kbytes
Memory Buffer
4Mbits
Transfer Rate
- 14,880pps for Ethernet Port
- 148,800pps for Fast Ethernet Port
- 1,488,000pps for Gigabit Ethernet Port
Switching Architecture
Back-Plane (Switching Fabric): 5.2Gbps
Ethernet Interface
Ethernet Port Count
6 ports
10/100 BASE-T(X)
6 ports
10/100/1000 BASE-T(X)
2 ports
Fiber Interface
Fiber Port Count
2 ports
100/1000 BASE-(F)X SFP
2 ports
Wavelength
Refers to SFP module
Mechanical Characteristics
Housing
Metal, IP30 protection

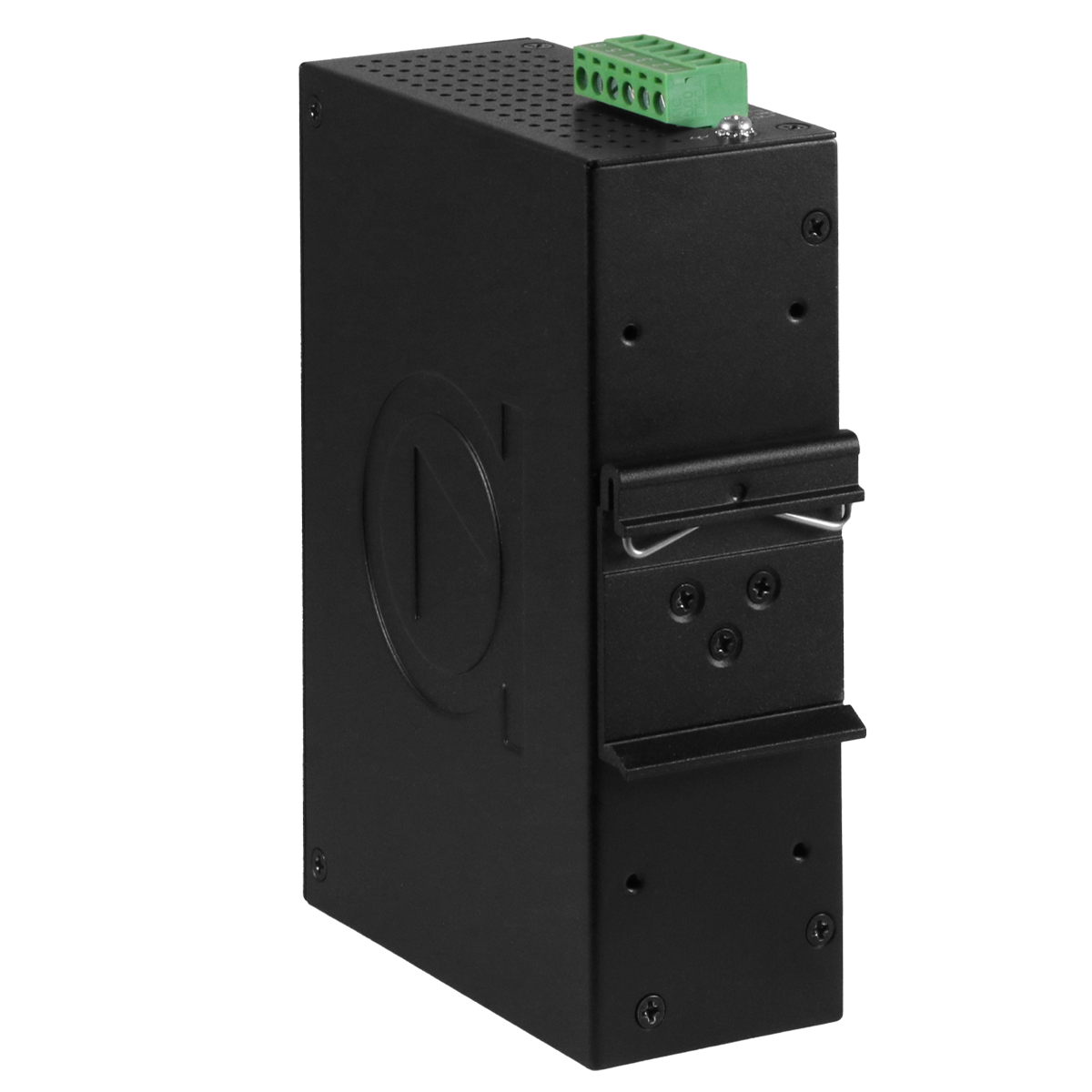

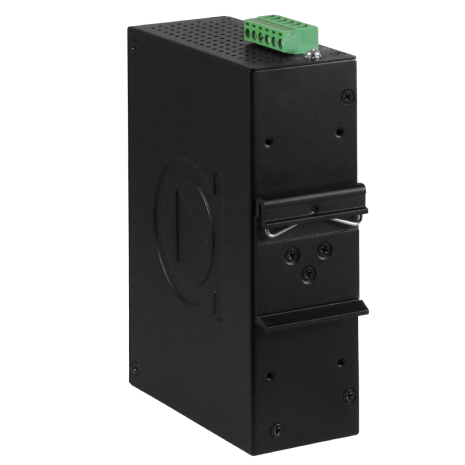

Mounting
DIN-Rail mount, Wall mount (Optional)
Dimensions (W × H × D)
46 × 142 × 99 mm
Weight
- Unit weight : 1.4 lbs
- Shipping: 1.8 lbs
Power Requirements

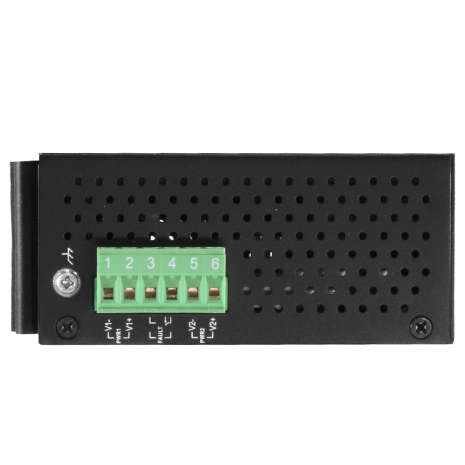

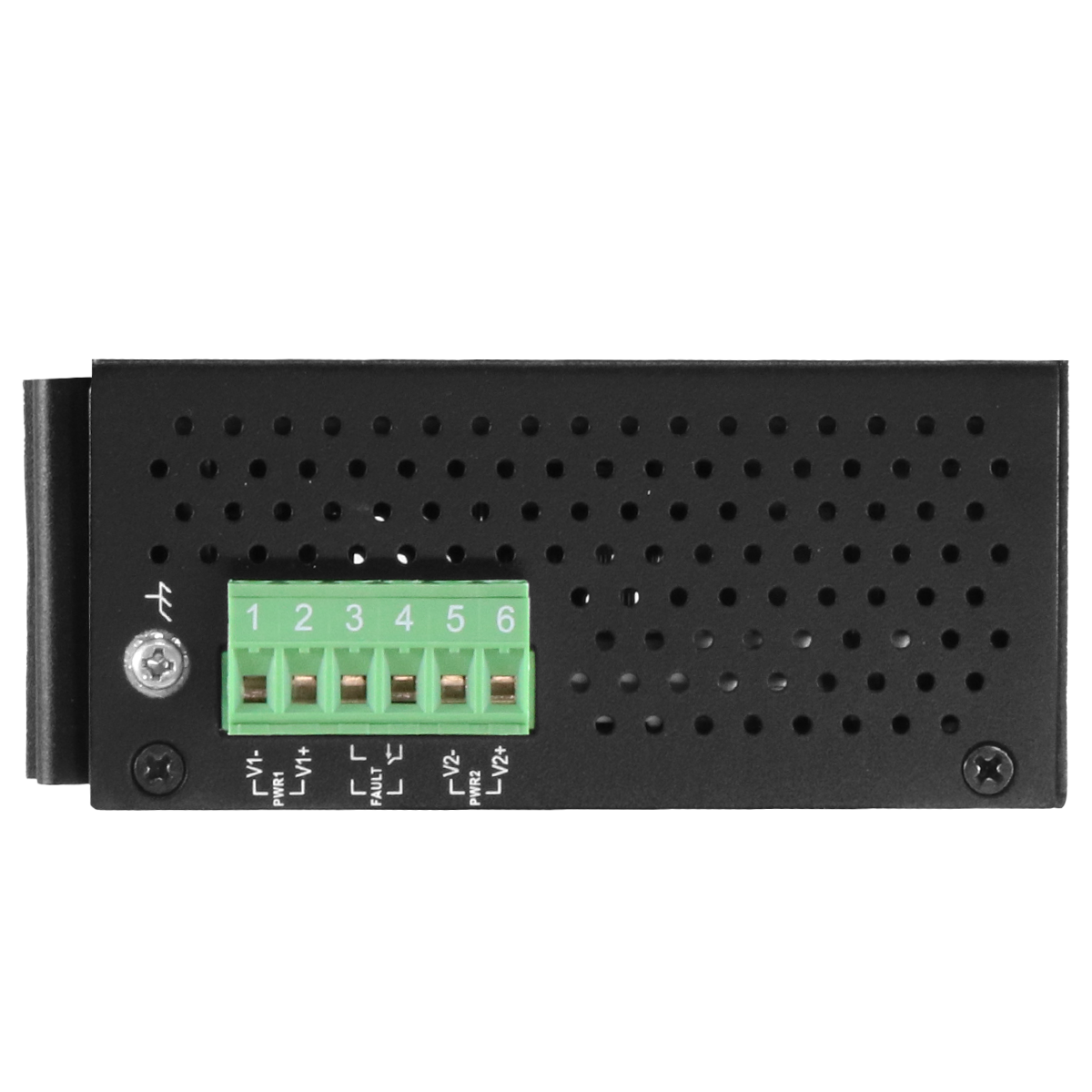

Power Connection
Removable 6-contact terminal block
Input Voltage
12V–48V DC, Redundant Input
Power Redundancy
Yes
Relay Output
24V DC, 1A resistive
System Power Consumption
12 Watts
Overload Current Protection
Present
Reverse Polarity Protection
Present
Environmental Limits
Operating Temperature
-40° to 75° C (-40° to 167° F)
Storage Temperature
-40° to 85° C (-40° to 185° F)
Ambient Relative Humidity
5% to 95% non-condensing
Regulatory Approvals
Certifications
FCC, CE
UL 508
✔
UL 61010-1 / UL 61010-2-201
✔
ISA 12.12.01 (UL C1D2)
✔
EMI
- FCC Part 15 Subpart B Class A
- CE EN 55032 Class A
- EN 61000-6-4 Class A
EMS
- CE EN 55024
- EN 61000-6-2
- IEC61000-4-2 (ESD)
- IEC61000-4-3 (RS)
- IEC61000-4-4 (EFT)
- IEC61000-4-5 (Surge)
- IEC61000-4-6 (CS)
- IEC61000-4-8 (Magnetic Field)
Stability Testing
- Free Fall: IEC60068-2-32
- Shock: IEC60068-2-27
- Vibration: IEC60068-2-6
Green
RoHS Compliant
Warranty
5 years
