FCU-100WB-S4 - 10/100TX to 10/100FX Single Fiber (WDM)

FCU-100WB-S4

10/100TX To 10/100FX Single Fiber (WDM), Single-Mode 40km, TX1550nm - RX1310nm

Certifications

Add to Quote Add to Compare

Overview Specifications

Introduction

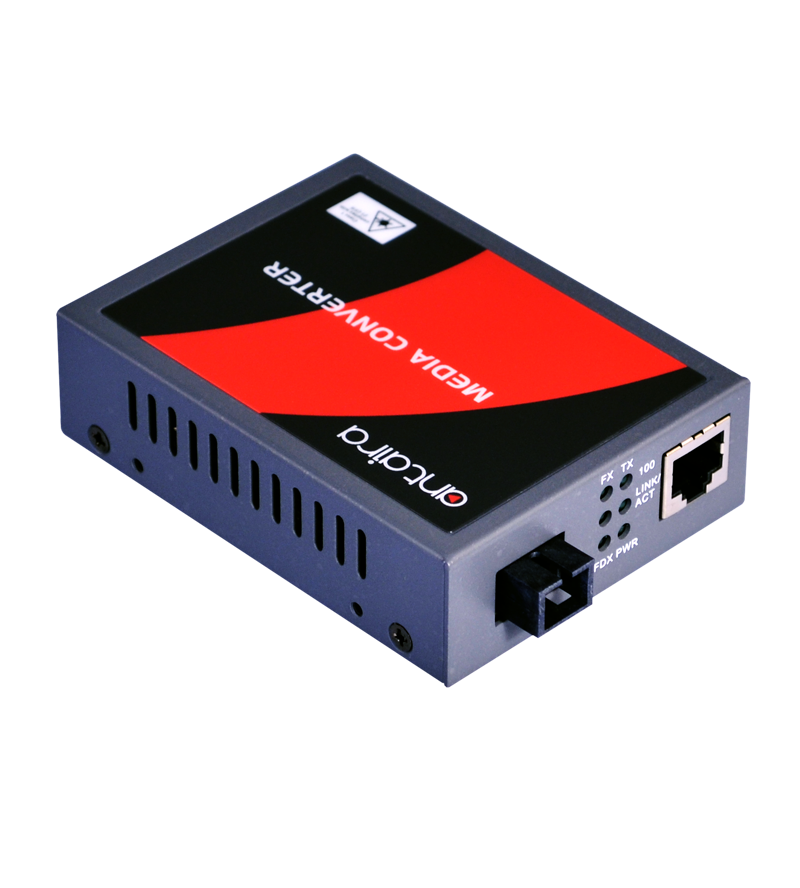

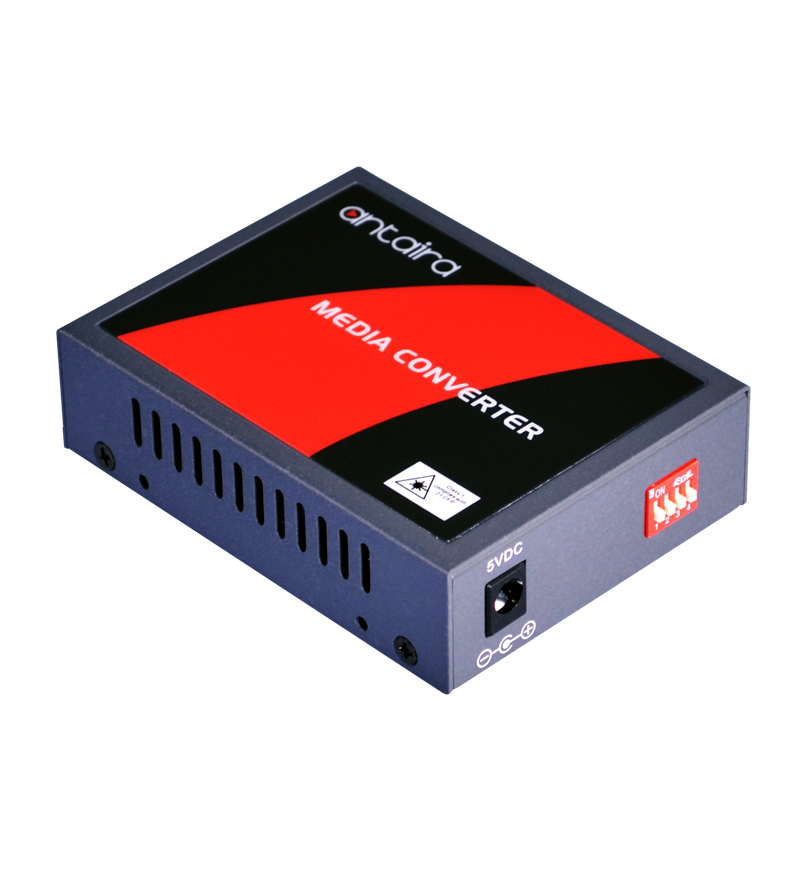

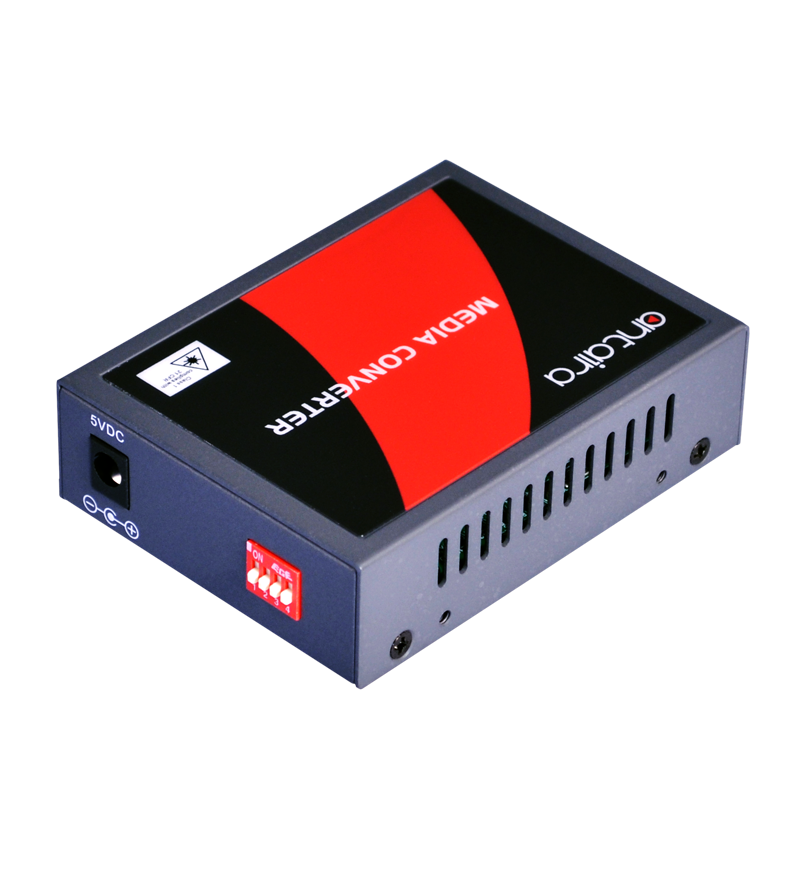

Antaira Technologies FCU-100WB-S4 is a compact fiber to Ethernet media converter housed in a metal case and conforms to the FCC emissions standards. The FCU-100WB-S4 features a singular SC fiber connector as well as the STP-RJ45 Ethernet connector.

The copper media converter is fully compliant with IEEE 802.3 and 802.3u Fast Ethernet standers. The industrial media converter features LED diagnostics for power, activity, link and Full/Half Duplex operations. The FCU-100WB-S4 is a 10/100 multi-mode fiber media converter capable of communication up to 40M. The FCU-100WB-S4 is a WDM rugged media convert with fiber communication on TX1550nm - RX1310nm.

Features

All Converters comply with IEEE 802.3 & 802.3u Fast Ethernet Standards
LED Indication: Power, FDX, TP 100, TP Link/Act, Fiber 100, Fiber Link/AC
10/100Mbps Auto Negotiation
Auto cross over for TP port
Support Link Alarm
Support Switch mode & Pure converter mode
Dual Port 10/100Mbps Switch inside
Metal Case
Voltage supervisor

Package Content

FCU-100WB-S4
Quick Start Guide
External Power Adapter

Download

Optional Accessories

FCU-BK

Wall-Mount Brackets For FCU Modules (1 Pair)
FCU-DIN-RAIL-KIT

Din-Rail Kit for FCU- Modules
FCU-RACK16-AC

16-Slot Unmanaged Universal Media Converter Rack, w/1 AC Power Supply
FCU-RACK16S

16-Slot Unmanaged Universal Media Converter Rack, Compact Size, w/1 AC Power Supply
