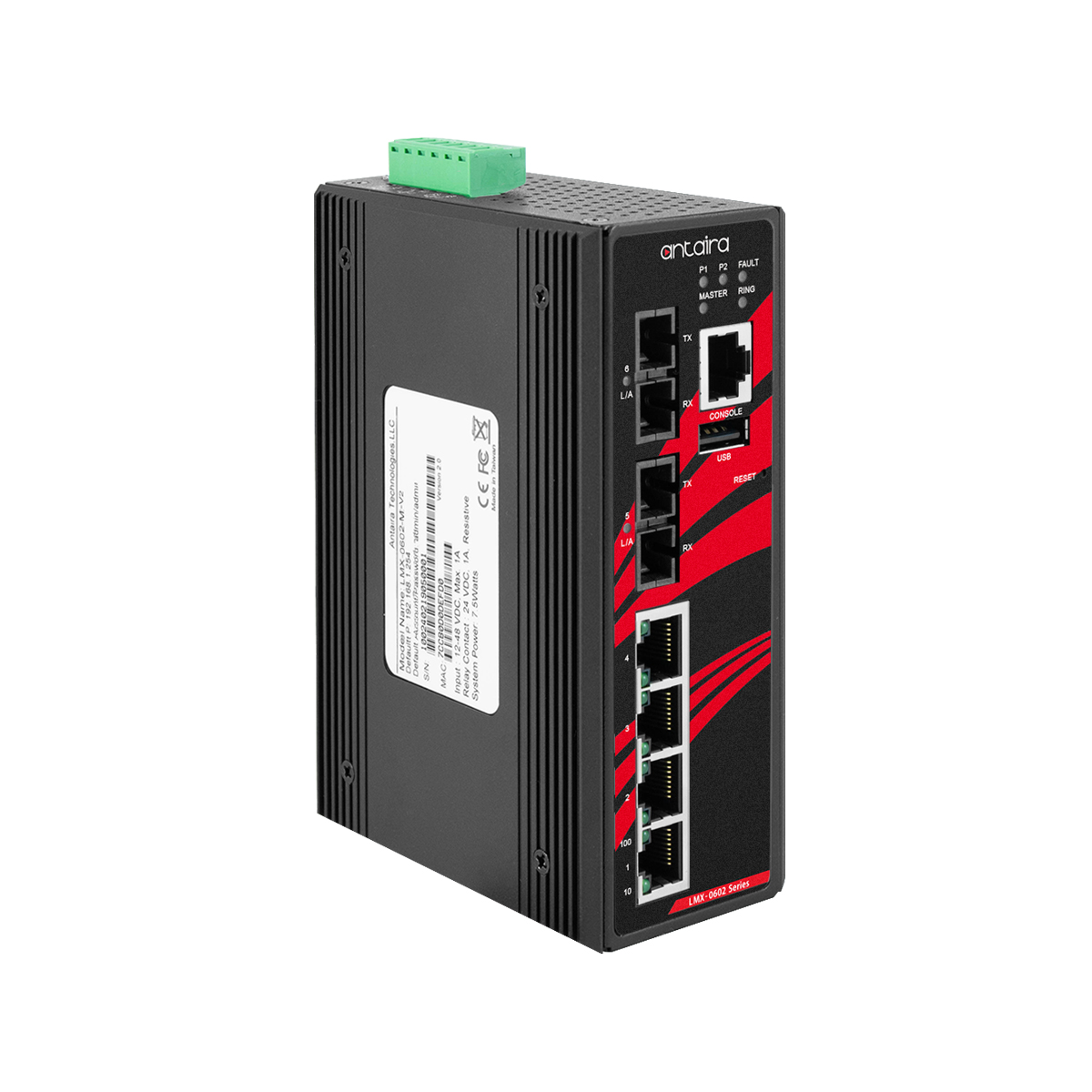

Antaira’s LMX-0602-M is a 6-port industrial managed Ethernet switch that is embedded with 4*10/100Tx fast Ethernet ports and 2*100Fx SC fiber connectors with multi-mode 2Km support. It is a Layer 2 full manageable Ethernet switch pre-loaded with user friendly web management console design. It supports Ring Network Redundancy function with market open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol <50ms network recovery time. The advanced network Filtering and Security functions, IGMP, VLAN, QoS, SNMP, Port lock, RMON, ModbusTCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control network.

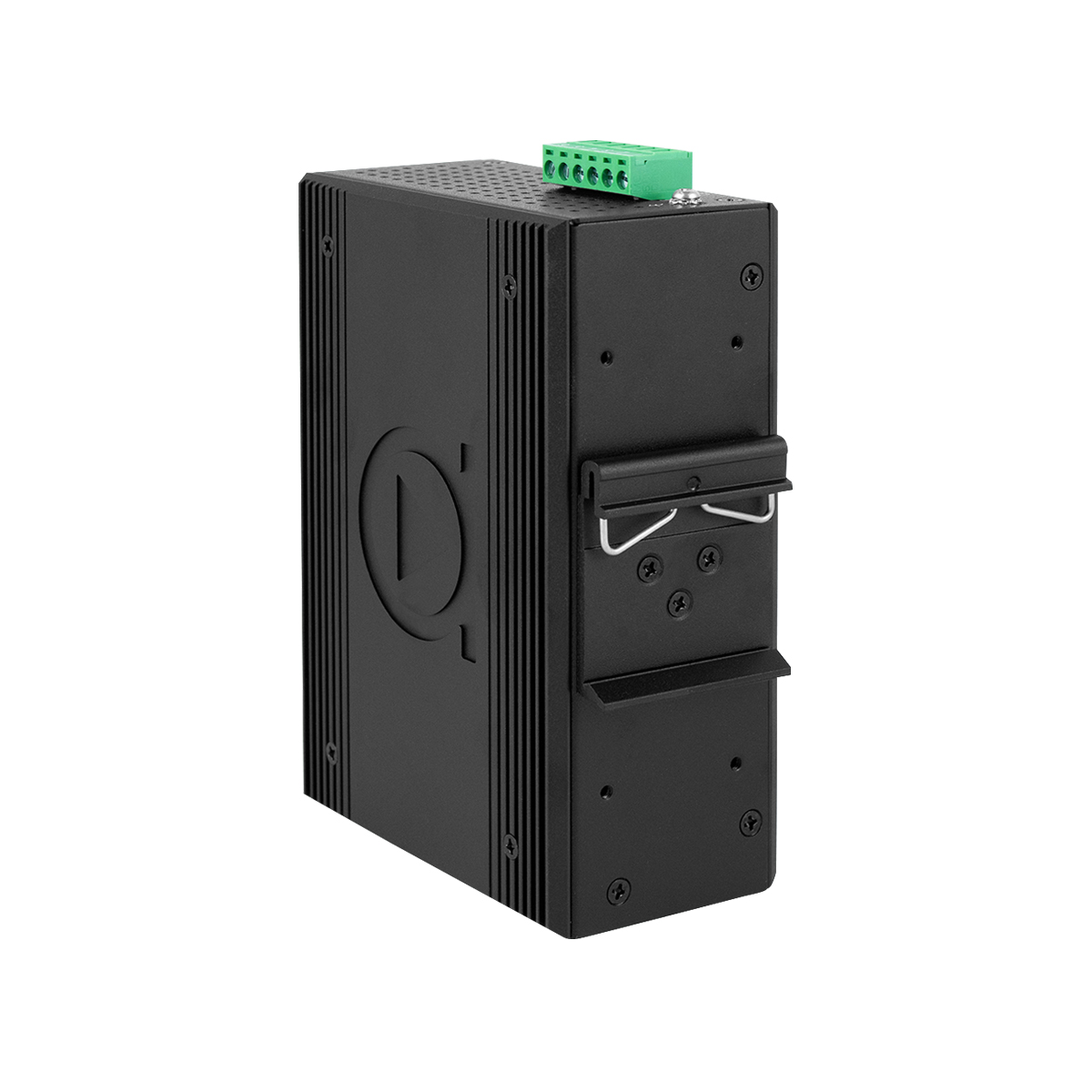

The LMX-0602-M is a high performance industrial managed Ethernet switch with a compact size, IP30 rating, DIN-rail or wall mounting design, and standard operating temperature range from -10°C to 70°C. It provides high EFT and ESD protection for any industrial networking applications within Power/Utility, Water Wastewater, Oil/Gas/Mining, Factory Automation, ITS-Transportation, Security Surveillance and any other outdoor or harsh environment.
- 4*10/100Tx RJ45 Ports and 2*100Fx SC Fiber Ports with Multi-Mode 2Km
- Supports Network Redundancy: STP/RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
- Supports IPv4/IPv6, and DHCP Option 66/67/82
- Supports Modbus/TCP Protocol for Device Management and Monitoring
- Configuration: Web Console, Telnet, CLI Command
- IGMP v1/v2/v3 for Multicast Traffic Filtering
- QoS (IEEE802.1p/1Q), CoS/ToS to Increase Determinism
- IEEE802.1Q VLAN for Easy Network Planning
- Enhanced Network Security with IEEE802.1X, SNMP v1/v2c/v3, HTTPS, and SSH/SSL
- Port Lock Function for Unauthorized Access Based on MAC Address Blocking
- Auto Warning by Exception through E-mail, Relay Output
- Support RMON Function for Efficient Network Monitoring
- Support Port Mirroring for Online Diagnostic
- Standard operating temperature -10°C to 70°C
- 5-Year Warranty

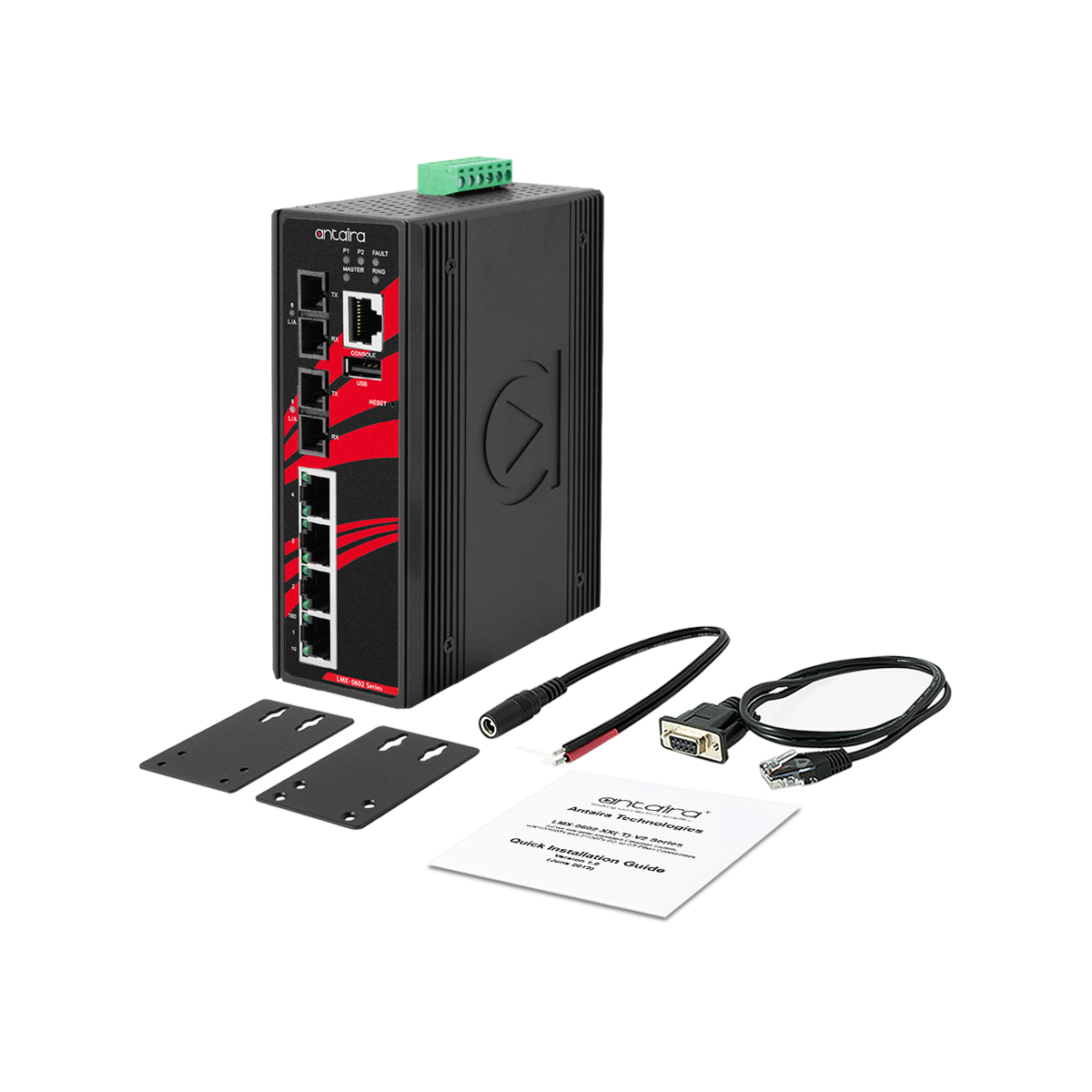

- 1– LMX-0602-M
- 1-DC cable –18 AWG & DC Jack 5.5x2.1mm
- 1-RJ45 to DB9 Serial Console Cable
- 2-Wall Mounting Brackets and Screws
-
- DIN-RACK-2U
- Din-Rail to 19" Rack Mount Adapter for all Din-Rail Mountable Products, 2U Height
-
- PA-STX-US
- Power Adapter for STE(W)-501/601 & LNX/IMC (US Plug). Input: AC 100-240V 50/60Hz 0.4A ; Output: DC 12V 1.25A
- IEEE 802.3 10Base-T Ethernet
- IEEE 802.3u 100Base-TX Fast Ethernet
- IEEE 802.3x Flow Control
- IEEE 802.1d STP (Spanning Tree Protocol)
- IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
- IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
- ITU-TG.8032 / Y.1344 ERPS (Ethernet Ring Protection Switch)
- IEEE 802.1Q Virtual LANs (VLAN)
- IEEE 802.1x Network Authentication
- IEEE 802.1p QoS/CoS Protocol for Traffic Prioritization
- IEEE 802.1ad Stacked VLAN Q-in-Q
- 14,880pps for Ethernet Port
- 148,800pps for Fast Ethernet Port

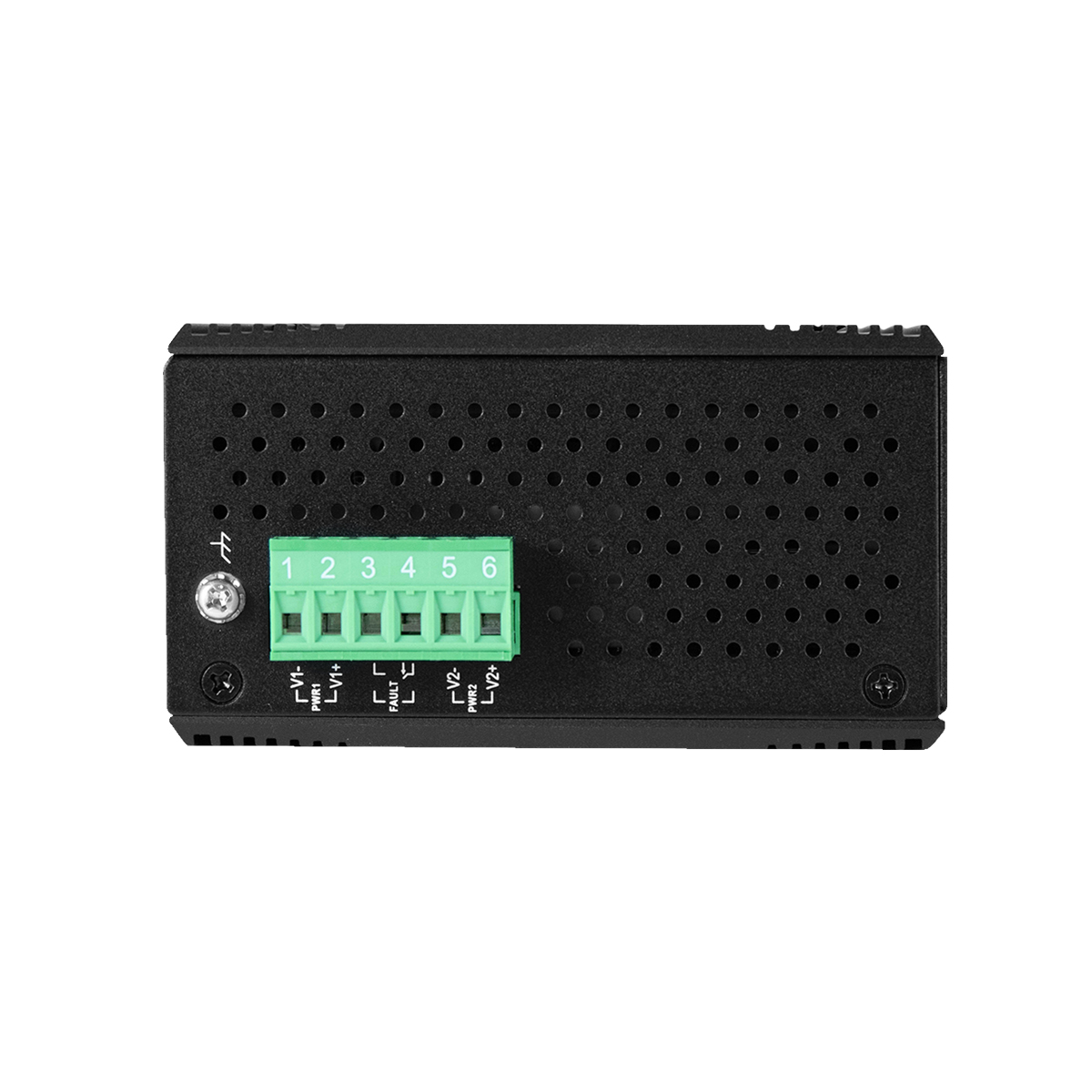

- Power 1, Power 2, Fault, Master, Ring: On / Off
- Fiber Port: Link / Act
- Ethernet Port: Link / Act
- Unit weight : 1.9 lbs
- Shipping weight : 2.7 lbs
- FCC Part 15 Subpart B Class A,
- CE EN55032 Class A
- EN61000-6-4 Class A
- CE EN55035/EN 61000-6-2
- IEC61000-4-2 (ESD)
- IEC61000-4-3 (RS)
- IEC61000-4-4 (EFT)
- IEC61000-4-5 (Surge)
- IEC61000-4-6 (CS)
- IEC61000-4-8 (Magnetic Field)
- Free Fall: IEC60068-2-32
- Shock: IEC60068-2-27
- Vibration: IEC60068-2-6
-
- LMX-0602-M-T-V2
- 6-Port Industrial Managed Ethernet Switch w/4*10/100Tx + 2*100Fx, Multi-Mode 2 km. EOT: -40° ~ 75°C. (Hardware Version 2)
