LNX-2012GN-SFP-T
20-Port Industrial Gigabit Managed Ethernet Switch, w/8*10/100/1000Tx and, + 12*100/1000 SFP Slot. EOT: -40° ~ 75°C
Product WarrantySee details >
0%
Introduction

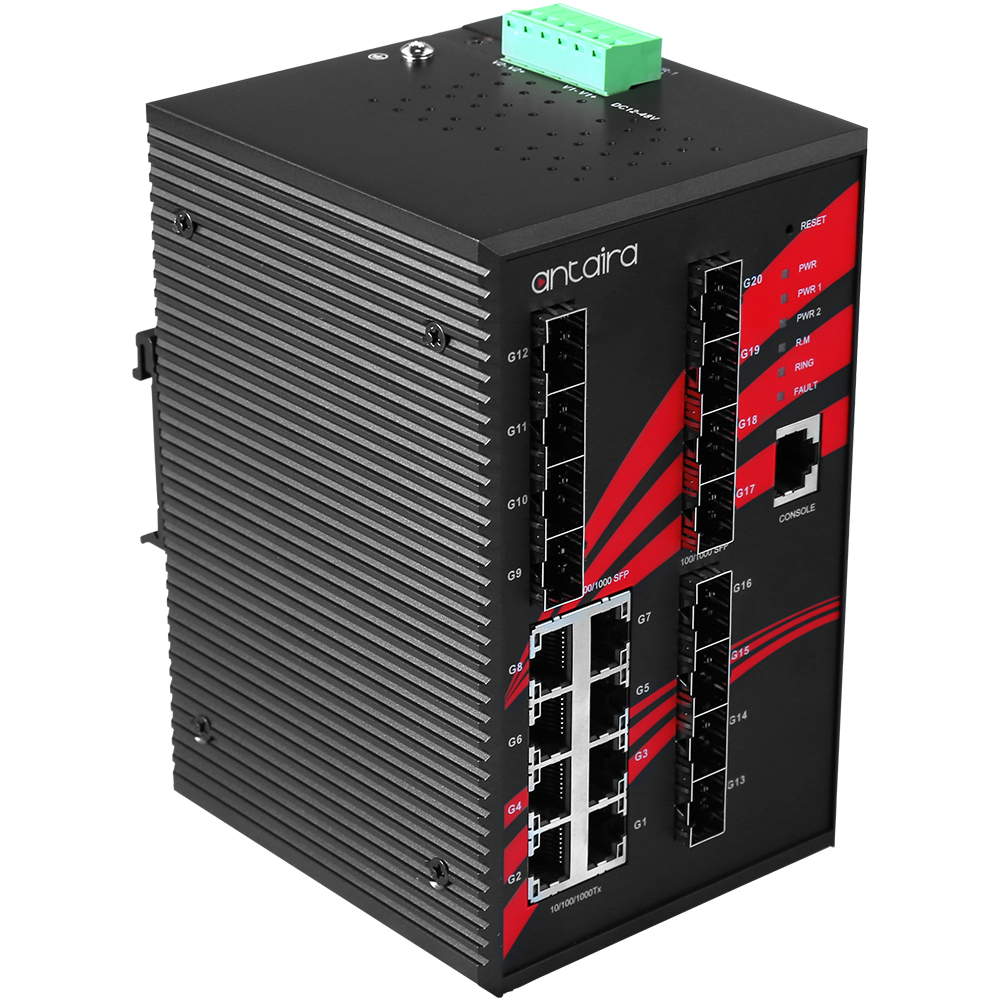

Antaira’s LNX-2012GN-SFP is a 20-port industrial Gigabit managed Ethernet switch embedded with 8*10/100/1000Tx Ethernet ports, and 12*100/1000 dual rate SFP slots for Gigabit fiber connections. It is a fully manageable Layer 2 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard protocol. The advanced network filtering and security functions, such as, IGMP, VLAN, QoS, SNMP, port lock, RMON, ModbusTCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks. The LNX-2012GN-SFP is IP30 rated, DIN-rail mountable, and supports a standard operating temperature range of -40 to 75C. It also provides high EFT and ESD protection for industrial networking applications, such as, power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS, or any other outdoor or harsh environment.
Features
- 8* 10/100/1000Tx Gigabit ports and 12*100/1000 SFP ports
- Jumbo frame up to 9K Bytes
- Redundant Ring (recovery time < 20ms over 250 units of connection), MSTP/RSTP/STP (IEEE 802.1s/w/D) for Ethernet Redundancy
- Supports IP based bandwidth management
- Supports application based QoS management
- Supports IP police security function
- Supports DOS/DDOS auto prevention
- Supports DDM (Digital Diagnostic Monitoring) function (P1 ~ P8)
- IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
- Supports SNMP v1/v2c/v3, RMON and 802.1Q VLAN Network Management
- Support ACL, 802.1x User Authentication for security
- Multiple notification for warning of unexpected event
- Configurable by Web-based interface, Telnet and Console (CLI)
- Supports LLDP Protocol
- Rigid IP-30 housing design

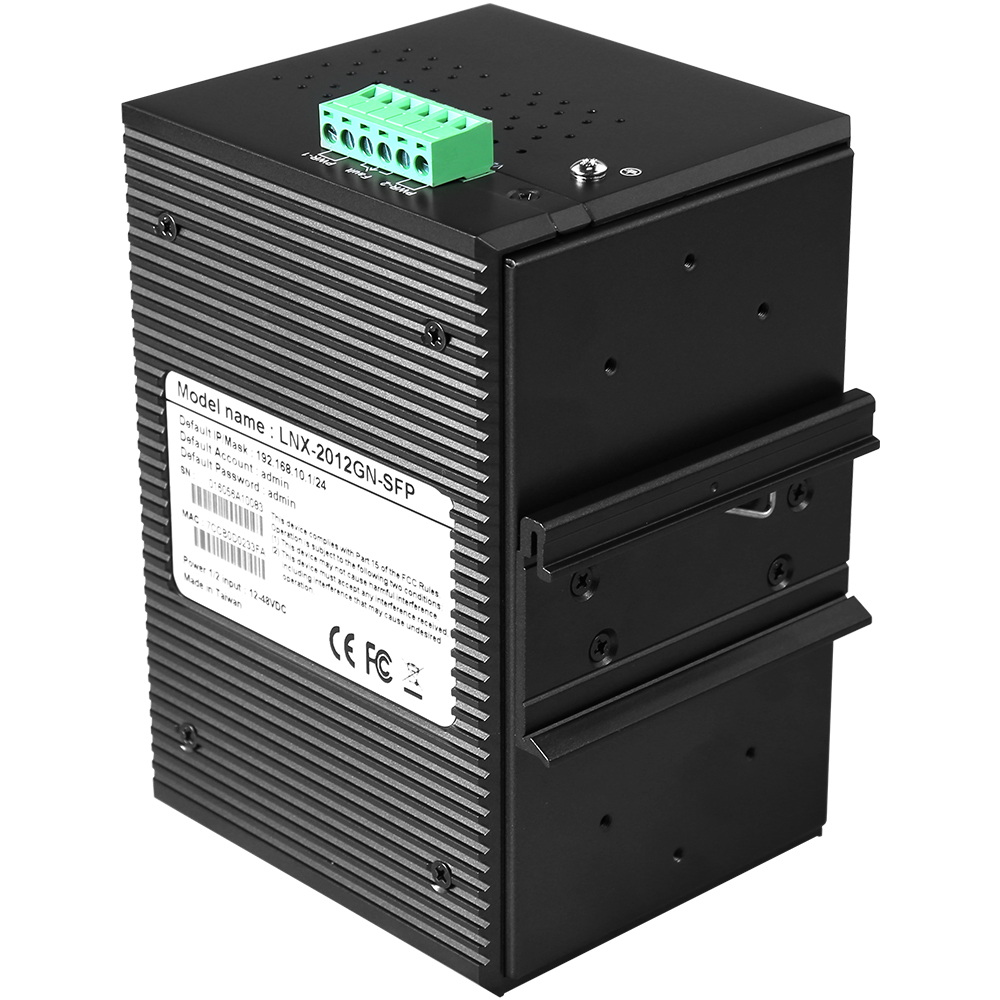

- DIN-Rail and wall mounting enabled
Package Content

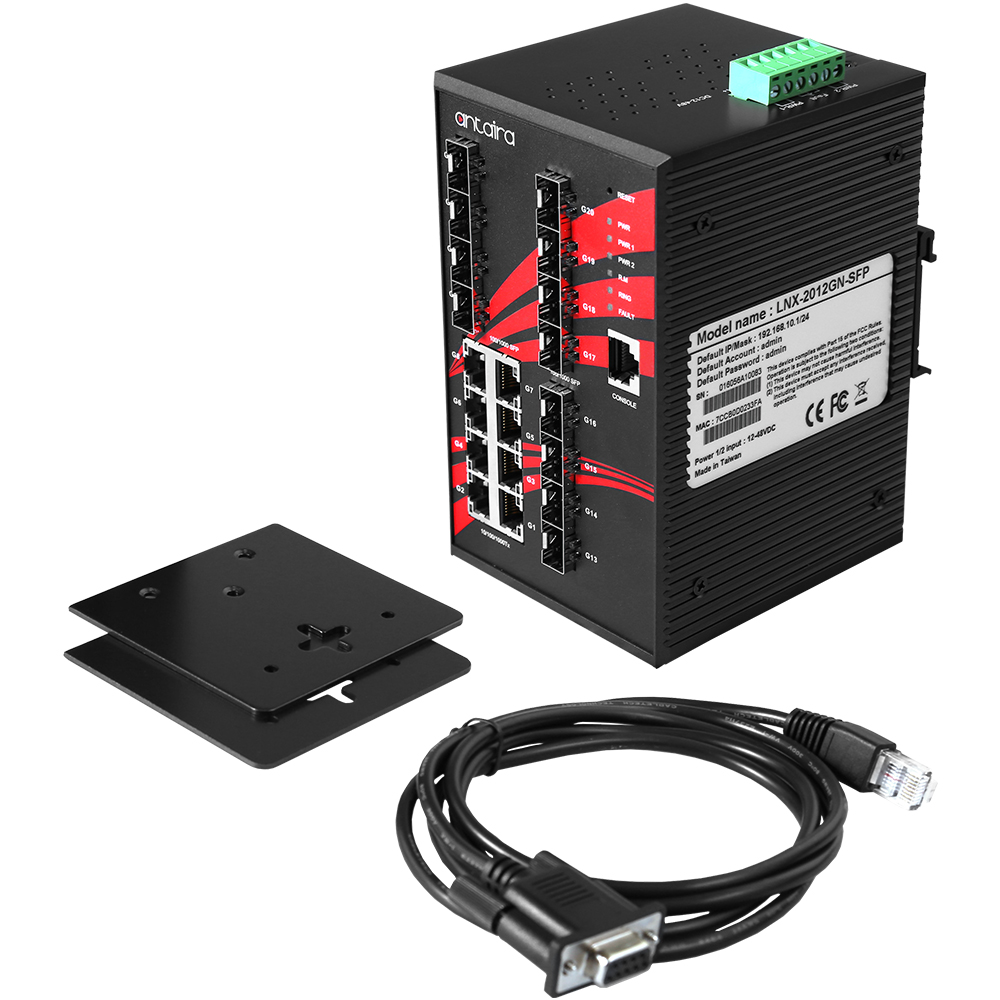

- LNX-2012GN-SFP-T
- 2 - Wall mounting brackets and screws
- 1 - DC cable - 18 AWG & DC jack 5.5x2.1mm
- 1 - Product CD
Download
Optional Accessories
-
- DIN-RACK-2U
- Din-Rail to 19" Rack Mount Adapter for all Din-Rail Mountable Products, 2U Height
-
- PA-STX-US
- Power Adapter for STE(W)-501/601 & LNX/IMC (US Plug). Input: AC 100-240V 50/60Hz 0.4A ; Output: DC 12V 1.25A
-
- SFP-M-T
- 1 Gigabit Fiber SFP Transceiver, Multi Mode 550M / LC / 850nm, -40º~85ºC
-
- SFP-S10-T
- 1 Gigabit Fiber SFP Transceiver, Single-Mode 10km / LC / 1310nm, -40º~85ºC
Related Resources
PoE, PoE+ and PoE++: Choosing the Right Industrial Ethernet Switch for You
PoE, PoE+ and PoE++: Choosing the Right Industrial Ethernet Switch for You
May 16, 2022
Advanced Industrial Managed Ethernet Switches
Advanced Industrial Managed Ethernet Switches
October 18, 2018
Technology
IEEE Standards
- IEEE 802.3 10Base-T Ethernet
- IEEE 802.3u 100Base-TX Fast Ethernet
- IEEE 802.3ab 1000Base-T Gigabit Ethernet
- IEEE 802.3z 1000Base-X Gigabit Fiber
- IEEE 802.3x Flow Control
- IEEE 802.3ad Link Aggregation (LACP)
- IEEE 802.1d STP (Spanning Tree Protocol)
- IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
- IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
- IEEE 802.1Q Virtual LANs (VLAN)
- IEEE 802.1x Network Authentication
- IEEE 802.1p QoS/CoS Protocol for Traffic Prioritization
Processing Type
Store and Forward
Protocol
IGMPv2/v3, SNMP v1/v2c/v3, TFTP, SNTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH/SSL, Modbus/TCP, LLDP, IPv4/IPv6
Flow Control
IEEE 802.3x flow control, back pressure flow control
Software
Configuration
- Web Console,
- Telnet,
- CLI
VLAN Group
1~4094 groups
IGMP Group
Up to 256 groups
Ethernet Redundancy
STP/RSTP/MSTP, Super Ring Redundancy
Performance
MAC Table Size
8K
Jumbo Frame
9.6 Kbytes
Memory Buffer
4 Mbits
Transfer Rate
- 14,880pps for Ethernet Port
- 148,800pps for Fast Ethernet Port
- 1,488,000pps for Gigabit Ethernet Port
Switching Architecture
Back-Plane (Switching Fabric): 40.0Gbps
Ethernet Interface
Ethernet Port Count
8 ports
10/100/1000 BASE-T(X)
8 ports
Fiber Interface
Fiber Port Count
12 ports
100/1000 BASE-(F)X SFP
12 ports
Wavelength
Refers to SFP module
Mechanical Characteristics
Housing
Metal, IP30 protection
Mounting
DIN-Rail mount, Wall mount (Optional)
Dimensions (W × H × D)
96.4 × 154 × 105.5 mm
Weight
- Unit weight : 2.7 lbs
- Shipping weight : 3.7 lbs
Power Requirements
Power Connection
Removable 6-contact terminal block
Input Voltage
12V–48V DC, Redundant Input
Power Redundancy
Yes
System Power Consumption
10 Watts
Overload Current Protection
Present
Reverse Polarity Protection
Present
Environmental Limits
Operating Temperature
-40° to 75° C (-40° to 167° F)
Storage Temperature
-40° to 85° C (-40° to 185° F)
Ambient Relative Humidity
5% to 95% non-condensing
Regulatory Approvals
UL 508
✔
EMI
- FCC Part 15 Subpart B Class A
- CE EN 55032 Class A
- EN 61000-6-4 Class A
EMS
- CE EN 55024
- EN 61000-6-2
- IEC61000-4-2 (ESD)
- IEC61000-4-3 (RS)
- IEC61000-4-4 (EFT)
- IEC61000-4-5 (Surge)
- IEC61000-4-6 (CS)
- IEC61000-4-8 (Magnetic Field)
Stability Testing
- Free Fall: IEC60068-2-32
- Shock: IEC60068-2-27
- Vibration: IEC60068-2-6
Green
RoHS Compliant
Warranty
5 years
Download
Datasheet
