LNP-1204G-SFP-T
12-Port Industrial PoE+ Gigabit Unmanaged Ethernet Switch, w/ 8*10/100/1000Tx (30W/Port) + 4*100/1000 SFP Slots. EOT: -40° ~ 75°C
Product WarrantySee details >
0%
Introduction
Antaira’s LNP-1204G-SFP-T industrial PoE+ gigabit unmanaged Ethernet switch is IP30 rated and DIN-Rail mountable. The unit is designed with 8 gigabit Ethernet ports that support IEEE 802.3at (PoE+) with a maximum of 30W/Port; and has four dual rate (100/1000) SFP slots, making it ideal for applications that demand high bandwidth and long distance communication.
This product provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It supports the power redundancy feature using a dual power input design with reverse polarity protection. In addition, the built-in relay warning function alerts maintainers when power failures occur.
LNP-1204G-SFP-T has an operating temperature range of -40 to 75° C and is perfectly designed to fulfill any special needs for industrial automation, outdoor applications or harsh weather environments.
Features
- Supports 8*10/100/1000Tx (30W/Port) + 4*100/1000 SFP ports
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 24Gbps Back-Plane (Switching Fabric)
- 8K MAC Address Table
- 9.6Kbytes Jumbo Frame Support
- Surge Protection: 2,000 VDC Support
- ESD Protection: 6,000 VDC Support
- Redundant Power Input Design: 48~55VDC
- Built-in 1 Relay Output for Power Failure Detection
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support
- Operating Temperature Range: -40° to 75° C
- 5-Year Warranty
Package Content
- 1 - LNP-1204G-SFP-T
- 1 - DC cable –18 AWG to DC Jack 5.5x2.1mm
- 2 - Wall Mounting Brackets and Screws
Optional Accessories
-
- CBF-LC01LC-MD
- LC To LC 1 Meter Multi-Mode Duplex
-
- DIN-RACK-2U
- Din-Rail to 19" Rack Mount Adapter for all Din-Rail Mountable Products, 2U Height
-
- DRP-240-48
- 240 Watt Industrial Single Output DIN Rail Power Supply - 48 VDC / 5.0 Amps
-
- SFP-M
- 1 Gigabit Fiber SFP Transceiver, Multi Mode 550M / LC / 850nm, 0º~70ºC
-
- SFP-S10
- 1 Gigabit Fiber SFP Transceiver, Single-Mode 10km / LC / 1310nm, 0º~70ºC
Related Resources
PoE, PoE+ and PoE++: Choosing the Right Industrial Ethernet Switch for You
PoE, PoE+ and PoE++: Choosing the Right Industrial Ethernet Switch for You
May 16, 2022
Persistent PoE Power for Uninterrupted Operation with Antaira Managed bt PoE Switches
Persistent PoE Power for Uninterrupted Operation with Antaira Managed bt PoE Switches
July 19, 2021
Simplifying Network for Onboard Surveillance and Bus Operation
Simplifying Network for Onboard Surveillance and Bus Operation
June 01, 2022
Industrial Power over Ethernet Product Brochure
Industrial Power over Ethernet Product Brochure
May 04, 2022
Technology
IEEE Standards
- IEEE 802.3 10Base-T Ethernet
- IEEE 802.3u 100Base-TX Fast Ethernet
- IEEE 802.3ab 1000Base-T Gigabit Ethernet
- IEEE 802.3z 1000Base-X Gigabit Fiber
- IEEE 802.3x Flow Control
- IEEE 802.3af/at Power over Ethernet
Processing Type
Store and Forward
Protocol
CSMA/CD
Flow Control
IEEE 802.3x flow control, back pressure flow control
Performance
MAC Table Size
8K
Jumbo Frame
9.6 Kbytes
Memory Buffer
4Mbits
Transfer Rate
- 14,880pps for Ethernet Port
- 148,800pps for Fast Ethernet Port
- 1,488,000pps for Gigabit Ethernet Port
Switching Architecture
Back-Plane (Switching Fabric): 24Gbps
Ethernet Interface
Ethernet Port Count
8 ports
10/100/1000 BASE-T(X)
8 ports
PoE Port
8 ports (30W/port)
PoE Pin Assignment
V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A)
Fiber Interface
Fiber Port Count
4 ports
100/1000 BASE-(F)X SFP
4 ports
Wavelength
Refers to SFP module
Other Interface
LED Indicator
- System: Power 1, Power 2, Fault
- Ethernet Ports: On-Link/Flash-data transmitting
- PoE: On-connected to PD devices
- SFP: Link/Active
Mechanical Characteristics
Housing
Metal, IP30 protection
Mounting
DIN-Rail mount, Wall mount (Optional)
Dimensions (W × H × D)
46 × 142 × 99 mm
Weight
- Unit weight : 1.8 lbs
- Shipping weight : 2.3 lbs
Power Requirements

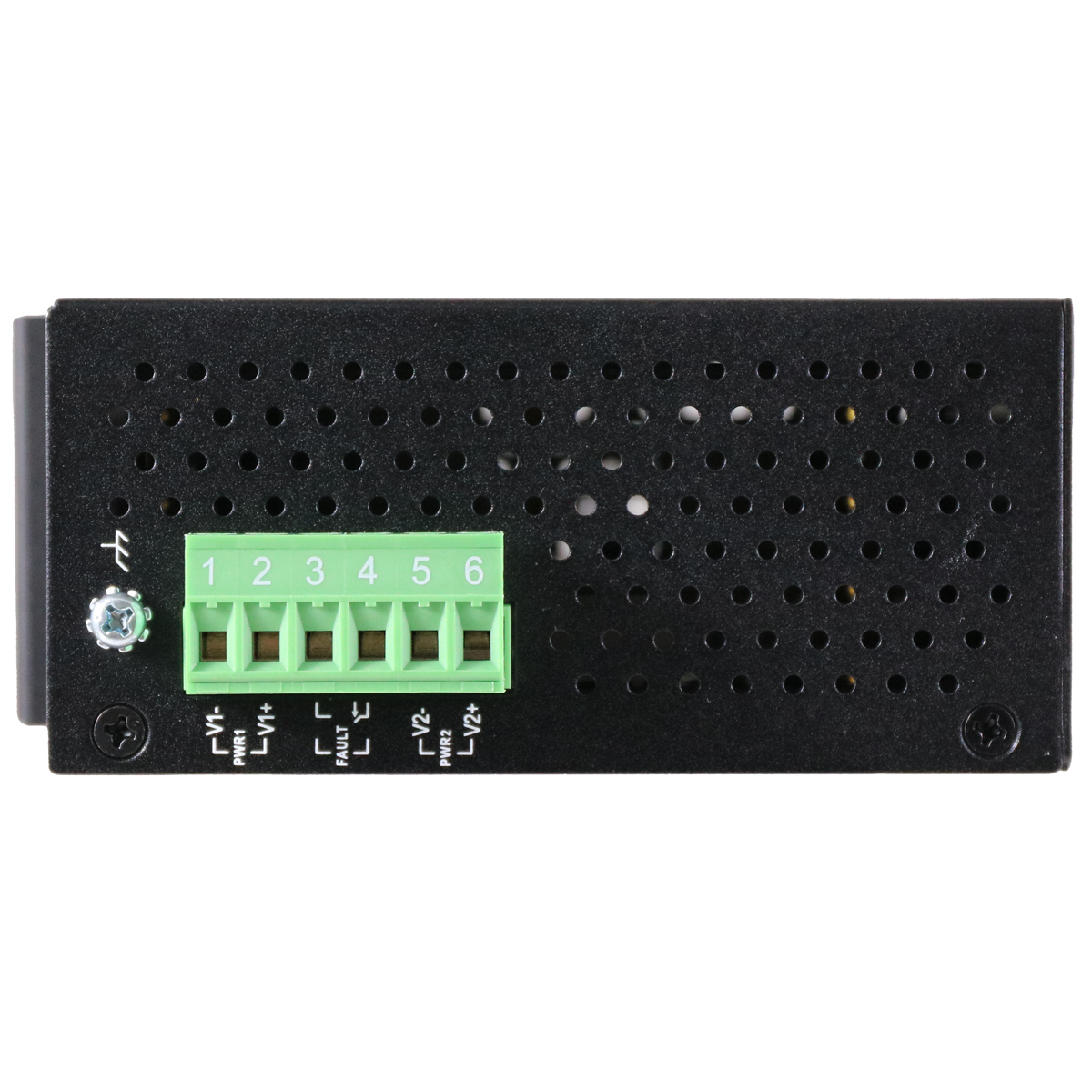

Power Connection
Removable 6-contact terminal block
Input Voltage
48V–55V DC, Redundant Input
Power Redundancy
Yes
Relay Output
24V DC, 1A resistive
System Power Consumption
10 Watts
Max. PoE Power Budget
240 Watts
Overload Current Protection
Present
Reverse Polarity Protection
Present
Environmental Limits
Operating Temperature
-40° to 75° C (-40° to 167° F)
Storage Temperature
-40° to 85° C (-40° to 185° F)
Ambient Relative Humidity
5% to 95% non-condensing
Regulatory Approvals
Certifications
FCC, CE
UL 508
✔
UL 61010-1 / UL 61010-2-201
✔
EMI
- FCC Part 15 Subpart B Class A
- CE EN 55022 Class A
- EN 61000-6-4 Class A
EMS
- CE EN 55024/EN 61000-6-2
- IEC61000-4-2 (ESD)
- IEC61000-4-3 (RS)
- IEC61000-4-4 (EFT)
- IEC61000-4-5 (Surge)
- IEC61000-4-6 (CS)
- IEC61000-4-8 (Magnetic Field)
Stability Testing
- Free Fall: IEC60068-2-32
- Shock: IEC60068-2-27
- Vibration: IEC60068-2-6
Green
RoHs Compliant
Warranty
5 years
Download
Datasheet
Models
-
- LNP-1204G-SFP
- 12-Port Industrial PoE+ Gigabit Unmanaged Ethernet Switch, w/ 8*10/100/1000Tx (30W/Port) + 4*100/1000 SFP Slots
