Antaira’s LNX-0601G-SFP industrial gigabit unmanaged Ethernet switch is IP30 rated and DIN-Rail mountable. The unit is designed with five gigabit Ethernet ports and one dual rate (100/1000) SFP slot, making it ideal for applications that demand high bandwidth and long distance communication. LNX-0601G-SFP provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It supports the power redundancy feature using a dual power input design with reverse polarity protection.
In addition, the built-in relay warning function alerts maintainers when power failures or port breaks occur. Also, the built-in advanced broadcast storm protection feature will block any data packet that exceeds a defined limit when it arrives to a port, until the rate decreases to a lower threshold.
- 5-Ports 10/100/1000 Tx Fast Ethernet &1-Port SFP
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 8K MAC Address Table
- 10Kbytes Jumbo Frame Support
- Surge (EFT) Protection Support
- Ethernet ESD Protection Support
- Redundant Power Input Design: 12~48 VDC

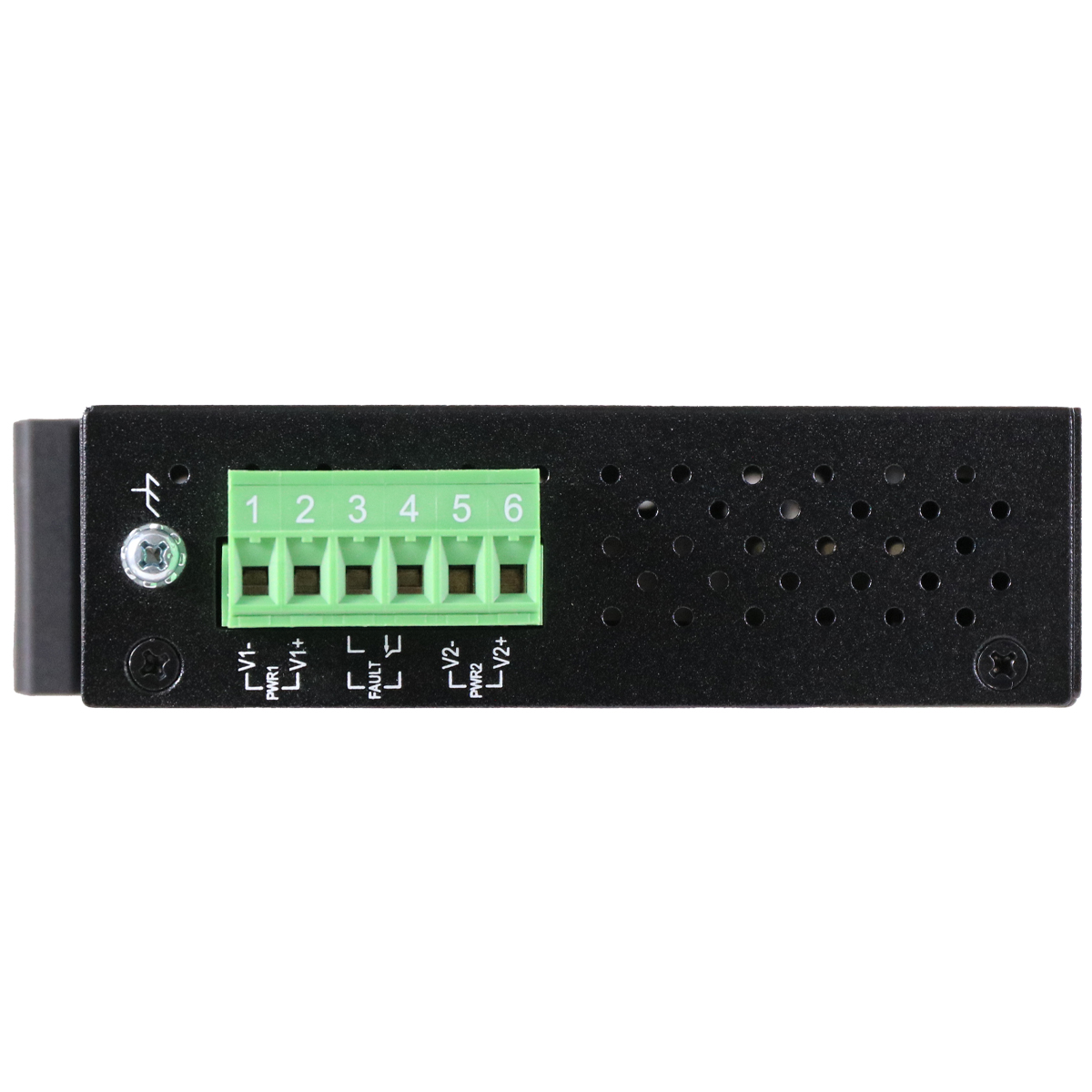

- Built-in 1 Relay Output for Port Break Alarm
- IP30 Rugged Aluminum Case Design
- DIN-Rail and Wall Mount Support
- Operating Temperature Range - STD: -10° to 60° C
- 5-Year Warranty
- 1 * LNX-0601G-SFP
- 2 * Wall Mounting Bracket and Screws
- 1 * DC cable –18 AWG & DC Jack 5.5x2.1mm
-
- CBF-LC01LC-MD
- LC To LC 1 Meter Multi-Mode Duplex
-
- DIN-RACK-2U
- Din-Rail to 19" Rack Mount Adapter for all Din-Rail Mountable Products, 2U Height
-
- PA-STX-US
- Power Adapter for STE(W)-501/601 & LNX/IMC (US Plug). Input: AC 100-240V 50/60Hz 0.4A ; Output: DC 12V 1.25A
-
- SFP-M
- 1 Gigabit Fiber SFP Transceiver, Multi Mode 550M / LC / 850nm, 0º~70ºC
-
- SFP-S10
- 1 Gigabit Fiber SFP Transceiver, Single-Mode 10km / LC / 1310nm, 0º~70ºC
- IEEE 802.3 10Base-T Ethernet
- IEEE 802.3u 100Base-TX Fast Ethernet
- IEEE 802.3ab 1000Base-T Gigabit Ethernet
- IEEE 802.3z 1000Base-X Gigabit Fiber
- IEEE 802.3x Flow Control
- IEEE 802.3az EEE Power Management
- 14,880pps for Ethernet Port
- 148,800pps for Fast Ethernet Port
- 1,488,000pps for Gigabit Ethernet Port
- Unit weight : 1.4 lbs
- Shipping weight : 1.9 lbs
- FCC Part 15 Subpart B Class A
- CE EN 55032 Class A
- EN 61000-6-4 Class A
- CE EN 55024
- EN 61000-6-2
- IEC61000-4-2 (ESD)
- IEC61000-4-3 (RS)
- IEC61000-4-4 (EFT)
- IEC61000-4-5 (Surge)
- IEC61000-4-6 (CS)
- IEC61000-4-8 (Magnetic Field)
- Free Fall: IEC60068-2-32
- Shock: IEC60068-2-27
- Vibration: IEC60068-2-6
