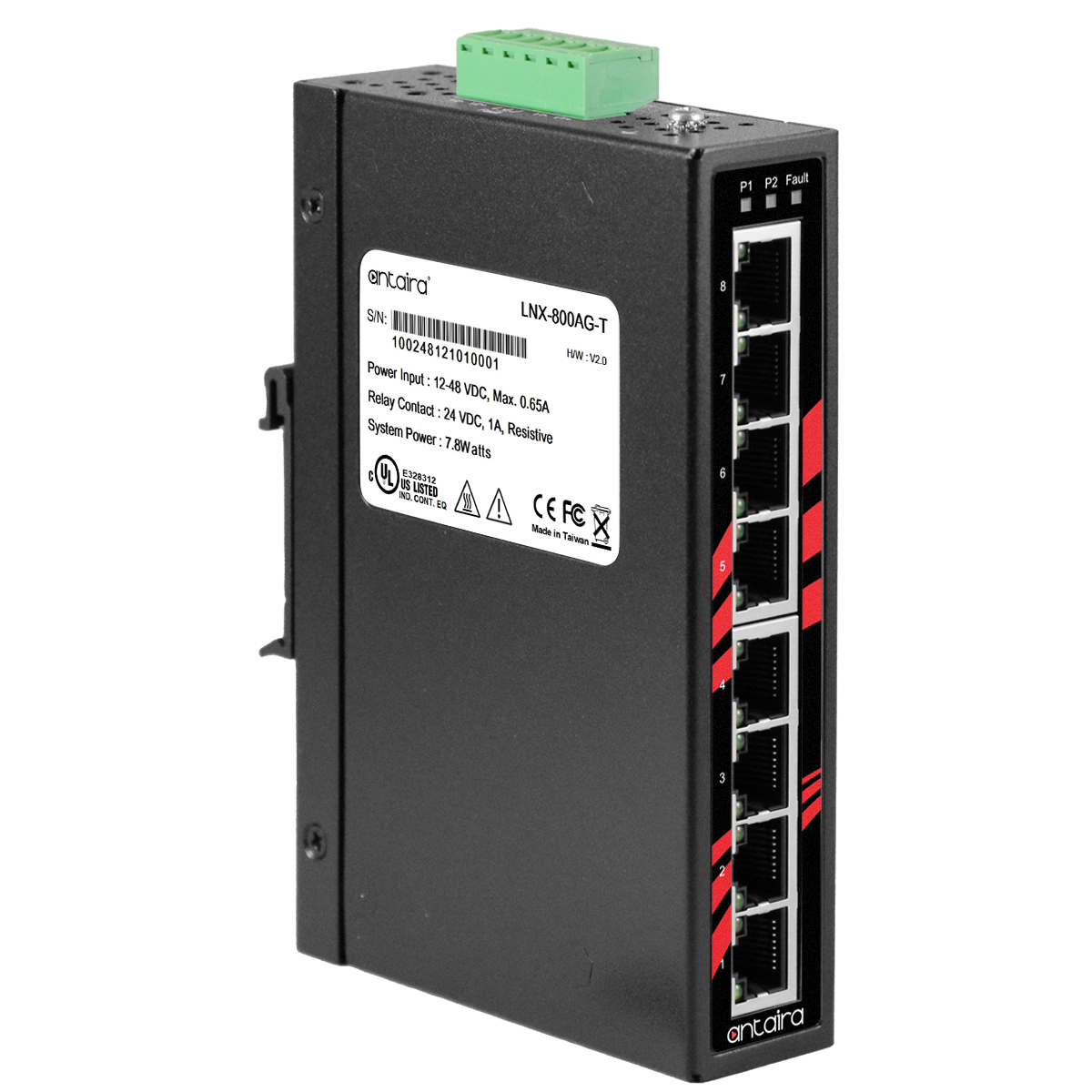

LNX-800AG-T
8-Port Industrial Gigabit Unmanaged Ethernet Switch, w/8*10/100/1000T. EOT:-40° ~ 75°C
Product WarrantySee details >
0%
Introduction
Antaira Technologies’ LNX-800AG-T industrial Gigabit unmanaged Ethernet switch series is IP30 rated and DIN-Rail mountable with 8*10/100/1000T, making it ideal for applications that demand a high bandwidth connectivity solution.
It provides a high EFT and ESD protection that has a dual power input with a reverse power polarity protection. In addition, the built-in relay warning function alerts maintainers when power failures occur. The model supportds operating temperature from -40°C to 75°C. The LNX-800AG-T is an ideal solution for harsh outdoor weather environments and industrial applications.
Features
- Supports 8-Port 10/100/1000T Gigabit Ethernet
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 16Gbps Back-Plane (Switching Fabric)
- 8K MAC Address Table
- Redundant Power Input Design: 12~48VDC
- Built-in 1 Relay Output for Power Failure Warning
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support
- Operating Temperature Range (EOT) -40°C to 75°C
- 5-Year Warranty
Package Content
- LNX-800AG-T
- Quick Installation Guide
- Wall mounting bracket set with screws
- DC cable- 18AWG & DC jack 5.5 x 2.1mm
- Dust cover set
Optional Accessories
-
- DIN-RACK-2U
- Din-Rail to 19" Rack Mount Adapter for all Din-Rail Mountable Products, 2U Height
-
- PA-STX-US
- Power Adapter for STE(W)-501/601 & LNX/IMC (US Plug). Input: AC 100-240V 50/60Hz 0.4A ; Output: DC 12V 1.25A
Related Resources
PoE, PoE+ and PoE++: Choosing the Right Industrial Ethernet Switch for You
PoE, PoE+ and PoE++: Choosing the Right Industrial Ethernet Switch for You
May 16, 2022
Advanced Industrial Managed Ethernet Switches
Advanced Industrial Managed Ethernet Switches
October 18, 2018
Technology
IEEE Standards
- IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet
- IEEE 802.3x Flow Control
- IEEE 802.3az EEE Power Management
Processing Type
Store and Forward
Protocol
CSMA/CD
Flow Control
IEEE 802.3x flow control, back pressure flow control
Performance
MAC Table Size
8K
Jumbo Frame
9.6 Kbytes
Memory Buffer
4Mbits
Transfer Rate
- 14,880pps for Ethernet Port
- 148,800pps for Fast Ethernet Port
- 1,488,000pps for Gigabit Ethernet Port
Switching Architecture
Back-Plane (Switching Fabric): 16Gbps
Ethernet Interface
Ethernet Port Count
8 ports
10/100/1000 BASE-T(X)
8 ports
Other Interface
LED Indicator
- System: Power 1, Power 2, Fault
- Ethernet Ports: Link/Activity/Speed
Mechanical Characteristics
Housing
Metal, IP30 protection
Mounting
DIN-Rail mount, Wall mount (Optional)
Dimensions (W × H × D)
30 × 140 × 95 mm
Weight
- Unit weight : 1.14 lbs
- Shipping: 1.5 lbs
Power Requirements
Power Connection
Removable 6-contact terminal block
Input Voltage
12V–48V DC, Redundant Input
Power Redundancy
Yes
Relay Output
24V DC, 1A resistive
System Power Consumption
9.2 Watts
Overload Current Protection
Present
Reverse Polarity Protection
Present
Environmental Limits
Operating Temperature
-40° to 75° C (-40° to 167° F)
Storage Temperature
-40° to 85° C (-40° to 185° F)
Ambient Relative Humidity
5% to 95% non-condensing
Regulatory Approvals
Certifications
FCC, CE
UL 61010-1 / UL 61010-2-201
✔
ISA 12.12.01 (UL C1D2)
✔
EMI
- FCC Part 15 Subpart B Class A
- CE EN 55032 Class A
- EN 61000-6-4 Class A
EMS
- CE EN 55024
- EN 61000-6-2
- IEC61000-4-2 (ESD)
- IEC61000-4-3 (RS)
- IEC61000-4-4 (EFT)
- IEC61000-4-5 (Surge)
- IEC61000-4-6 (CS)
- IEC61000-4-8 (Magnetic Field)
Stability Testing
- Free Fall: IEC60068-2-32
- Shock: IEC60068-2-27
- Vibration: IEC60068-2-6
Green
RoHS Compliant
Warranty
5 years
