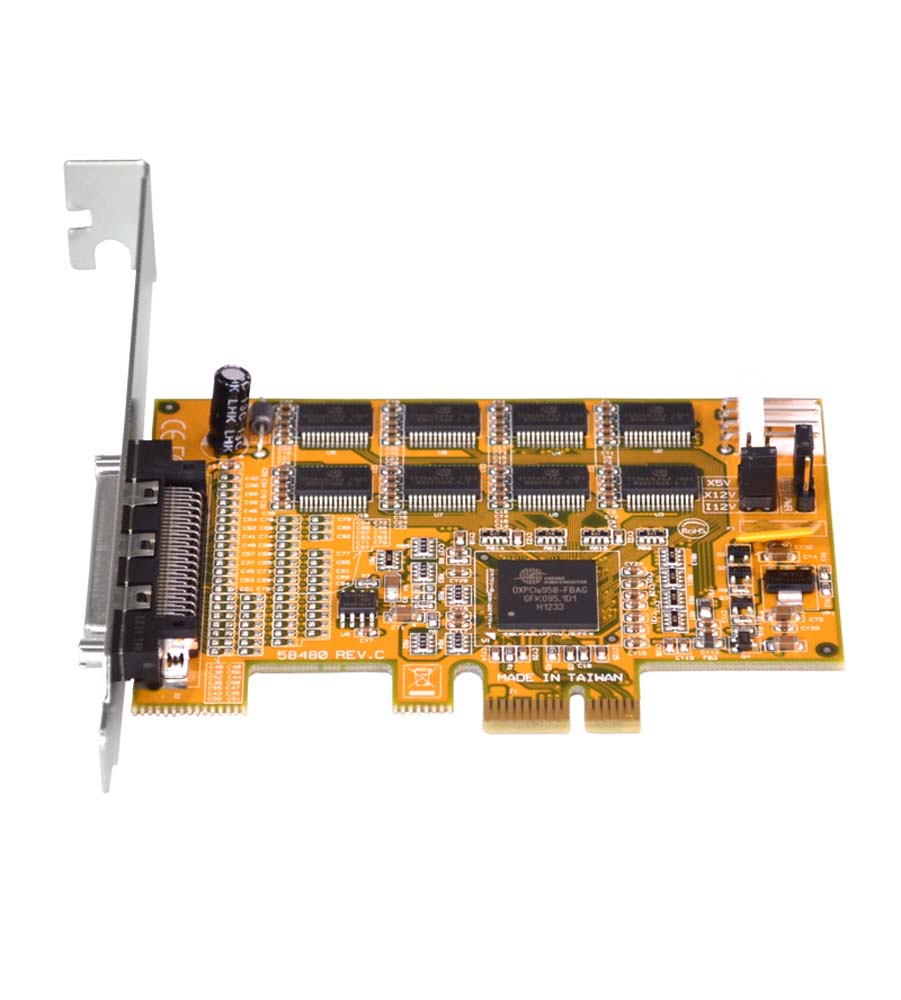

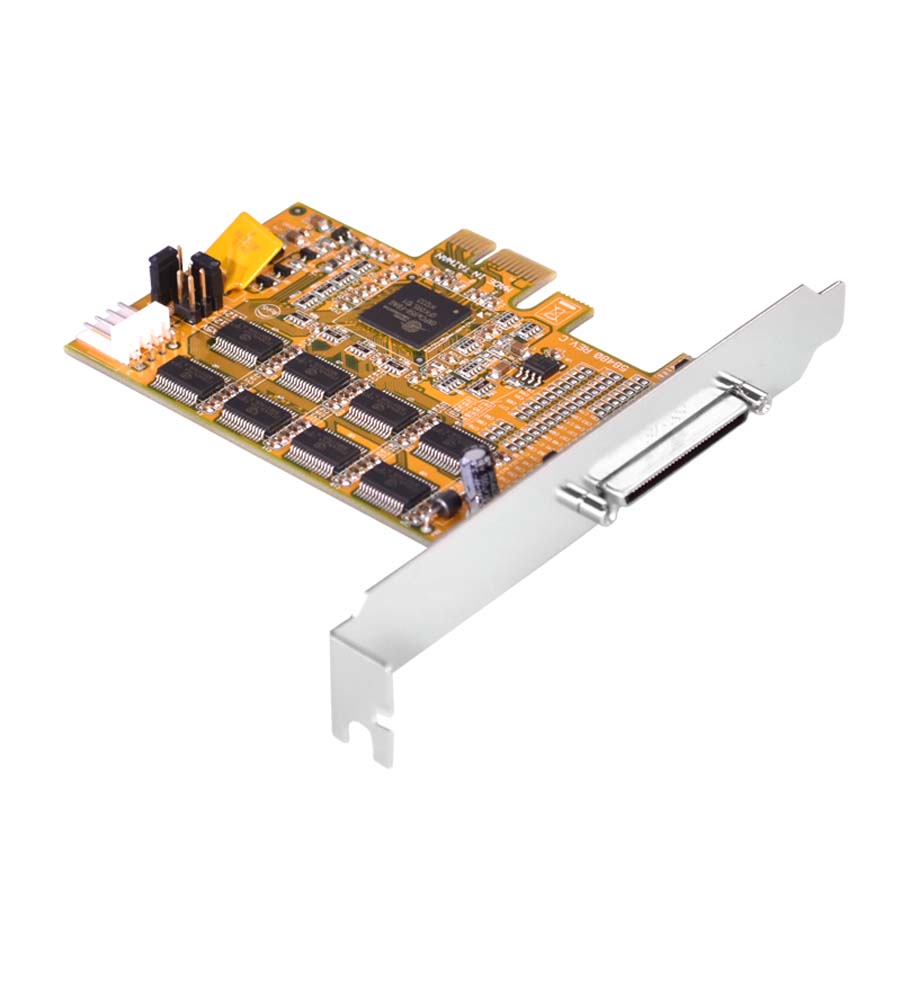

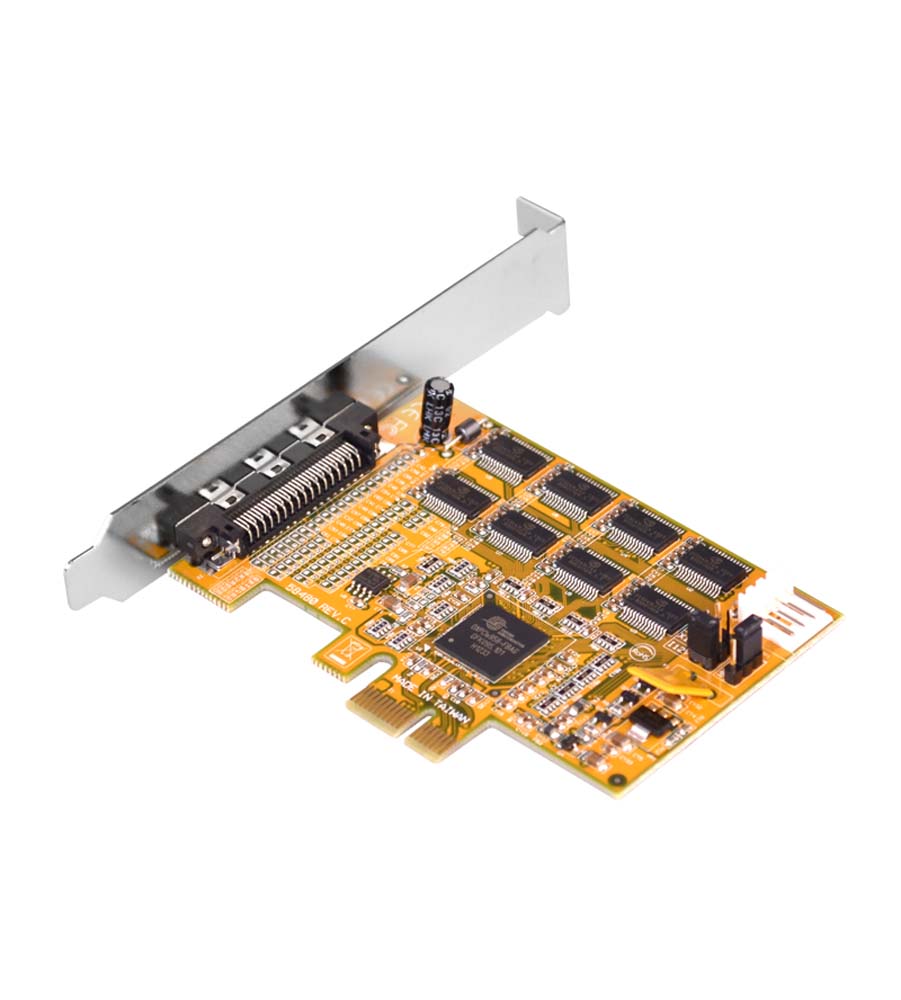

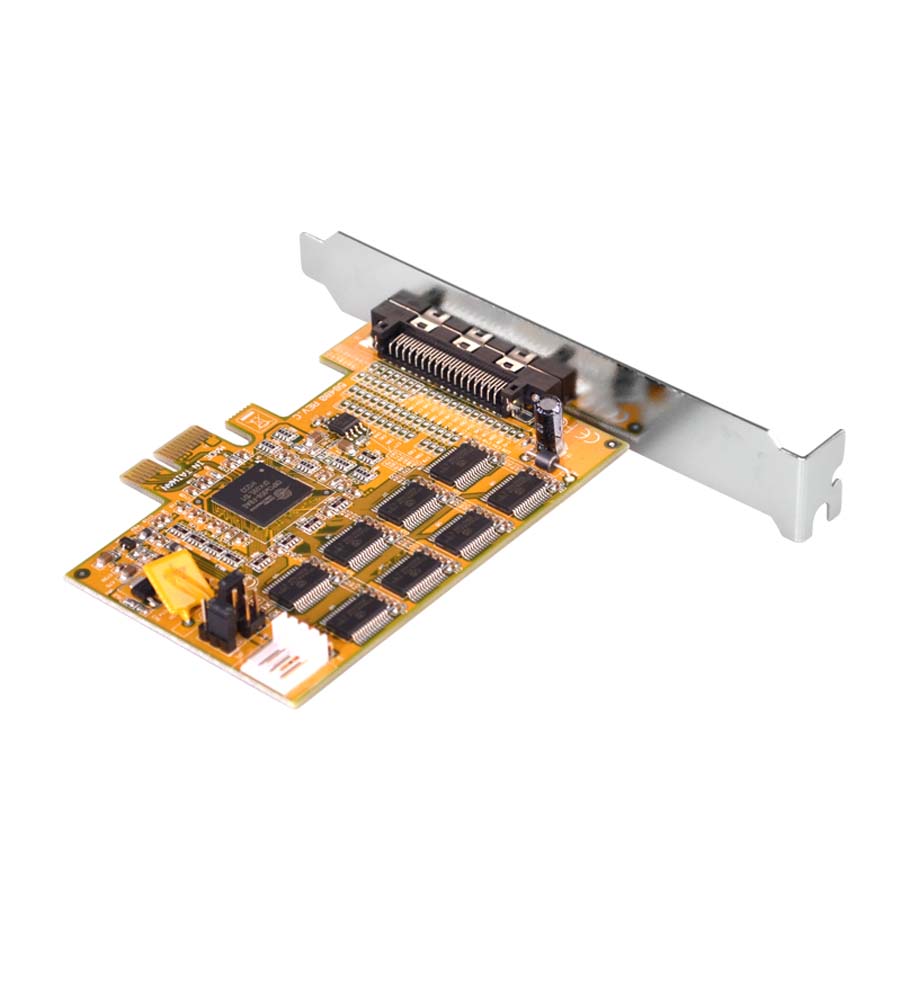

8-Port RS232 PCI Express Serial Card Expansion with Octopus Cable
0%
MSC-208A2
MSC-208A2
MSC-208A2
MSC-208A2
MSC-208A2
MSC-208A2
MSC-208A2
MSC-208A2
MSC-208A2
MSC-208A2
Introduction

Antaira Technologies MSC-208A2 PCI Express I/O adapter provides 8 high performance 16C550-type UART compatible RS232 serial ports. It is designed for PC, thin client, or server to provide instant COM port expansion via the PCI Express Bus (PCIE). PCI Express provides a scalable, high-speed, serial I/O bus that maintains backward compatibility with PCI applications and drivers. Its architecture defines a high-performance, point-to-point, scalable, serial bus at speed of 250Mbytes/sec to 4GBytes/sec (and 8Gbytes/sec in the future).The card is fully PCI Express Plug-and-Play compatible and no IRQ and I/O address conflict problems. The MSC-208A2 provides the scalability to quickly adapt to new PCI Express technologies. It allows you to add serial connectivity as needed. The complete product line offer many choices help you to expand and make your network grow with your requirements.

Features
  • PCI Express Compliance with Revision 1.0a/1.1
  • Full x1 PCI Express Throughput, 250Mbytes/sec
  • 8 DB9M RS232 Connectors over a 44-pin Octopus
  • Cable
  • 8 High Performance 16C550 UART Channels
  • ±15kV IEC1000-4-2 ESD Protection for RS-232 I/O's
  • Baud Rate: up to 921.6kbps
  • Parity: None, Even, Odd
  • Data Bits: 5, 6, 7, or 8-bit Characters
  • Stop Bits: 1, 1.5, or 2 Stop Bit Generation
  • 256-byte deep FIFO per transmitter and receiver
  • Software/Hardware Flow Control & Xon/Xoff re-transmit function
  • 5V or 12V Power Available Over Serial Connectors
  • Windows: 2000, 2003, 2008, XP, Vista, 7, 8.x, 10 and Linux
  • 5-Year Warranty
Package Content
  • MSC-208A2
Optional Accessories
  • GC-F09F09-N
    Mini Gender Changer DB9 F/F Null Modem
