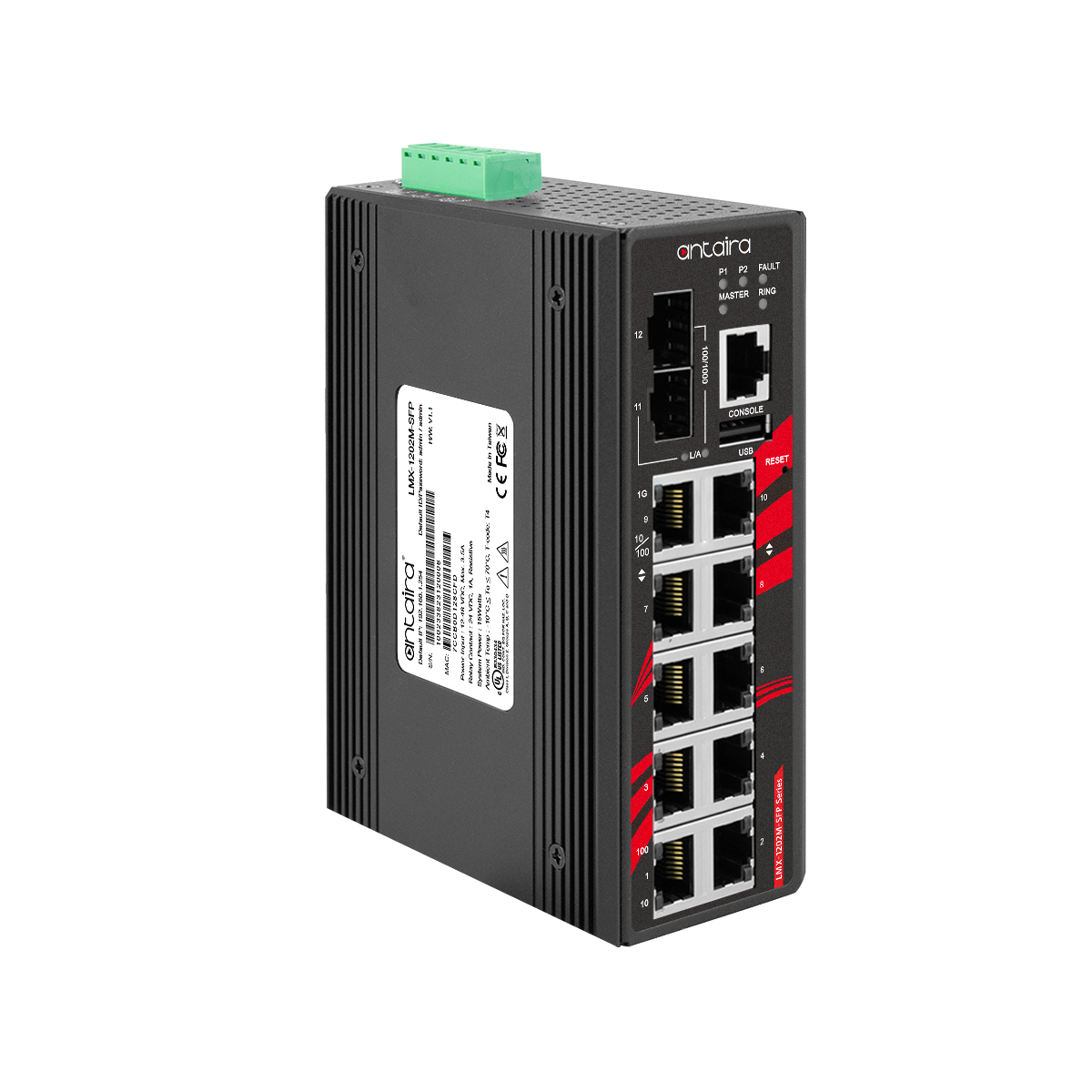

LMX-1202M-SFP
12-Port Industrial Gigabit Managed Ethernet Switch w/8*10/100Tx, 2*10/100/1000Tx RJ45, and 2*100/1000 SFP Slots
Product WarrantySee details >
0%
Introduction
Antaira’s LMX-1202M-SFP series is a 12-port industrial gigabit managed Ethernet switch that is embedded with 8*10/100Tx Fast Ethernet ports, 2*10/100/1000Tx RJ45, and 2*100/1000 dual rate SFP slots. This model is a fully manageable industrial Ethernet switch pre-loaded with standard Layer 2 network management software. The RJ45 ports provide flexibility to users for either 10/100 or 1000Tx Ethernet connections. The plug-in SFP modules provide 100MB or Gigabit Fiber connection where distance, EMI, or security is a concern.
The LMX-1202M-SFP series is compact, IP30 rated, and DIN-rail or wall mountable. There are also two wide operating temperature models for either a standard temperature range (STD: -10°C to 70°C) or an extended temperature range (EOT: -40°C to 75°C). It also provides high EFT and ESD protection for industrial networking applications; such as, power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS, and any other outdoor or harsh environment.
Features
- Supports 8*10/100Tx Fast Ethernet Ports, 2*Gigabit 10/100/1000Tx RJ45 and 2*100/1000 SFP Slots for Fiber Connection
- Network Redundancy: STP/RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
- Supports IPv4/IPv6, and DHCP Option 66/67/82
- Supports Modbus/TCP Protocol for Device Management and Monitoring
- Configuration: Web Console, Telnet, CLI Command
- IGMP v1/v2/v3 for Multicast Traffic Filtering
- QoS (IEEE802.1p/1Q), CoS/ToS to Increase Determinism
- IEEE802.1Q VLAN for Easy Network Planning
- Enhanced Network Security with IEEE802.1X, SNMP v1/v2c/v3, HTTPS, and SSH/SSL
- Auto Warning by Exception through E-mail, Relay Output
- Support RMON Function for Efficient Network Monitoring
- Support Port Mirroring for Online Diagnostic
- 5-Year Warranty
Package Content
- 1– LMX-1202M-SFP: 12-port industrial gigabit managed Ethernet switch, with 8*10/100Tx, 2*10/100/1000Tx and 2*100/1000 SFP Slots
- 1-Quick Installation Guide
- 2-Wall mounting brackets and screws
- 1-RJ45 to DB9 Serial Console cable
- 1-DC cable –18 AWG & DC jack 5.5x2.1mm
Optional Accessories
-
- DIN-RACK-2U
- Din-Rail to 19" Rack Mount Adapter for all Din-Rail Mountable Products, 2U Height
-
- SFP-M-T
- 1 Gigabit Fiber SFP Transceiver, Multi Mode 550M / LC / 850nm, -40º~85ºC
-
- SFP-S10-T
- 1 Gigabit Fiber SFP Transceiver, Single-Mode 10km / LC / 1310nm, -40º~85ºC
Related Resources
PoE, PoE+ and PoE++: Choosing the Right Industrial Ethernet Switch for You
PoE, PoE+ and PoE++: Choosing the Right Industrial Ethernet Switch for You
May 16, 2022
Advanced Industrial Managed Ethernet Switches
Advanced Industrial Managed Ethernet Switches
October 18, 2018
Technology
IEEE Standards
- IEEE 802.3 10Base-T Ethernet
- IEEE 802.3u 100Base-TX Fast Ethernet
- IEEE 802.3ab 1000Base-T Gigabit Ethernet
- IEEE 802.3z 1000Base-X Gigabit Fiber
- IEEE 802.3x Flow Control
- IEEE 802.1d STP (Spanning Tree Protocol)
- IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
- IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
- ITU-TG.8032 / Y.1344 ERPS (Ethernet Ring Protection Switch)
- IEEE 802.1Q Virtual LANs (VLAN)
- IEEE 802.1x Network Authentication
- IEEE 802.1p QoS/CoS Protocol for Traffic Prioritization
Processing Type
Store and Forward
Protocol
IGMP v1/v2/v3, SNMP v1/v2c/v3, TFTP, SNTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH/SSL, Modbus/TCP, LLDP, IPv4/IPv6
Flow Control
IEEE 802.3x flow control, back pressure flow control
Software
Configuration
- Web Console,
- Telnet,
- CLI
VLAN Group
0~4095 groups
IGMP Group
1024 groups
Ethernet Redundancy
STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2(<50ms)
Performance
MAC Table Size
8K
Memory Buffer
4 Mbits
Transfer Rate
- 14,880pps for Ethernet Port
- 148,800pps for Fast Ethernet Port
- 1,488,000pps for Gigabit Ethernet Port
Switching Architecture
Back-Plane (Switching Fabric): 5.6Gbps
Ethernet Interface
Ethernet Port Count
10 ports
10/100 BASE-T(X)
8 ports
10/100/1000 BASE-T(X)
2 ports
Fiber Interface
Fiber Port Count
2 ports
100/1000 BASE-(F)X SFP
2 ports
Wavelength
Refers to SFP module
Mechanical Characteristics
Housing
Metal, IP30 protection
Mounting
DIN-Rail mount, Wall mount (Optional)
Dimensions (W × H × D)
54 × 142 × 99 mm
Weight
- Unit weight : 2.2 lbs
- Shipping weight : 3.3 lbs
Power Requirements
Power Connection
Removable 6-contact terminal block
Input Voltage
12V–48V DC, Redundant Input
Power Redundancy
Yes
System Power Consumption
15 Watts
Overload Current Protection
Present
Reverse Polarity Protection
Present
Environmental Limits
Operating Temperature
-10° to 70° C (14° to 158° F)
Storage Temperature
-40° to 85° C (-40° to 185° F)
Ambient Relative Humidity
5% to 95% non-condensing
Regulatory Approvals
Certifications
FCC, CE
UL 60950-1
✔
UL 61010-1 / UL 61010-2-201
✔
ISA 12.12.01 (UL C1D2)
✔
NEMA TS2
✔
EMI
- FCC Part 15 Subpart B Class A
- CE EN 55032 Class A
- EN 61000-6-4 Class A
EMS
- CE EN 55024
- EN 61000-6-2
- IEC61000-4-2 (ESD)
- IEC61000-4-3 (RS)
- IEC61000-4-4 (EFT)
- IEC61000-4-5 (Surge)
- IEC61000-4-6 (CS)
- IEC61000-4-8 (Magnetic Field)
Stability Testing
- Free Fall: IEC60068-2-32
- Shock: IEC60068-2-27
- Vibration: IEC60068-2-6
Green
RoHS Compliant
Warranty
5 years
Download
Datasheet
Models
-
- LMX-1202M-SFP-T
- 12-Port Industrial Gigabit Managed Ethernet Switch w/8*10/100Tx, 2*10/100/1000Tx RJ45, and 2*100/1000 SFP Slots. EOT: -40° ~ 75°C
