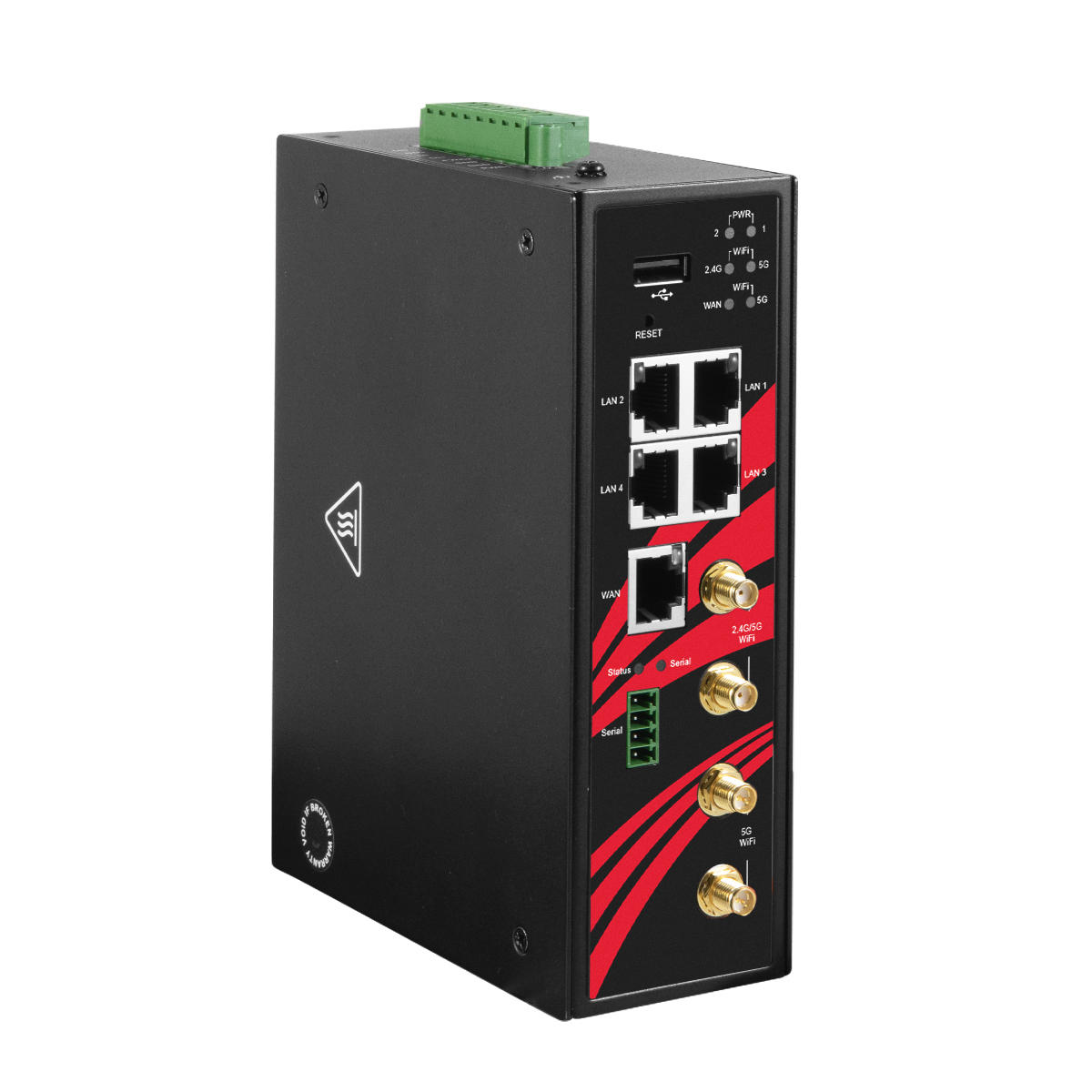

AGS-7230-AC-T
Industrial Wireless IoT Gateway, EOT : -30° C ~ 70° C
0%
Introduction
This AGS-7230-T is loaded with luxuriant security features including VPN, firewall, NAT, port forwarding, DHCP server and many other powerful features for outdoor IP surveillance applications. The redundancy design in fallback 12-48 VDC power terminal.
With built-in 802.11ac/n compliant single band or dual band WiFi module, you just need to find out an available wireless network (or Access Point), and the WiFi VPN Gateway can simply connect to the wireless network and connect your filed devices to the local management center.By VPN tunneling technology, remote sites easily become a part of Intranet, and all data are transmitted in a secure (256-bit AES encryption) link. The feature of DI/DO allows gateway to have real-time response whenever events are detected by sensors. For wireless M2M (Machine-to-Machine) applications, Antaira Wireless Gateway is absolutely the right choice.
Features
- Built-in 802.11ac/n WiFi uplink for wireless M2M application.
- Equipped 802.11n/ac 2T2R 5GHz, and 2.4G/5GHz selectable WiFi access point.
- WiFi Compliance IEEE802.11n/ac 2T2R; Multiple (8) SSIDs for privilege group devices or users.
- 4*GE LAN port with tag based and port based VLANs easily to group control and relocate traffic pattern.
- Equipped with RS232/RS485 interface for Modbus RTU/ASCII and various serial communication protocol, and DI/DO for device triggering or event reporting.
- Equipped with multi-mode data logging function, which stores the collected logs on attached storage for SCADA telemetry.
- Equipped with a comprehensive range of protocols, such as NAT, Routing, and IPv6.
- Featuring various VPN technologies, such as IPSec and OpenVPN, supporting up to 16 concurrent IPSec tunnels with max 100Mbps throughput.
- Embedded with SPI firewall and IPS function, which prevents from cyber attacks.
- SNMP, Telnet & SSH via the CLI, and TR-069 for remote management.
- QoS and Bandwidth management for optimal bandwidth usage.
- Seamless power failover between redundant DC 12V~48V wide range power input.

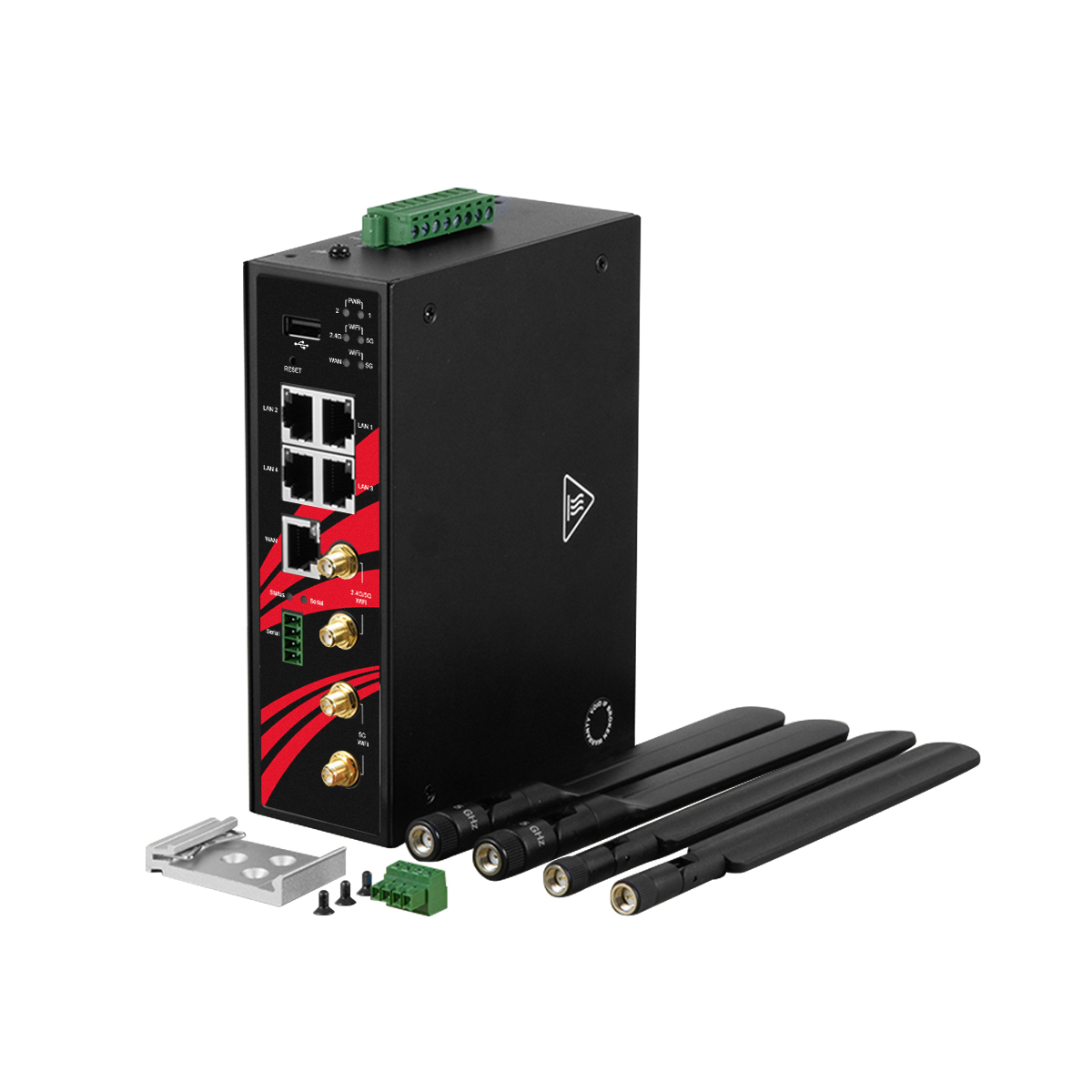

Package Content
- 1 - AGS-7230-AC-T
- 1 - 8 pin Terminal Block
- 1 - 4 pin Terminal Block
- 1 - RJ45 Cable
- 2 - 2.4/5Ghz Antenna
- 2 - 5Ghz Antenna
- 1 - DIN-Rail Bracket
Download
Optional Accessories
-
- HDR-60-24
- 60W Ultra Slim Step Shape DIN Rail, 24VDC Output
-
- NDR-75-12
- 75W Single Output Industrial Din-rail, 12VDC Output
Related Resources
Demo: Using AGS-7130-AC-LTE-T for Smart Facility Management
Demo: Using AGS-7130-AC-LTE-T for Smart Facility Management
April 16, 2020
Technology
IEEE Standards
- IEEE 802.11a/b/g/n/ac
- IEEE 802.3 10Base-T Ethernet
- IEEE 802.3u 100Base-TX Fast Ethernet
- IEEE 802.3ab 1000Base-T Gigabit Ethernet
Processing Type
- CSMA/CA
- Store and Forward
Protocol
IPv4, IPv6, ICMP, TCP, UDP, DHCP Client, SNMP, SMTP, HTTP, DNS, NTP, RADIUS, RFC2217, Syslog, OSPF, BGP
Flow Control
None / RTS, CTS / DTS, DSR for Flow Control in RS-232 mode
WLAN Operation Mode
AP Router, WDS only & WDS Hybrid
WiFi Encryption
WEP, WPA,WPA2, WPA-PSK, WPA2-PSK, 802.1x
Modulation Type
- DSSS with DBPSK, DQPSK, CCK
- OFDM with BPSK, QPSK, 16QAM, 64QAM
- 256QAM for OFDM in 11ac mode only
Topologies
Infrastructure
Transmission Rate
- 802.11b: up to 11Mbps
- 802.11g: up to 54Mbps
- 802.11n: up to 300Mbps
- 802.11ac : up to 866.7Mbps
Data Bits
7,8
Stop Bits
1,2
Parity
None, Even, Odd
Baud Rate
- RS-232: 1200 / 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200
- RS-485 can use higher baud rate for 230400 and 460800.
Serial Signals
- RS-232: TxD, RxD, GND
- RS-485-2W: Data+, Data-, GND
Software
Configuration
Web Console, Telnet, CLI Command
VLAN Group
4094
Wireless Security
WEP, WPA,WPA2, WPA-PSK, WPA2-PSK, 802.1x
Operation Mode
AP Router, WDS only & WDS Hybrid
OS Support
Windows & Linux
Utility Software
Yes
Virtual COM Mode
Yes
Performance
Transfer Rate
- 802.11b: up to 11Mbps
- 802.11g: up to 54Mbps
- 802.11n: up to 300Mbps
- 802.11ac : up to 866.7Mbps
Ethernet Interface
Ethernet Port Count
5 Ports(1*WAN/4*LAN)
10/100/1000 BASE-T(X)
- WAN: 10/100/1000 Mbps
- LAN: 10/100/1000 Mbps
WLAN Interface
Number of Radios
2
WLAN
- IEEE 802.11a/b/g/n/ac
- Dual Radio 2.4GHz/5GHz concurrent
Antenna
- Two External SMA 5Ghz Antennas:
- 5dBi for 5GHz
- Two External SMA 2.4G/5GHz Antennas:
- 3dBi for 2.4GHz, 5dBi for 5GHz
Tx Power
- Max. 19.88dBm for 2.4GHz
- Max. 22.90dBm for 5GHz
Frequency Range
IEEE 802.11a/n
5.180 - 5.815GHz
IEEE 802.11b/g/n (2.4GHz)
2.4G ~ 2.4835GHz
IEEE 802.11a/n/ac (5GHz)
5.15G ~ 5.25GHz
Serial Interface
Serial Port Count
1 Port
Serial Interface
RS-232/485
Other Interface
LED Indicator
PWR1/PWR2,WiFi, WAN,,Serial & Status
USB Port
1*USB 2.0(Logs Storage)
DI / DO
1/ 1

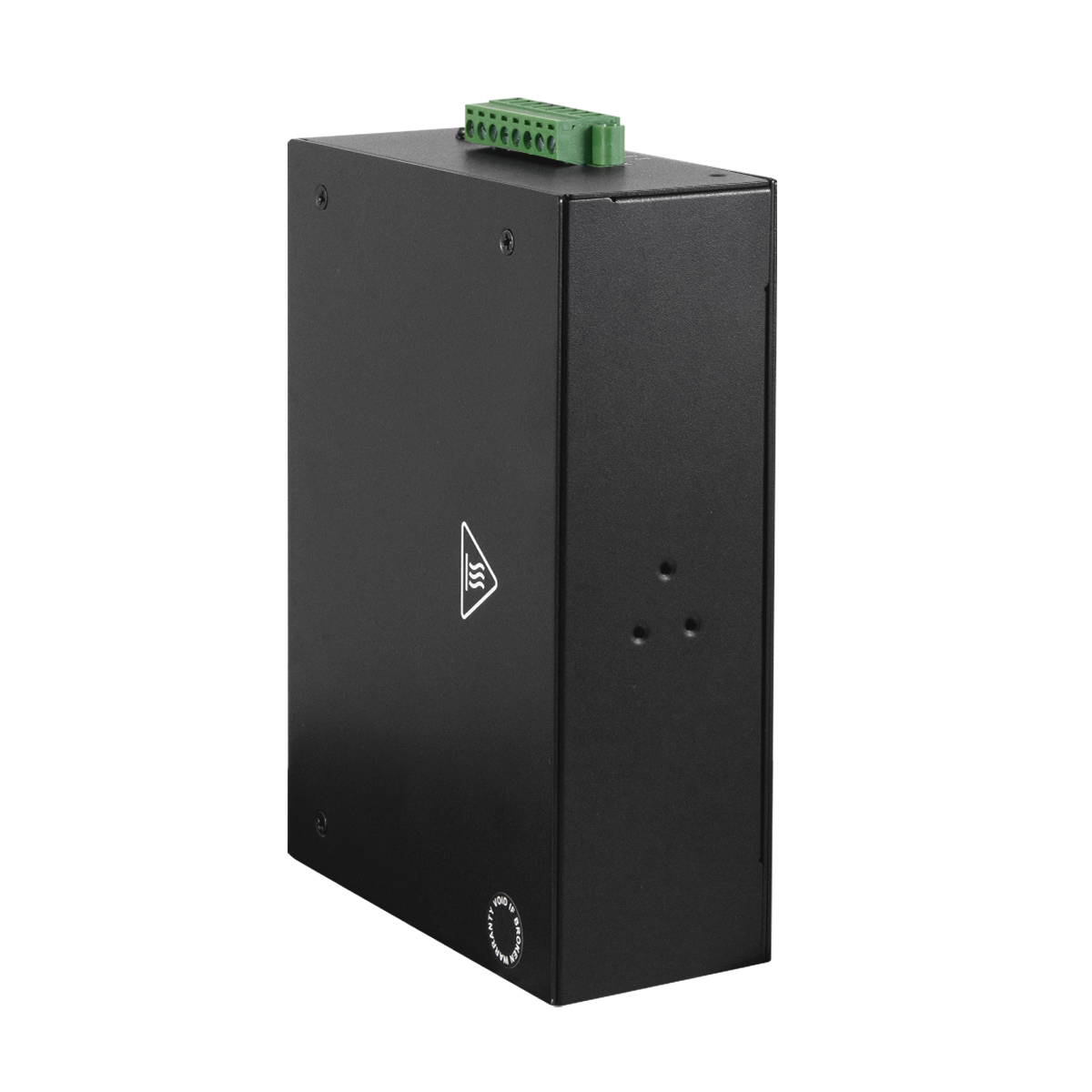

Mechanical Characteristics
Housing
Metal, IP30 protection
Mounting
DIN-Rail mount, Wall mount
Dimensions (W × H × D)
- 62 × 125 × 160mm (w/o mounting kit)
- 62 × 135 × 160mm (with DIN Rail kit)
Weight
1.56 Kg
Power Requirements

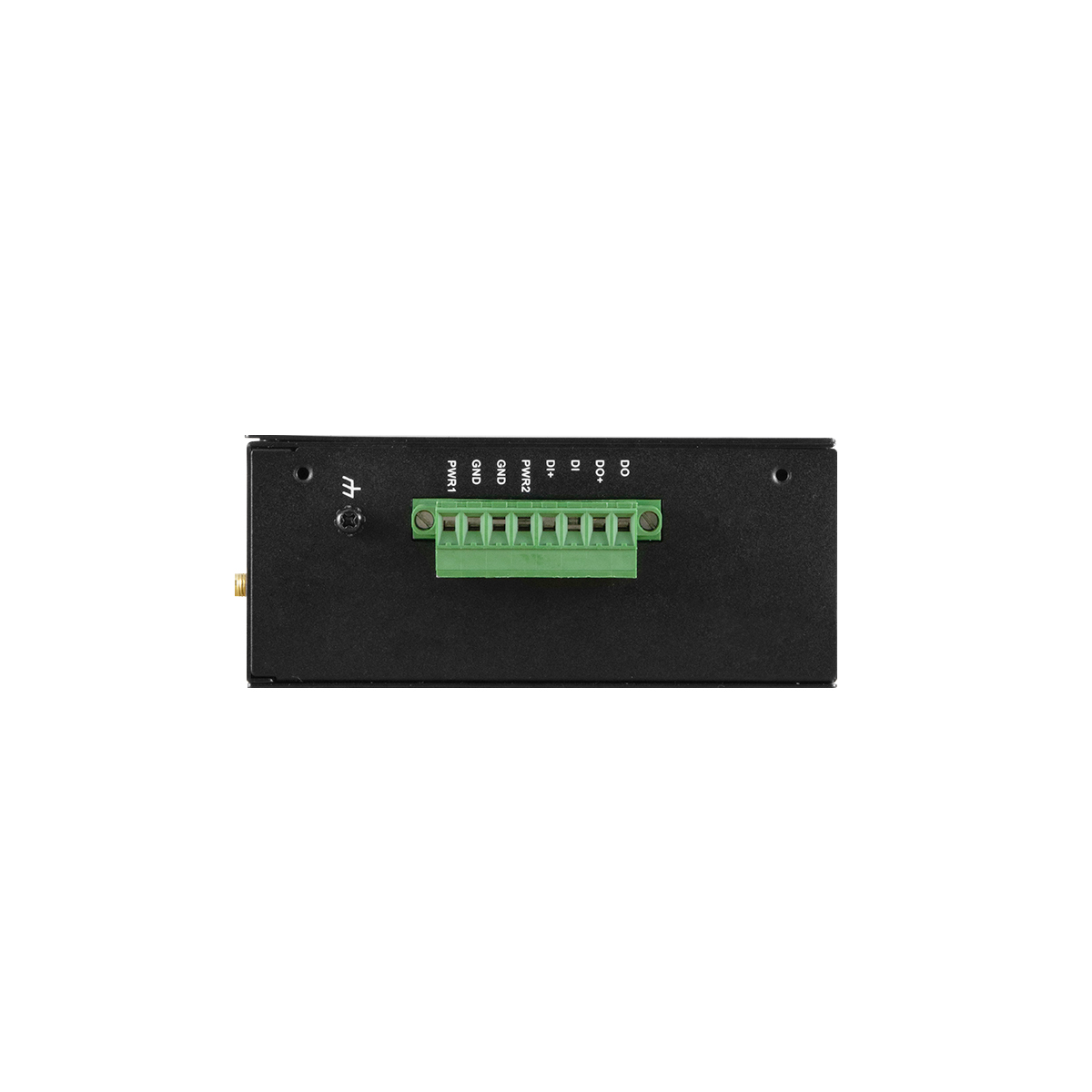

Power Connection
8-pin removal terminal block
Input Voltage
12V–48V DC
Power Redundancy
Dual Power Redundancy
Relay Output
DO(Relay Output)
System Power Consumption
8.17Watts
Reverse Polarity Protection
Present
Surge Protection
2KV
ESD
15KV
Radio Power
- Max. 19.88dBm for 2.4GHz
- Max. 22.90dBm for 5GHz
Environmental Limits
Operating Temperature
-30° to 70° C (-22° to 158° F)
Storage Temperature
-40° to 85° C (-40° to 185° F)
Ambient Relative Humidity
10% to 95% non-condensing
Regulatory Approvals
Certifications
FCC,CE
EMI
- EN 55032: 2015 +AC: 2016 Class B
- EN 61000-3-2:2014
- EN 61000-3-3:2013
EMS
- EN 55024:2010+A1:2015
- EN 61000-6-2:2005+AC:2005
- IEC 61000-4-2(ESD) Level 4
- IEC 61000-4-3(RS) Level 3
- IEC 61000-4-4(EFT) Level 4
- IEC 61000-4-5(Surge) Level 3
- IEC 61000-4-6(CS) Level 3
- IEC 61000-4-8(PFMF) Level 4
RF
- EN 301 489-1/-7/-17/-24/-52,
- EN 300 328 V2.1.1
- EN 301 893 V1.8.1, EN 50385
Safety
EN60950-1
MTBF
285605.3 hrs
Green
RoHS Compliant
Warranty
5 years
Download
Datasheet
