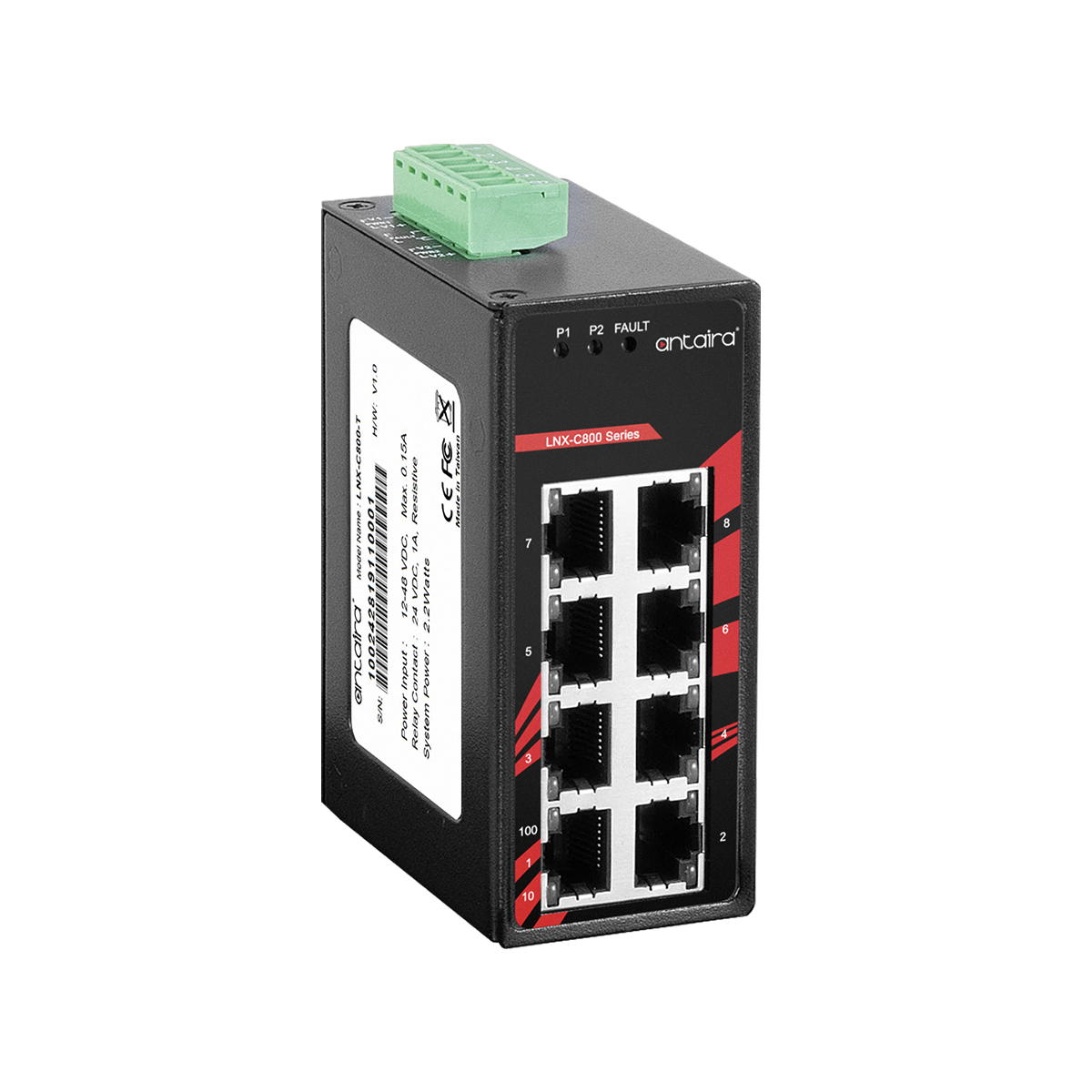

Antaira Technologies’ LNX-C800-T is a compact 8-port industrial Ethernet switch. The small form factor of this metal IP30 rated industrial switch is 30% smaller allowing for a more versatile implementation. This model is equipped with 8*10/100Tx RJ45 Ethernet ports. Its industrial-grade design and compact size make this the ideal unit for integration into projects or other applications that need a small footprint.
LNX-C800-T supports reverse polarity and overload current protection. This model supports DIN-rail as well as wall-mountable orientations and provides extended operating temperature range models in -40° to 75° C. This is an industrial-grade unit applicable for networking applications in factory automation, ITS, power/utility, water wastewater treatment plants, or any application that needs a compact solution.
- Compact Industrial Grade Design
- Supports 8-Port 10/100Tx RJ45 Fast Ethernet
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture

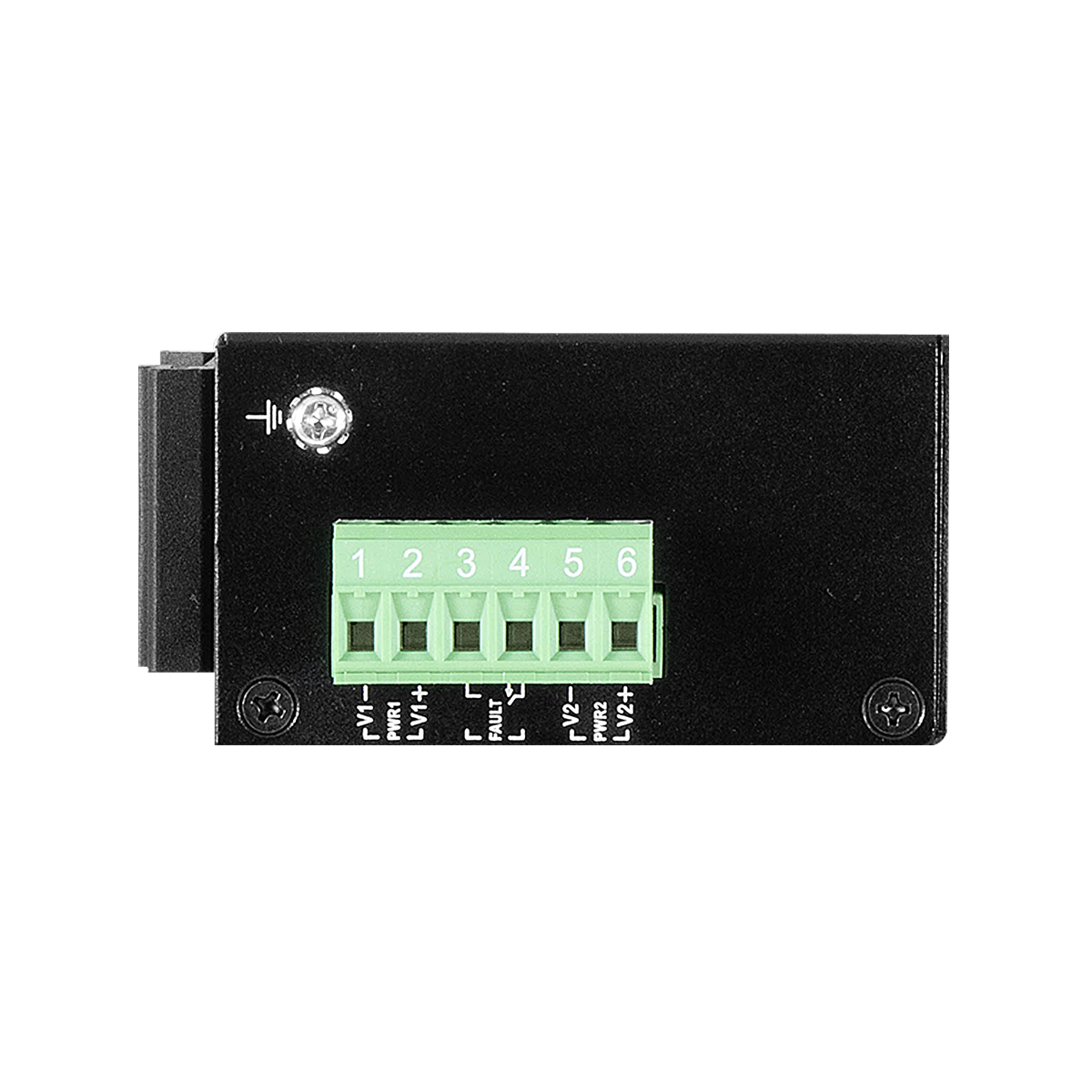

- Redundant Power Input Design: 12~48VDC
- Power Polarity Reverse Protect
- Overload Current Protection
- IP30 Rugged Metal Case Design

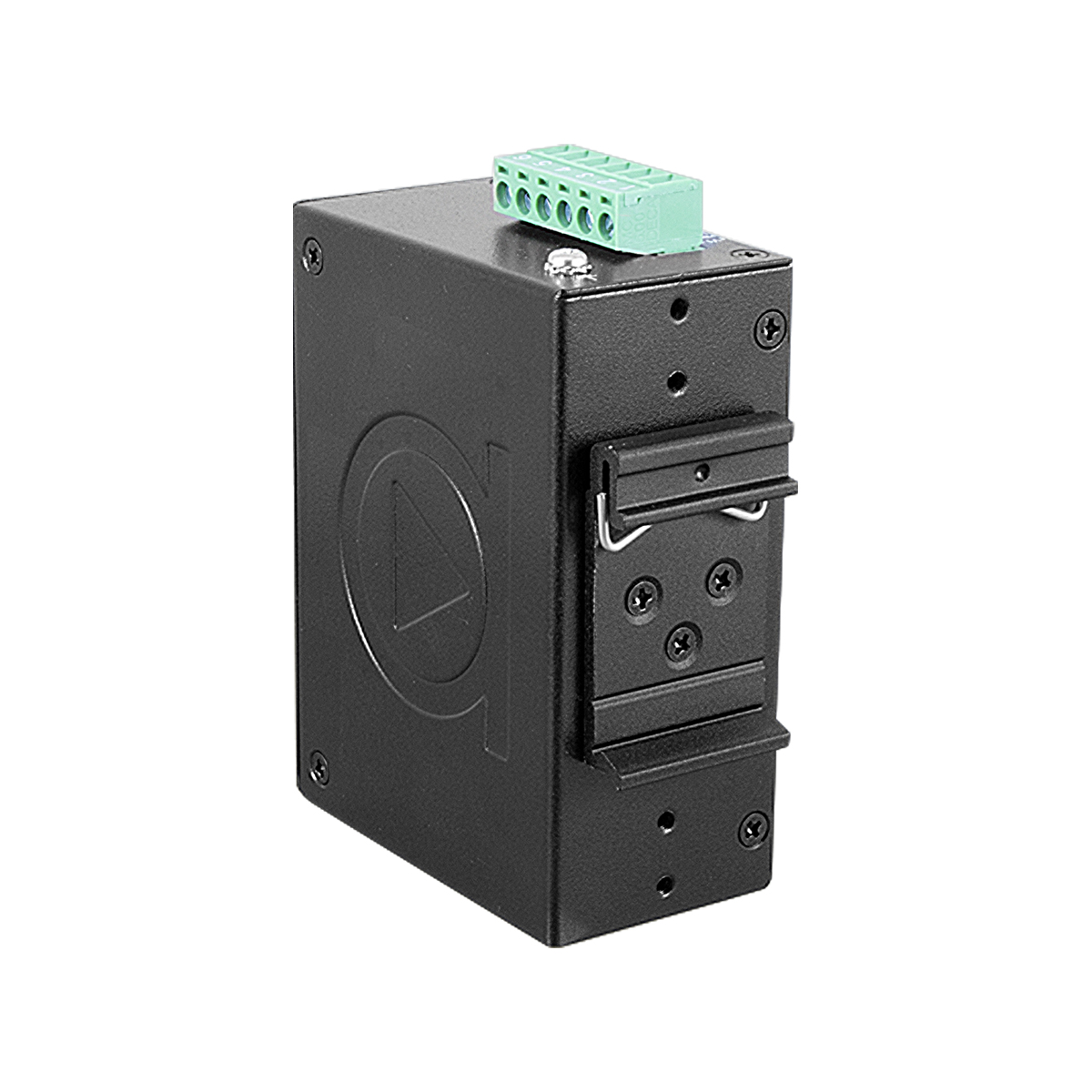

- DIN-Rail and Wall Mount Support
- Operation Temperature Range: -40°C to 75°C
- 5-Year Warranty

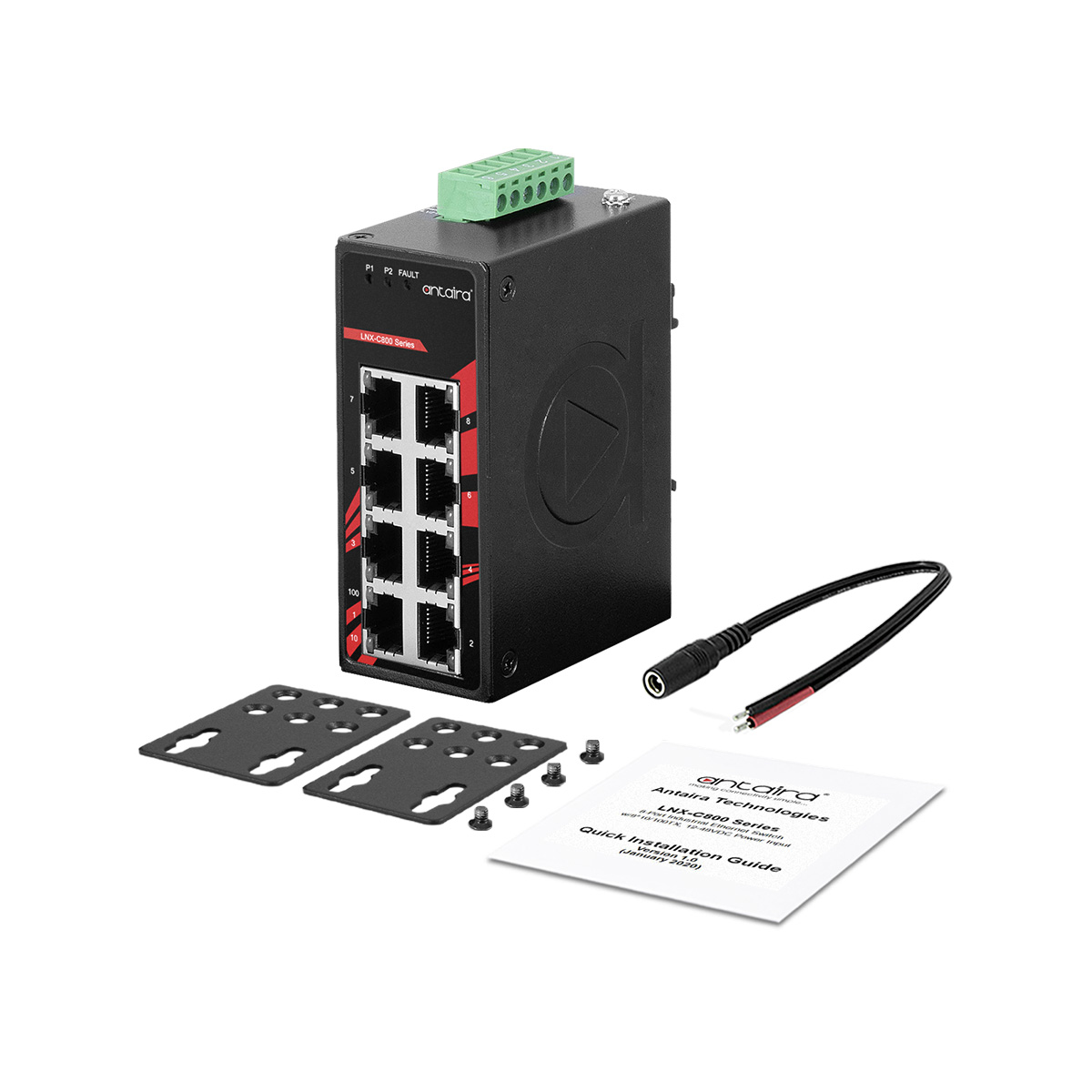

- DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
- LNX-C800-T
- Quick Installation Guide
- RJ45 dust cover set
- Wall mounting bracket set with screws
- IEEE 802.3 10Base-T Ethernet
- IEEE 802.3u 100Base-TX Fast Ethernet
- 14,880pps for Ethernet Port
- 148,800pps for Fast Ethernet Port
- Unit weight : 0.74 lbs
- Shipping weight : 1.05 lbs
- FCC Part 15 Subpart B Class A
- CE EN 55032 Class A
- EN 61000-6-4 Class A
- CE EN 55035
- EN 61000-6-2
- IEC61000-4-2 (ESD)
- IEC61000-4-3 (RS)
- IEC61000-4-4 (EFT)
- IEC61000-4-5 (Surge)
- IEC61000-4-6 (CS)
- IEC61000-4-8 (Magnetic Field)
- Free Fall: IEC60068-2-32
- Shock: IEC60068-2-27
- Vibration: IEC60068-2-6
