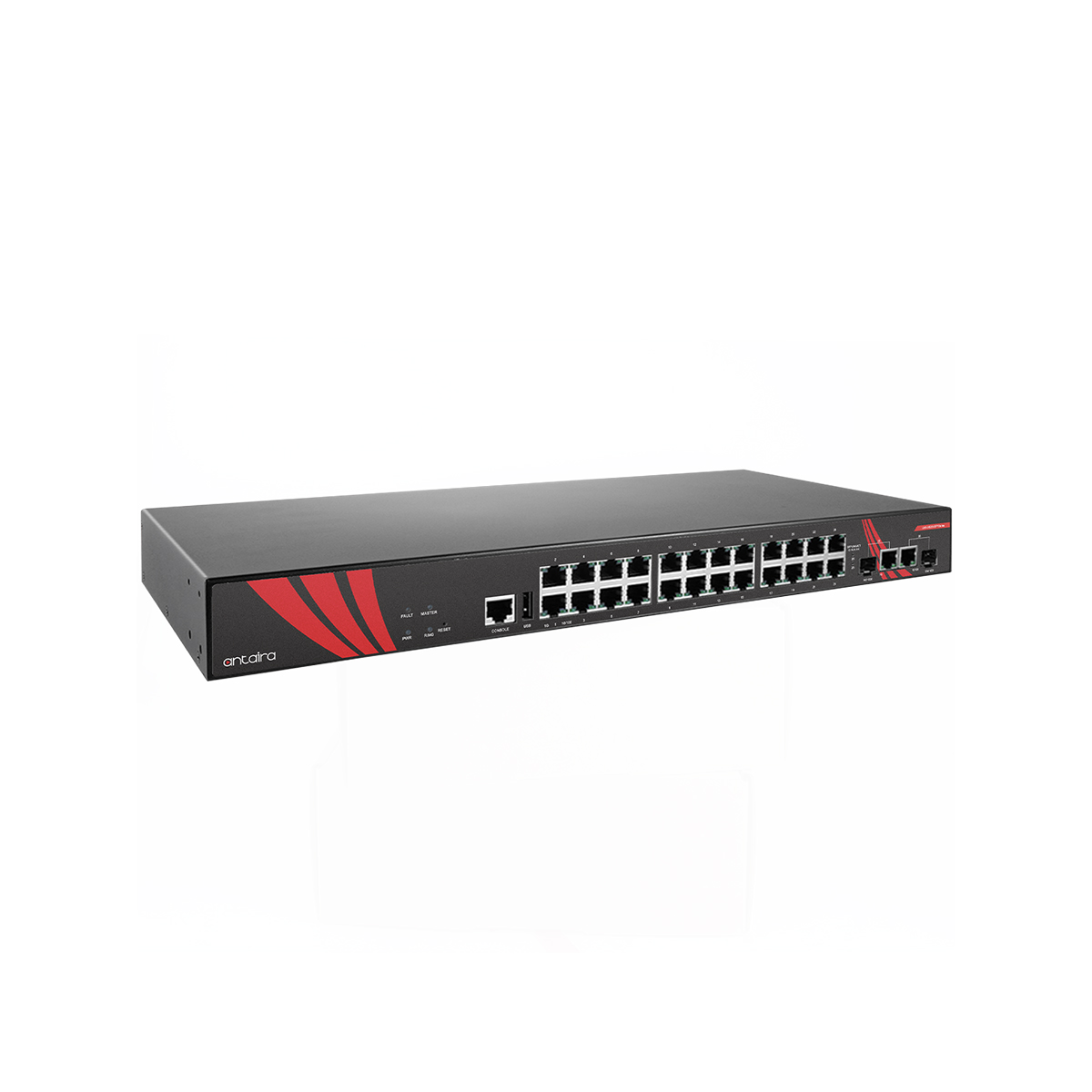

Antaira Technologies’ LMX-2602G-SFP is a 26-port industrial gigabit managed Ethernet switch, Supporting operating temperatur of -40° to 75˚C. It features 24*10/100/1000Tx Ethernet ports and also provides 2*gigabit combo ports with 2*10/100/1000Tx RJ45 and 2*100/1000Fx SFP slots for fiber or twisted pair connections. This product is ideal for applications that demand high density of port connectivity, wide bandwidth and long-distance communication.
The LMX-2602G-SFP series is a fully manageable Layer 2 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, port lock, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.
The LMX-2602G-SFP series is designed with IP40 rated 1U 19” rackmount. Supporting the two wide operating temperature models with the standard version in -10° to 65˚C and extended version in -40° to 75˚C also makes it the best solution for any harsh and extreme ambient weather environment applications, such as power/utility, transportation, water wastewater treatment plant, oil/gas, and security surveillance system industries.
- 24-port 10/100/1000Tx Ethernet
- 2*Gigabit Combo Ports (2*10/100/1000Tx RJ45 and 2*100/1000 SFP Slots)
- Configuration: http, https, CLI Command, Telnet, SNMP, SSH
- Network redundancy support: G.8032 ERPS v2/STP/RSTP/MSTP
- System Power Input: 100~240VAC

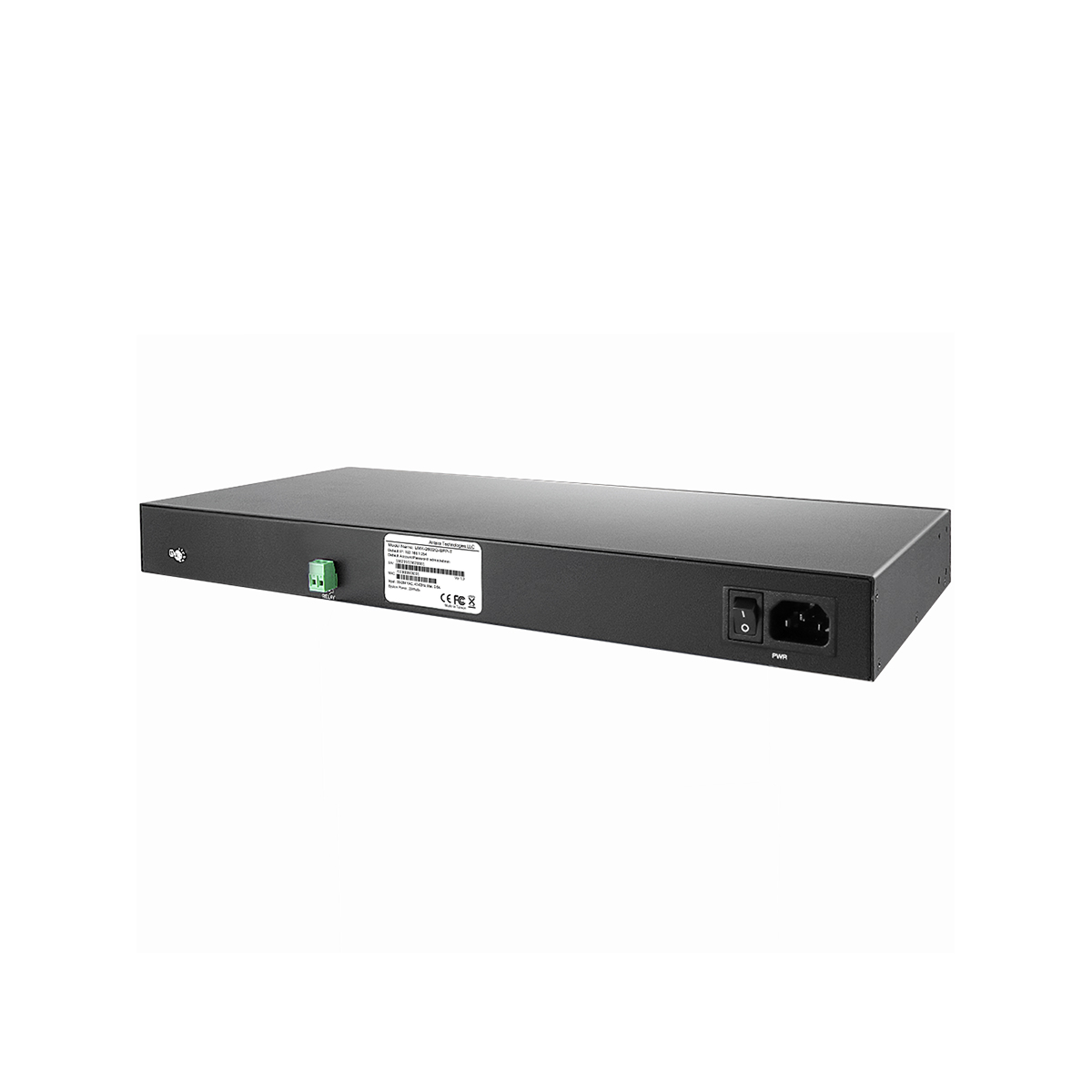

- Built-in Relay Output Warning for Power Failure
- IP40 Rugged Metal Case Design
- 19” Rack-Mounting Installation Design
- Operating Temperature Range - EOT: -40°C to 75°C
- 5-Year Warranty

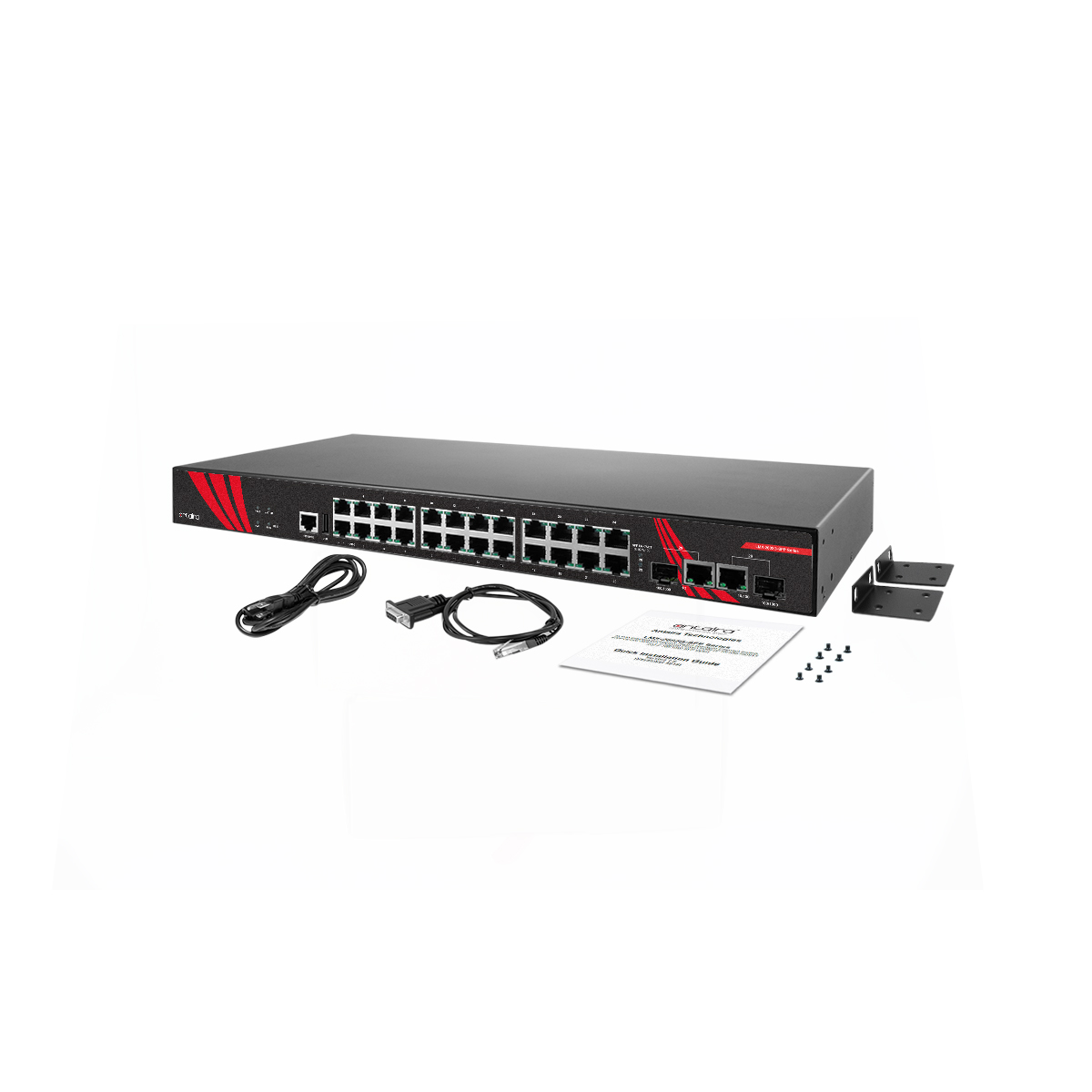

- 1 – LMX-2602G-SFP-T
- 1 – Quick Installation Guide
- 1 – Rack mount kit
- 1 – RJ45 to DB9 serial console cable
- 1– AC Power Cord Cable
- IEEE 802.3u 100Base-TX Fast Ethernet
- IEEE 802.3ab 1000Base-T Gigabit Ethernet
- IEEE 802.3z 1000Base-X Gigabit Fiber
- IEEE 802.3x Flow Control
- IEEE 802.1d STP (Spanning Tree Protocol)
- IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
- IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
- ITU-T G.8032 / Y.1344 ERPS v1/v2(Ethernet Ring Protection Switch)
- IEEE 802.1Q Virtual Local Area Network (VLAN)
- IEEE 802.1p QoS/CoS Protocol for Traffic Prioritization
- IEEE 802.1X Network Authentication
- IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
- IEEE 802.3ad Link Aggregation (LACP)
- 14,880pps for Ethernet Port
- 148,800pps for Fast Ethernet Port
- 1,488,000pps for Gigabit Ethernet Port
- System: Power, Master, Ring, Fault
- Ethernet ports: Speed/Link/Active
- SFP: Link/Active
- Unit weight : 5.92 lbs
- Shipping: 7.87 lbs
- FCC Part 15 Subpart B Class A,
- CE EN61000-6-4 Class A
- CE EN61000-6-2 :
- IEC61000-4-2 (ESD)
- IEC61000-4-3 (RS)
- IEC61000-4-4 (EFT)
- IEC61000-4-5 (Surge)
- IEC61000-4-6 (CS)
- IEC61000-4-8 (Magnetic Field)
- Free Fall: IEC60068-2-32
- Shock: IEC60068-2-27
- Vibration: IEC60068-2-6
-
- LMX-2602G-SFP
- 26-Port Industrial Gigabit Managed Ethernet Switch, w/24*10/100/1000Tx RJ45 and 2*Gigabit Combo Ports (2*10/100/1000Tx RJ45 and 2*100/1000 SFP Slots); STD: -10°C to 65°C
