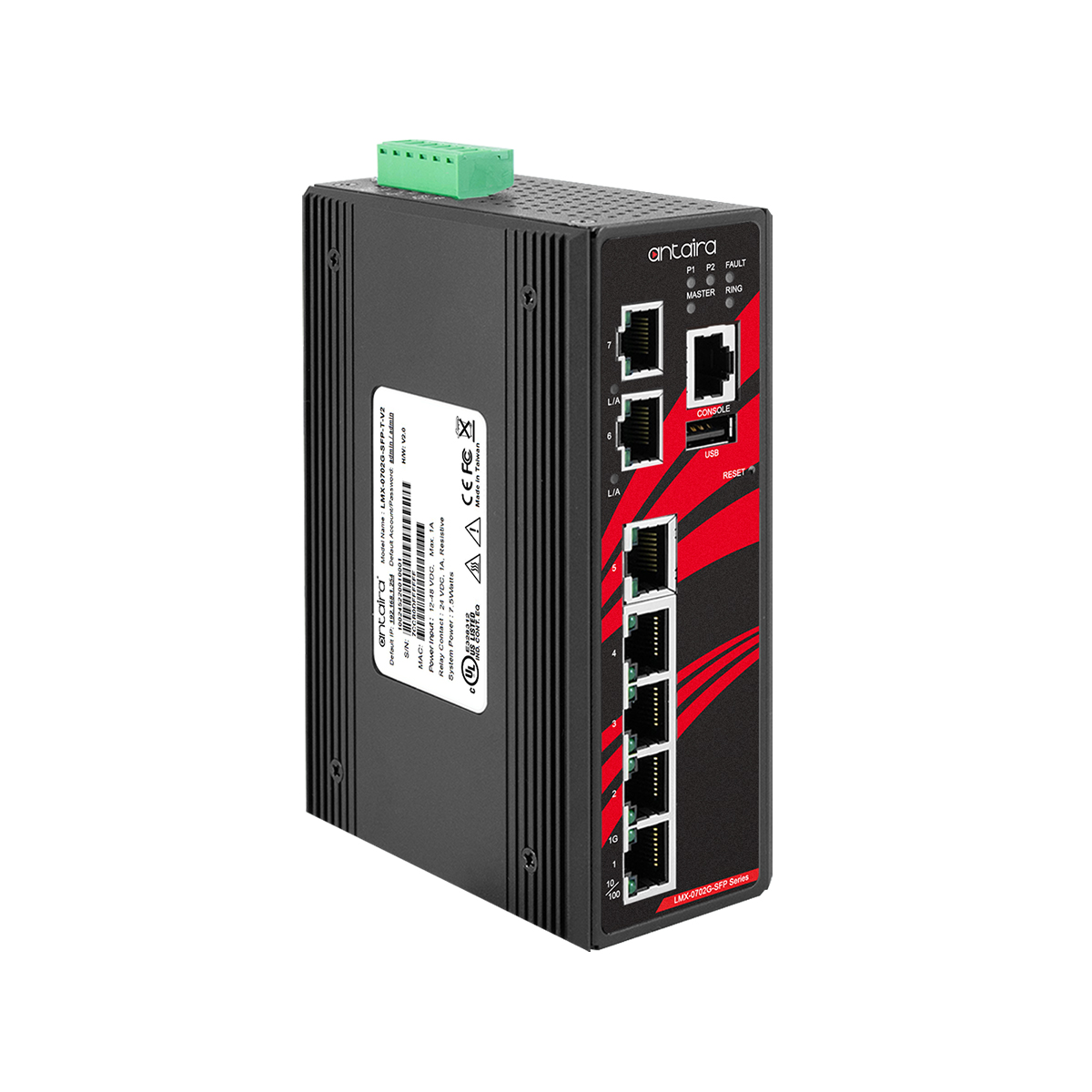

Antaira Technologies’ LMX-0702G-SFP-T-V2 is a 7-port industrial Gigabit managed Ethernet switch embedded with 5*10/100/1000Tx Ethernet ports and 2*100/1000 SFP slots. The LMX-0702G-SFP-T-V2 is a fully manageable Light Layer 3 Ethernet switch that is pre-loaded with a user?friendly web management console design. It supports a ring network redundancy function using the market’s open standard ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.
The LMX-0702G-SFP-T-V2 is IP30 rated and DIN-rail mountable. The operating temperature of this model is extended temperature ranges from -40°C to 75°C. It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS and any other outdoor or harsh environment.
- Supports 5*10/100/1000Tx Fast Ethernet Ports and 2*100/1000 SFP Slots
- Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
- Configuration: Web Console, Telnet, CLI Command
- Supports IGMP v1/v2/v3, up to 1024 Groups
- Supports QoS (IEEE802.1p) and CoS/ToS
- Supports IEEE802.1Q VLAN, SNMP v1/v2c/v3
- System Warning Setting for Automatic Warning through E-Mail

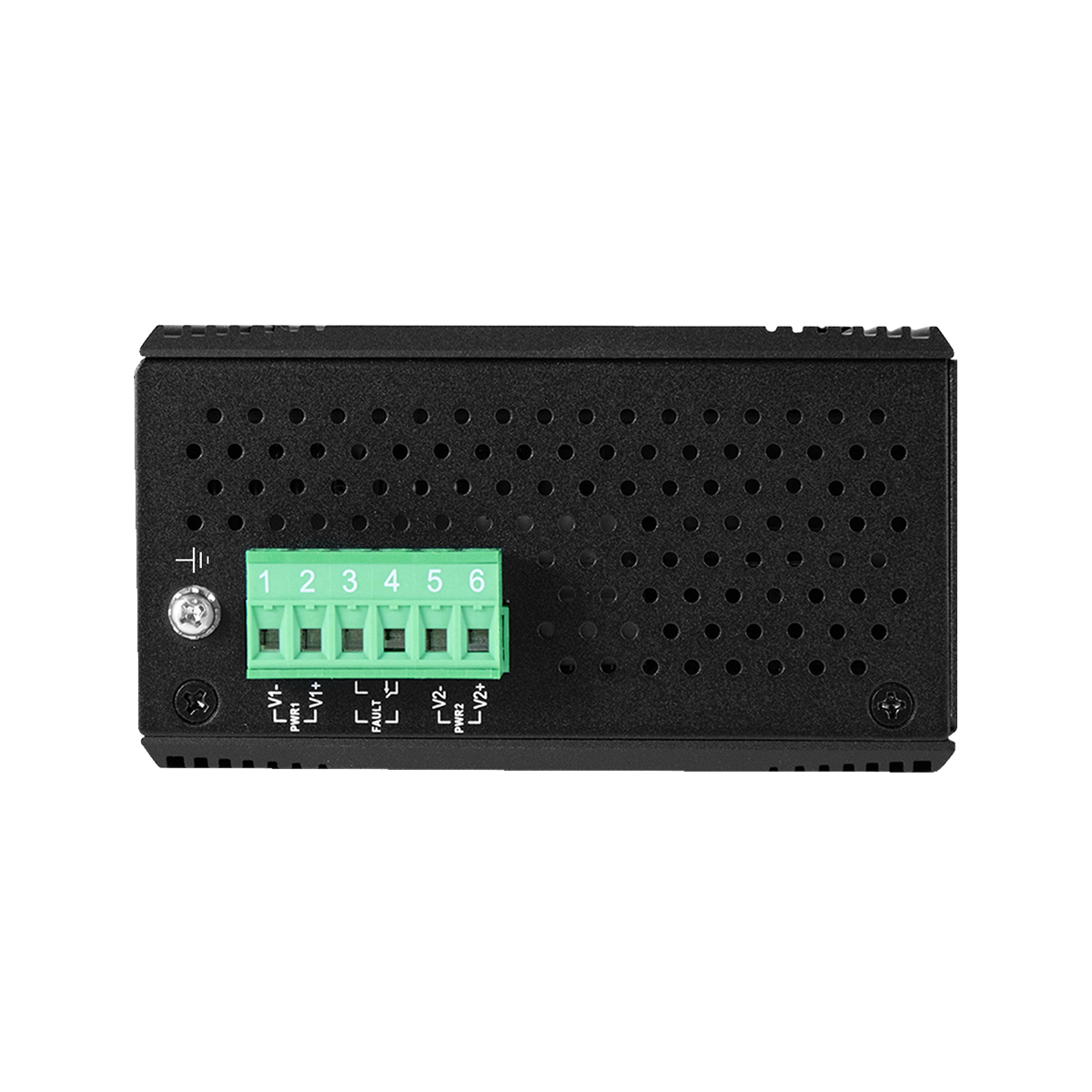

- Power Input: 12~48VDC in 6-Pin Terminal Block
- Reverse Polarity Protection
- IP30 Protection

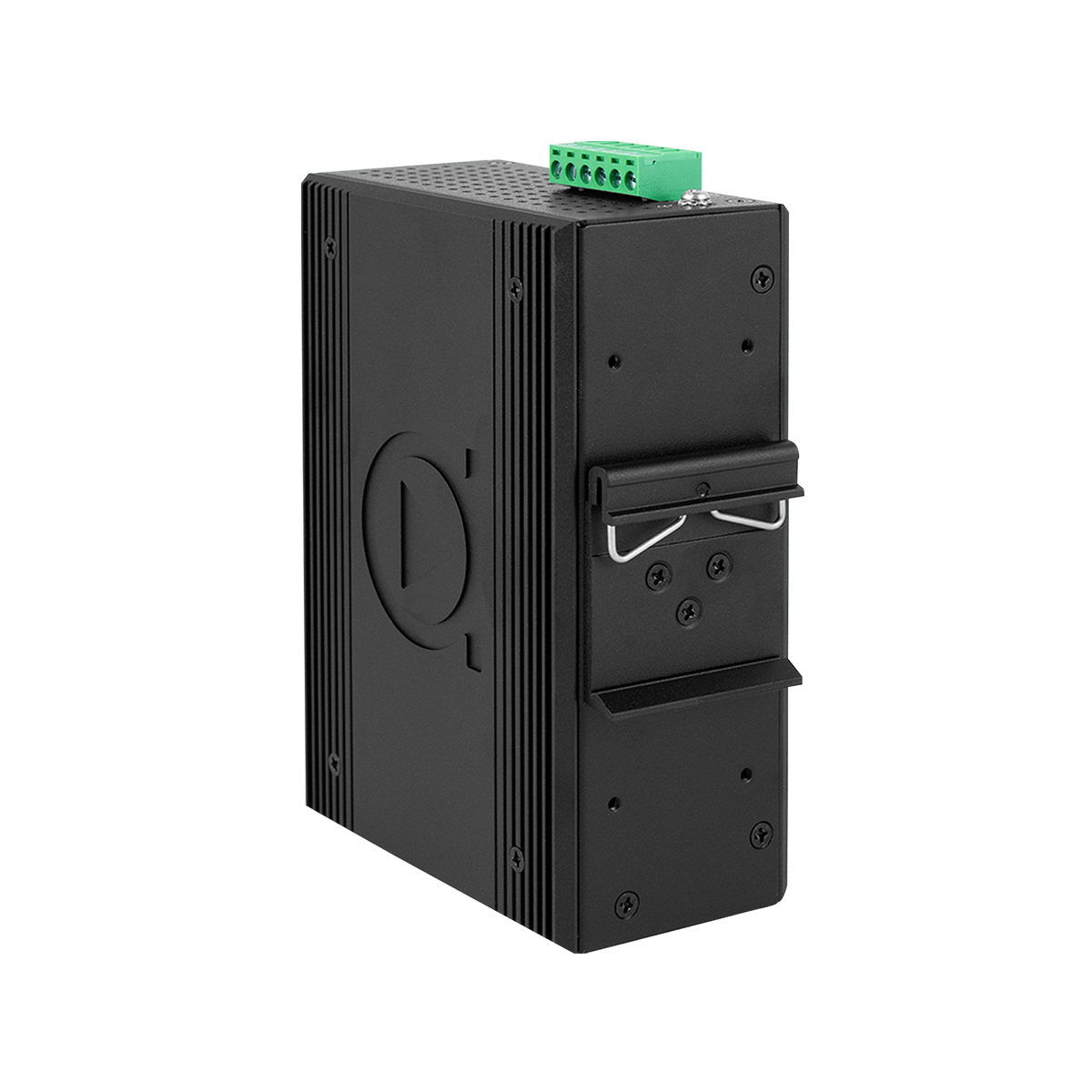

- DIN-Rail or Wall Mountable
- Operating Temperature Range
- EOT: -40° to 75°C
- 5-Year Warranty

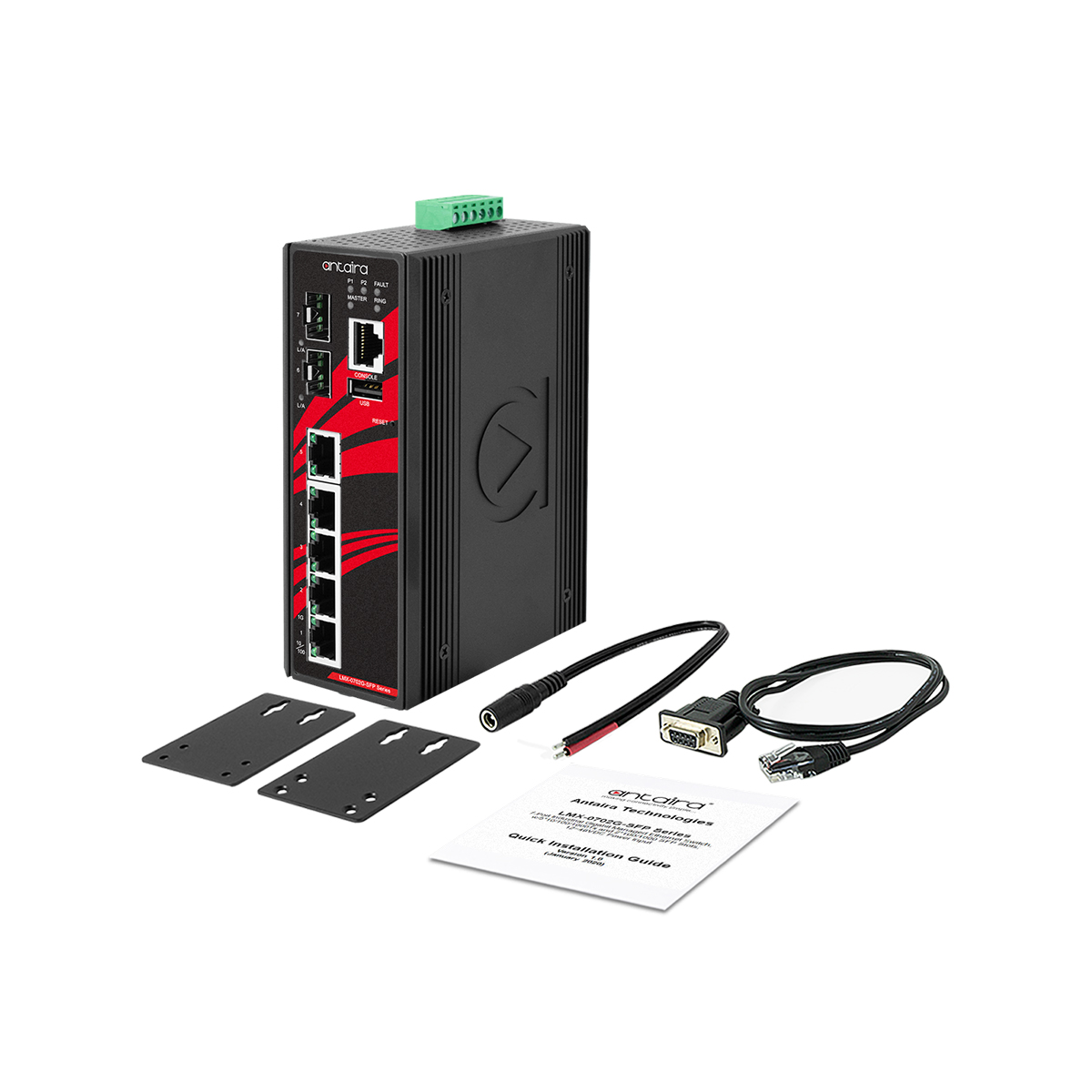

- 1 – LMX-0702G-SFP-T-V2
- 1 – Quick Installation Guide
- 1 – Wall mounting bracket set with screws
- 1 – DC cable – 18 AWG & DC jack 5.5 x 2.1mm
- IEEE 802.3 10Base-T Ethernet
- IEEE 802.3u 100Base-TX Fast Ethernet
- IEEE 802.3ab 1000Base-T Gigabit Ethernet
- IEEE 802.3z 1000Base-X Gigabit Fiber
- IEEE 802.3x Flow Control
- IEEE 802.1d STP (Spanning Tree Protocol)
- IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
- IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
- ITU-TG.8032 / Y.1344 ERPS (Ethernet Ring Protection Switch)
- IEEE 802.1Q Virtual LANs (VLAN)
- IEEE 802.1x Network Authentication
- IEEE 802.1p QoS/CoS Protocol for Traffic Prioritization
- IEEE 802.1ad Stacked VLAN Q-in-Q
- 14,880pps for Ethernet Port
- 148,800pps for Fast Ethernet Port
- 1,488,000pps for Gigabit Ethernet Port
- Power 1, Power 2, Fault, Master, Ring: On / Off
- Fiber Port: Link / Act
- Ethernet Port: Link / Act
- Unit weight : 1.9 lbs
- Shipping weight : 2.7 lbs
- FCC Part 15 Subpart B Class A,
- CE EN55032 Class A
- EN61000-6-4 Class A
- CE EN55035/EN 61000-6-2
- IEC61000-4-2 (ESD)
- IEC61000-4-3 (RS)
- IEC61000-4-4 (EFT)
- IEC61000-4-5 (Surge)
- IEC61000-4-6 (CS)
- IEC61000-4-8 (Magnetic Field)
- Free Fall: IEC60068-2-32
- Shock: IEC60068-2-27
- Vibration: IEC60068-2-6
-
- LMX-0702G-SFP-V2
- 7-Port Industrial Managed Ethernet Switch w/5*10/100/1000Tx and 2*100/1000 SFP Slots (Version 2 Hardware)
