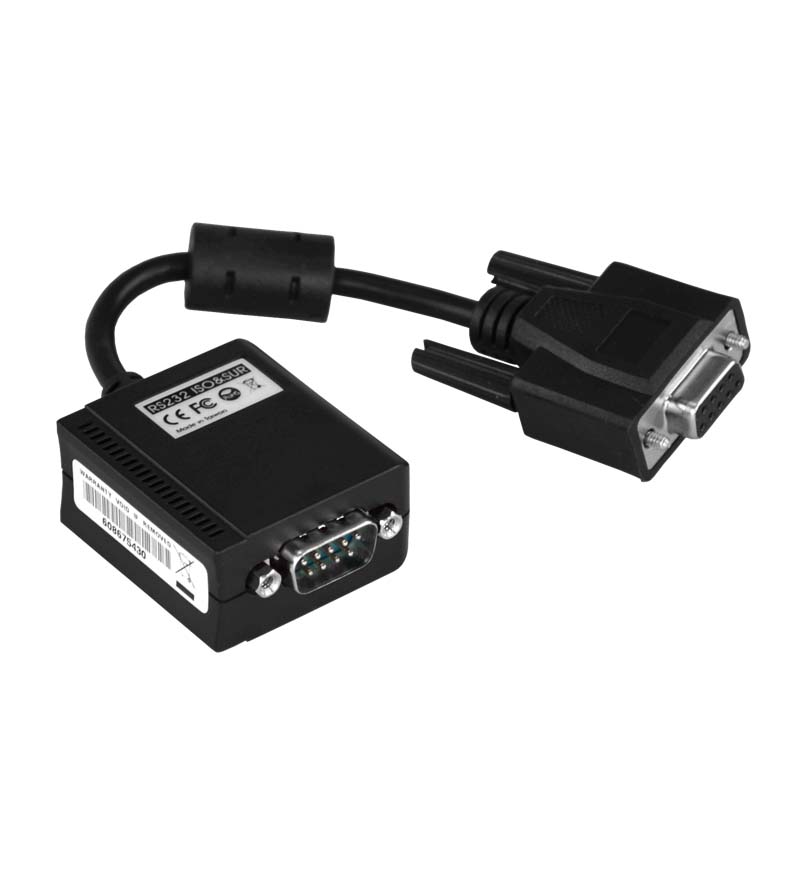

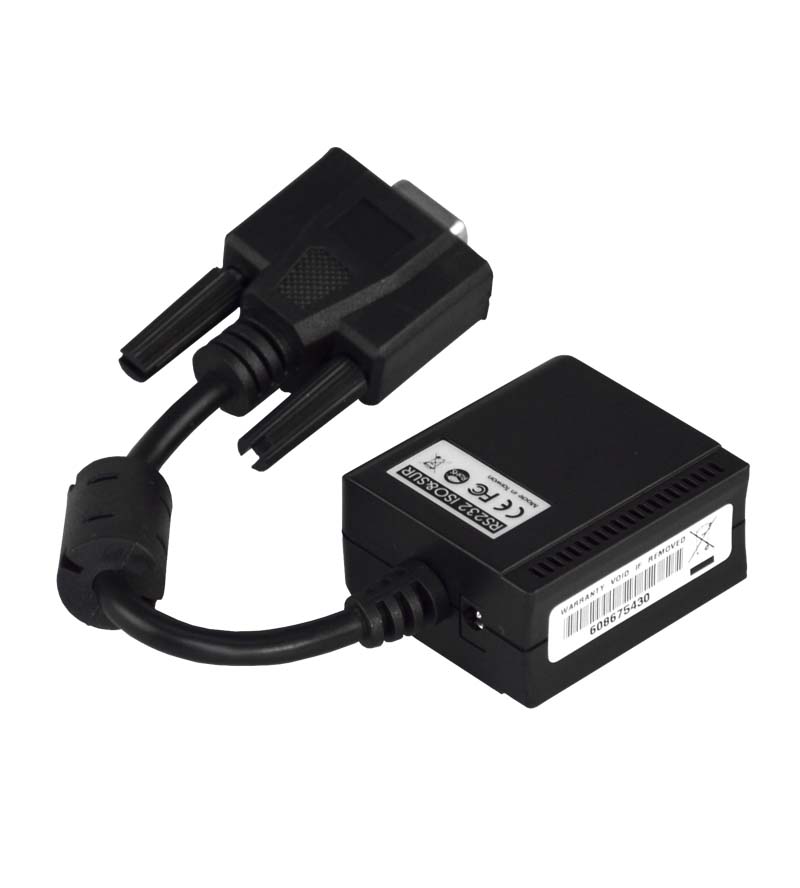

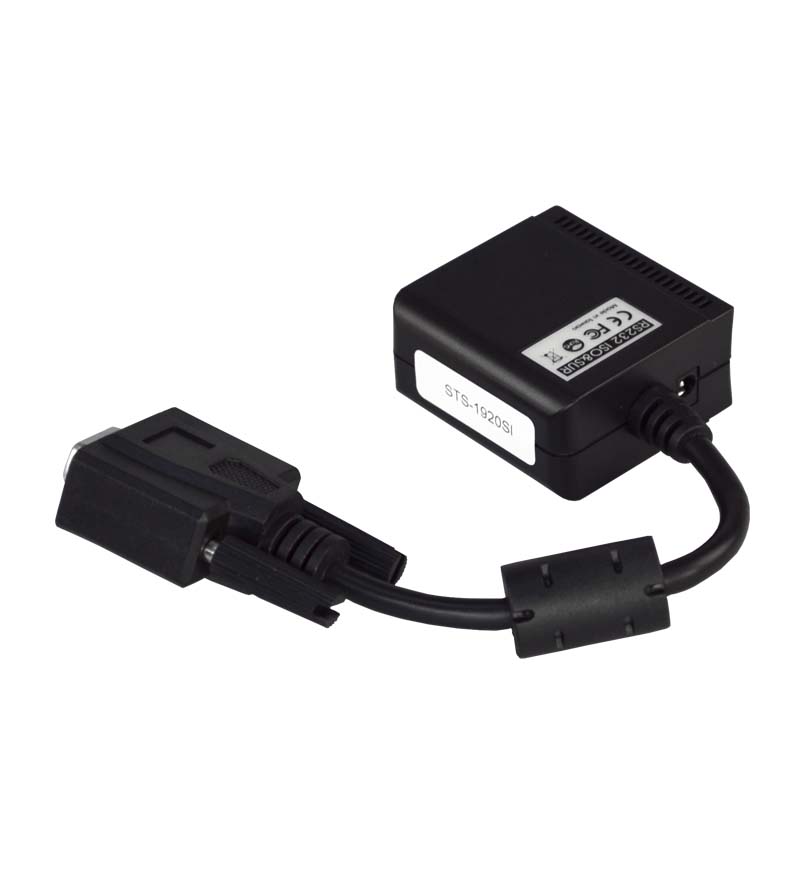

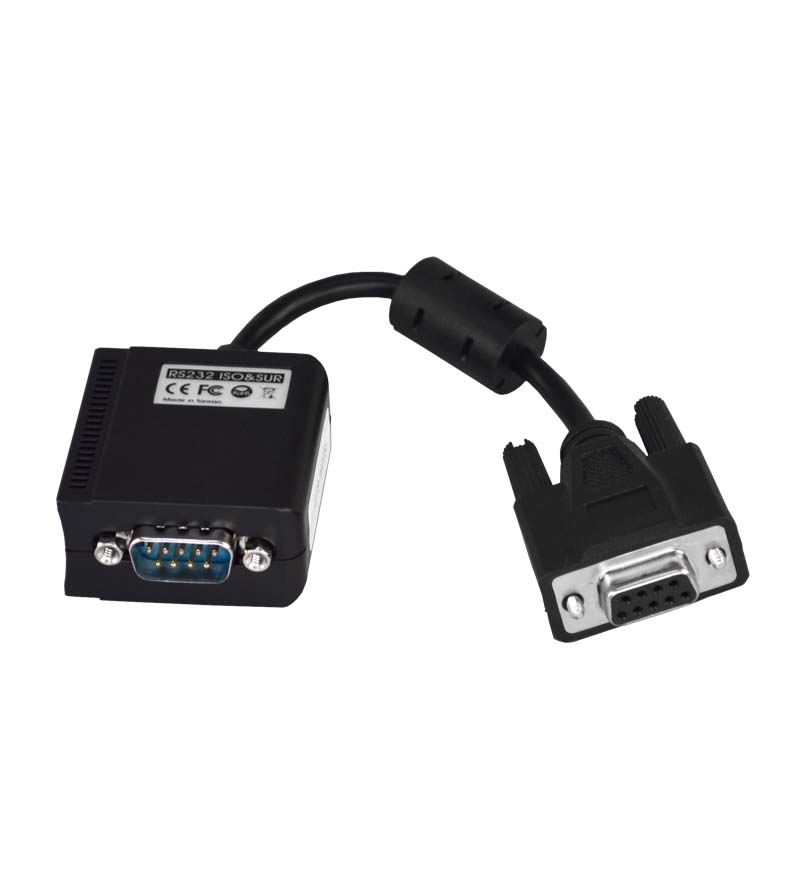

STS-1920SI
RS232 To RS232 Repeater with Surge and 3-way Isolation Protection
0%
Introduction
The STS-1920SI RS-232 to RS-232 Isolation Adapter is designed for your PC, workstation, thin client, or server to provide an instant isolation solution to the serial devices.
The STS-1920SI is equipped with a DB9 female connector that can be connected directly to your PC. Its advanced power circuits can get the power from standard RS-232 signals.
The STS-1920SI is compatible with new and legacy RS-232 devices. It is easy to install and use without turning your PC's power off. It provides the scalability to quickly adapt to new RS-232 technologies to provide an instant isolation and surge protection solution.
Features
- Provides one RS-232 to RS-232 Adaptation
- Supports up to 2,500Vrms 3-way Isolation on Input, output, and power (RXD, TXD, GND)
- Supports 500 Watt Surge Protection
- Supports DB9 Female (DCE) to DB9 Male (DTE) Connector Conversion
- Supports Baud Rate up to 921.6 Kbps
- +5V DC External Power is Required, Powered by AC Adapter or USB Port with USB-to-DC-Jack Cable
- Compact Size for Critical Applications
- No Driver Required for All Operating Systems
Package Content
- STS-1920SI
- Installation Guide
- External Power Adapter
- USB Power Cable
Download
Related Resources
Technology
Baud Rate
Up to 921.6 Kbps
Serial Signals
- DCE: TxD, RxD, GND
- DTE: TxD, RxD, GND
Performance
Transfer Rate
Up to 921.6 Kbps
Serial Interface
Serial Port Count
2 ports
Serial Interface
RS-232
Power Requirements
Relay Output
DC jack
Isolation Protection
2500Vrms
Surge Protection
500W
ESD
15KV
Environmental Limits
Operating Temperature
0° to 60° C (32° to 140° F)
Storage Temperature
-20° to 85° C (-4° to 185° F)
Ambient Relative Humidity
5% to 95% non-condensing
Regulatory Approvals
Green
RoHS Compliant
Warranty
5 years
