FCU-3003-SC
10/100/1000Tx To 1000LX Media Converter, Multi-Mode 550M, SC Connector
Product WarrantySee details >
0%
Introduction

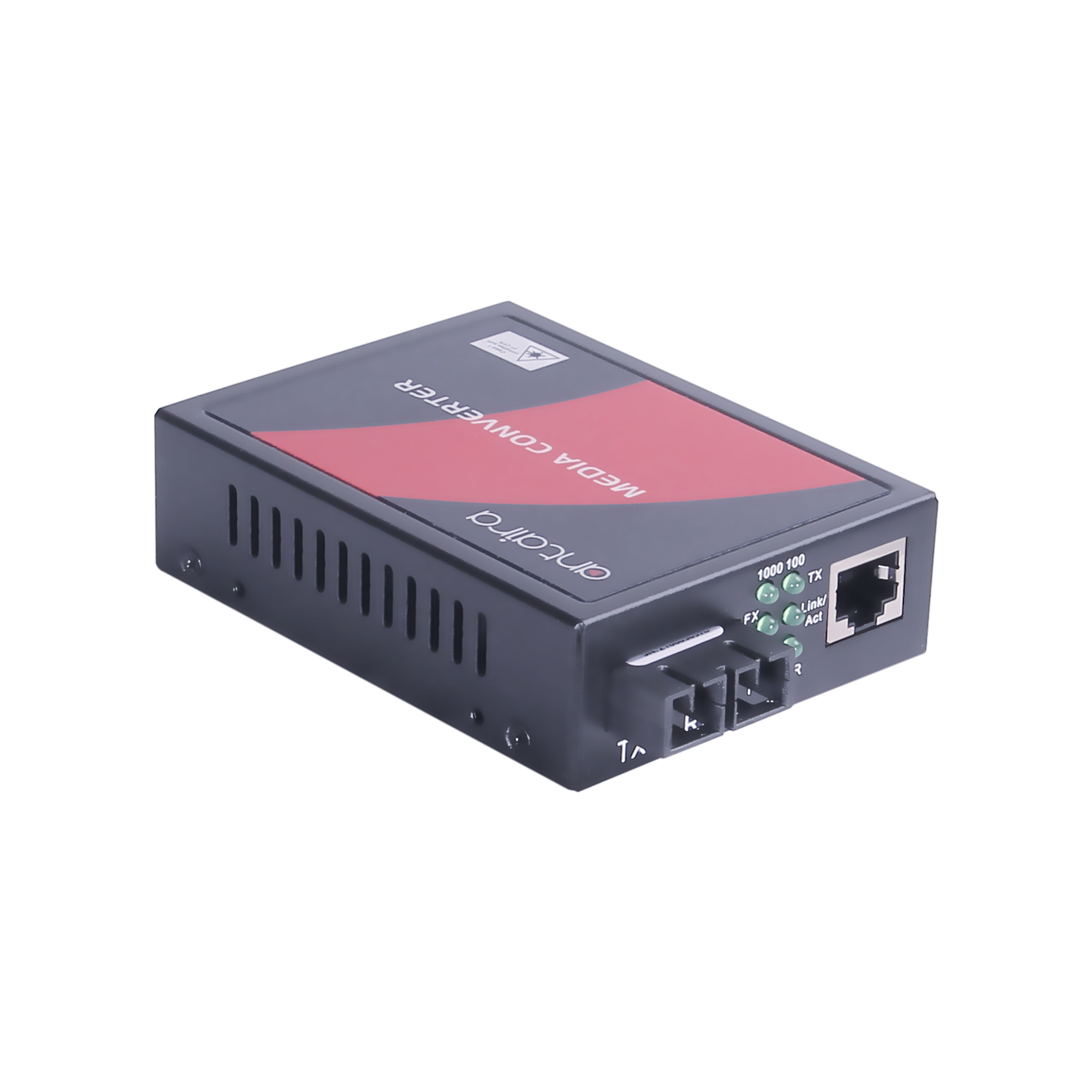

Antaira Technologies’ FCU-3033-SC is a compact, single or multi-mode Gigabit media converter. The FCU-3033-SC will take 10/100/1000BaseT copper Ethernet and convert it to 1000BaseX fiber. The FCU-3033-SC Series features a standard SC fiber connector as well as the STP-RJ45 Ethernet connector. The copper media converter is fully compliant with IEEE 802.3z and 802.3u Fast Ethernet standards. The industrial media converter features LED diagnostics for power, activity, link, and Full/Half Duplex operations. The FCU-3033-SC gigabit media converter uses multimode 850NM fiber with an SC connector and is capable of communication of up to 550 meters.
Features
- Complies with IEEE 802.3/u/ab 10/100/1000BaseTx
- Complies with IEEE 802.3z 1000BaseFx
- Supports SC Connector
- Store and Forward Switching Architecture
- Supports 1.6Kbytes Jumbo Frame
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support
- 5-Year Warranty

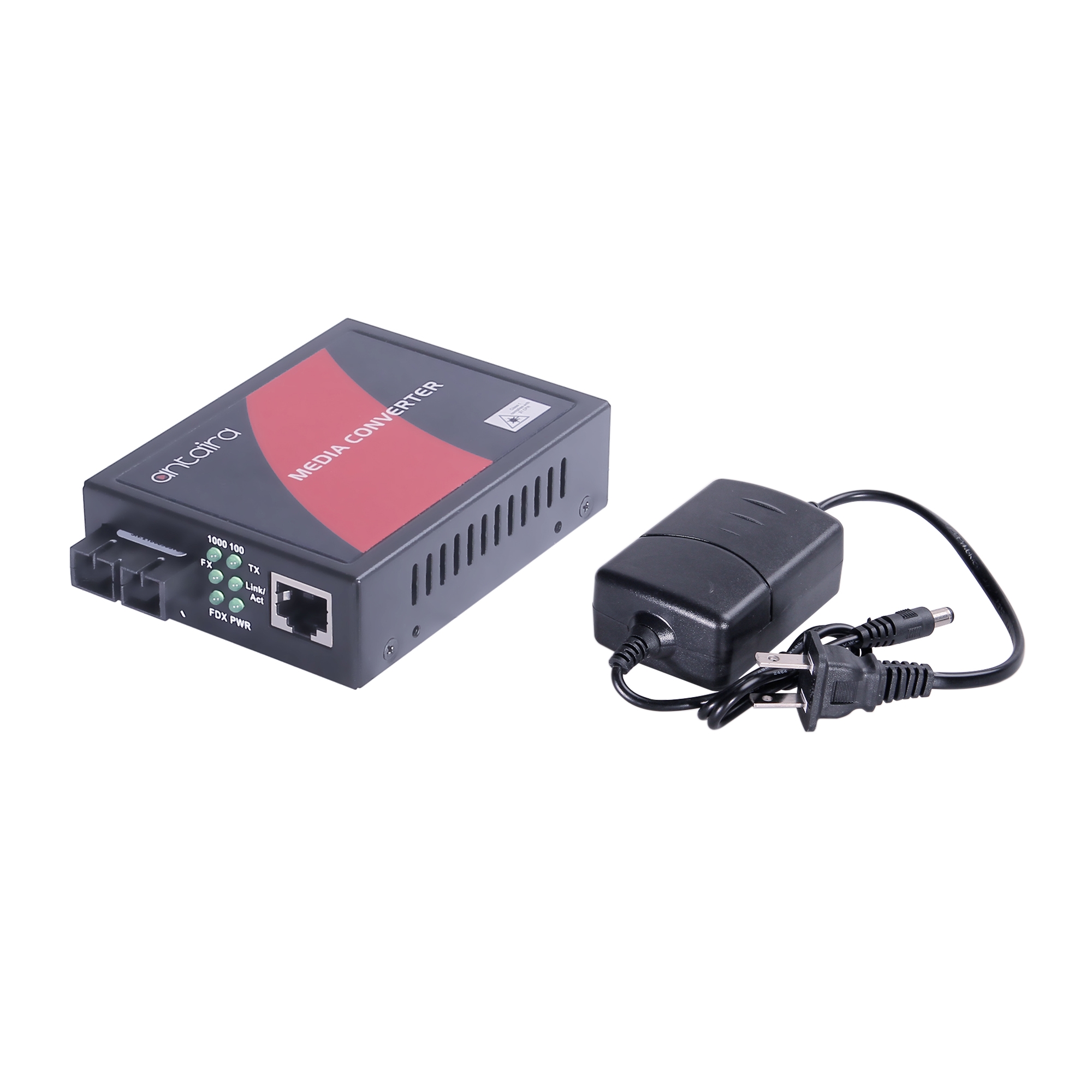

Package Content
- External Power Adapter
- FCU-3003-SC
Download
Optional Accessories
-
- FCU-BK
- Wall-Mount Brackets For FCU Modules (1 Pair)
-
- FCU-DIN-RAIL-KIT
- Din-Rail Kit for FCU- Modules
-
- FCU-RACK16-AC
- 16-Slot Unmanaged Universal Media Converter Rack, w/1 AC Power Supply
-
- FCU-RACK16S
- 16-Slot Unmanaged Universal Media Converter Rack, Compact Size, w/1 AC Power Supply
-
- CBF-SC01SC-MD
- SC To SC 1 Meter Multi-Mode Duplex Cable
-
- AD-SCM-STF-M
- SC Male To ST Female Adapter Multi-Mode
Related Resources
How does LFP (Link Fault Pass Through) work on Ethernet Media Converters?
How does LFP (Link Fault Pass Through) work on Ethernet Media Converters?
August 06, 2020
Technology
IEEE Standards
- IEEE 802.3 10Base-T Ethernet
- IEEE 802.3u 100Base-TX Fast Ethernet
- IEEE 802.3ab 1000Base-T Gigabit Ethernet
- IEEE 802.3z 1000Base-X Gigabit Fiber
Processing Type
Store and Forward
Protocol
CSMA/CD
Flow Control
IEEE 802.3x back pressure flow control
Performance
MAC Table Size
2K
Jumbo Frame
1.6K bytes
Memory Buffer
128 kbits
Transfer Rate
- 14,880pps for Ethernet Port
- 148,800pps for Fast Ethernet Port
- 1,488,000pps for Gigabit Ethernet Port
Ethernet Interface
Ethernet Port Count
1 port
10/100/1000 BASE-T(X)
10/100/1000BaseT: 1 × RJ45 Port
Fiber Interface
Fiber Port Count
1 port
1000 BASE-X Fiber
1000BaseX: 1 × SC Port
Wavelength
850nm
Transmission Distance
550 m
Tx Power
-9.5 ~ -4.0 dBm
Rx Sensitivity
-18.0 dBm
Link Budget
8.5 dB
Other Interface
LED Indicator
PWR,FDX,100,1000,FX Link/Act,TX Link/Act
Mechanical Characteristics
Housing
Metal
Mounting
DIN-Rail mount, Wall mount (Optional)
Dimensions (W × H × D)
71 × 26 × 94 mm (2.80 × 1.02 × 3.70 inches)
Weight
0.4 kg
Power Requirements

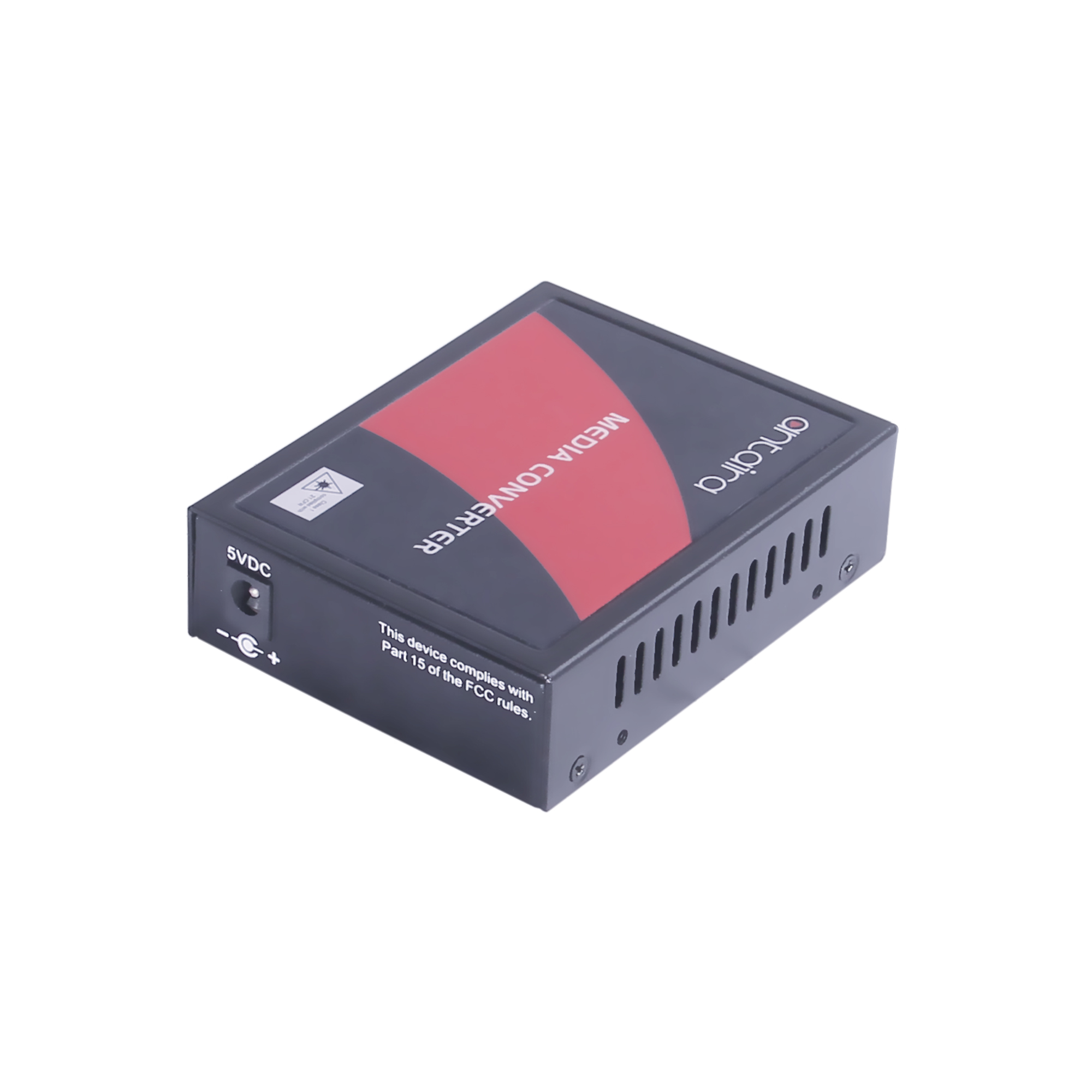

Power Connection
External power supply / DC Jack
Input Voltage
5V DC, 1A
System Power Consumption
3 Watts
Environmental Limits
Operating Temperature
0° to 55° C (32° to 131° F)
Storage Temperature
-40° to 70° C (-40° to 158° F)
Ambient Relative Humidity
5% to 90% non-condensing
Regulatory Approvals
Certifications
CE/FCC
Green
RoHS Compliant
Warranty
5 years
