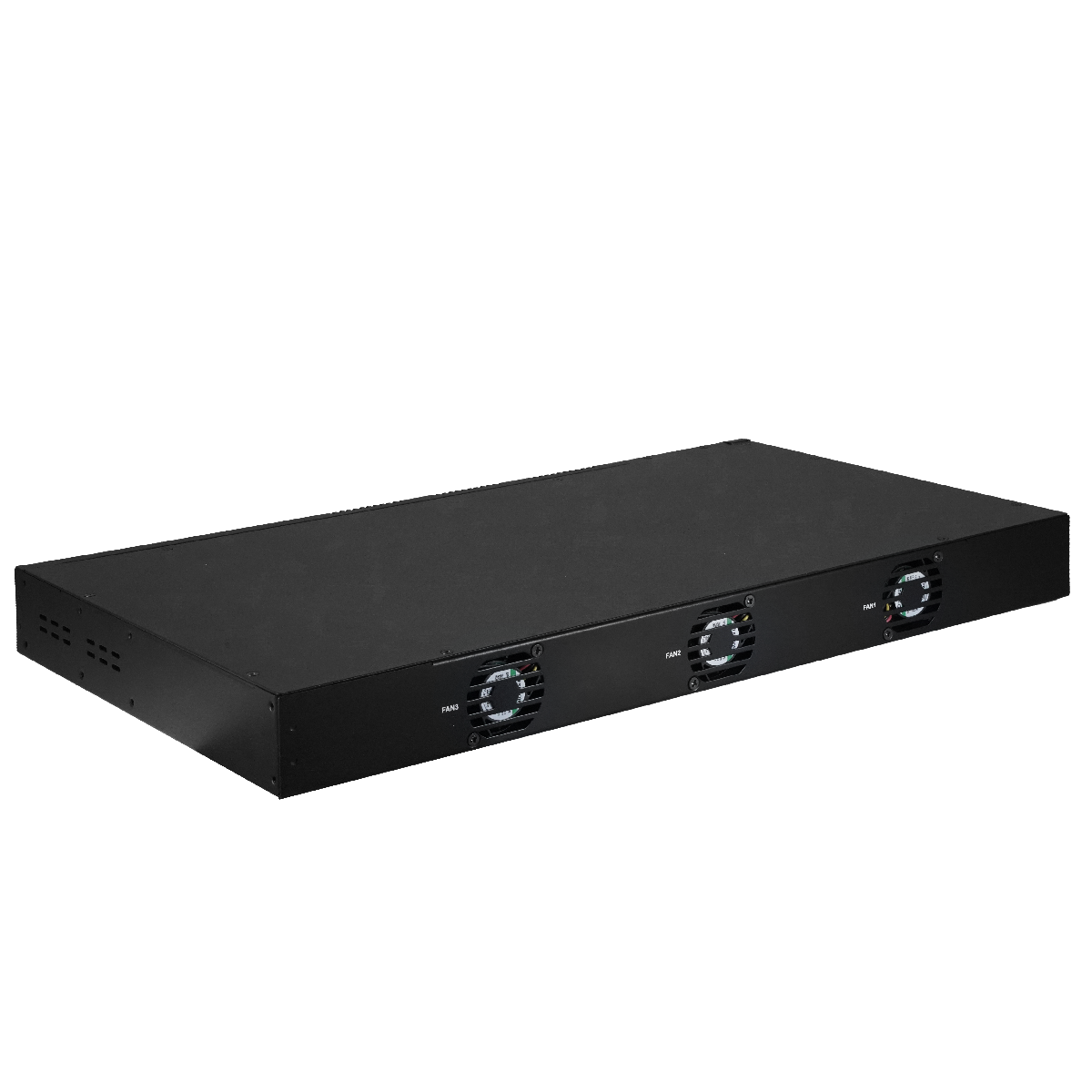

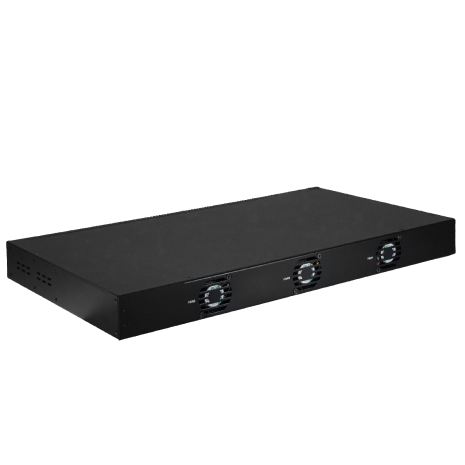

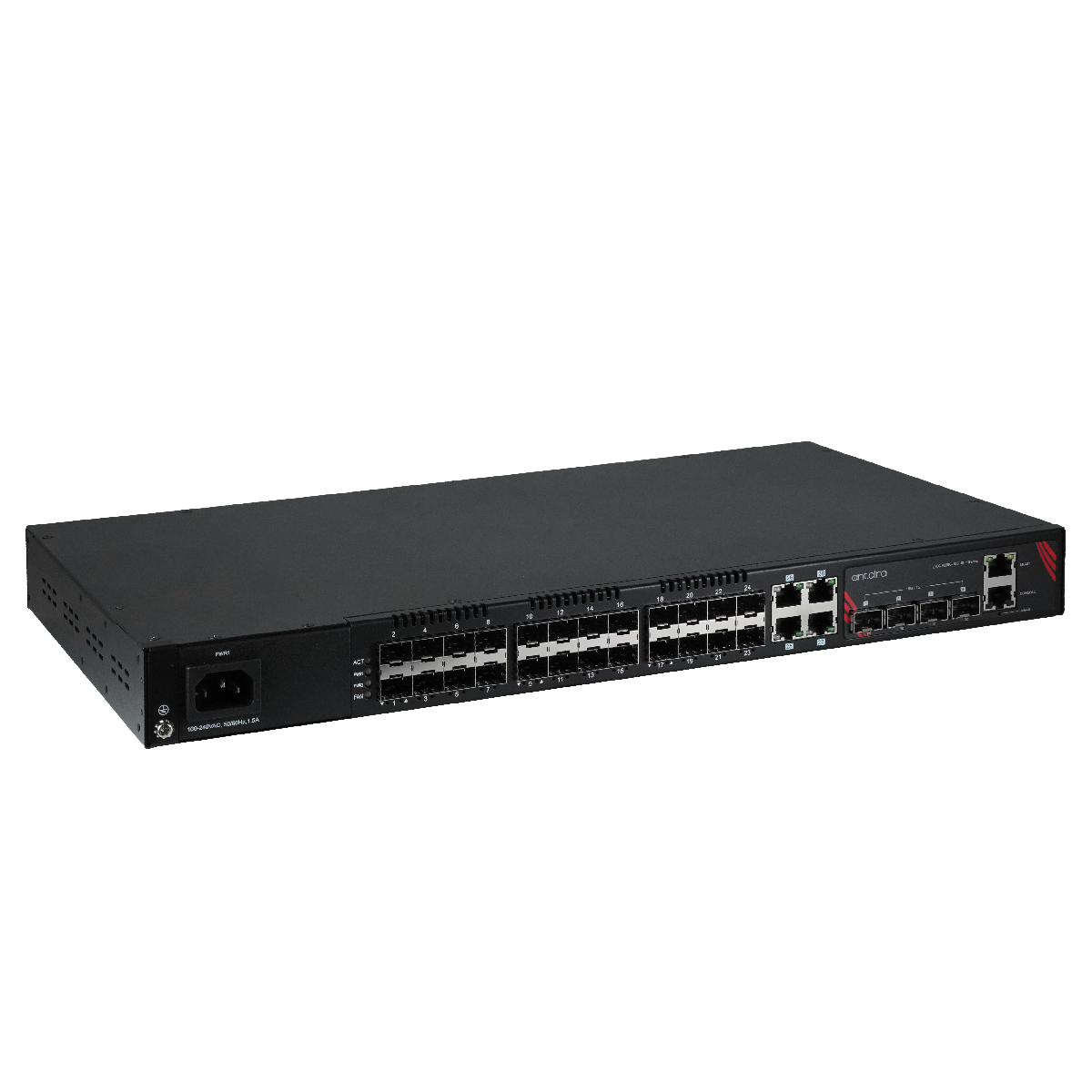

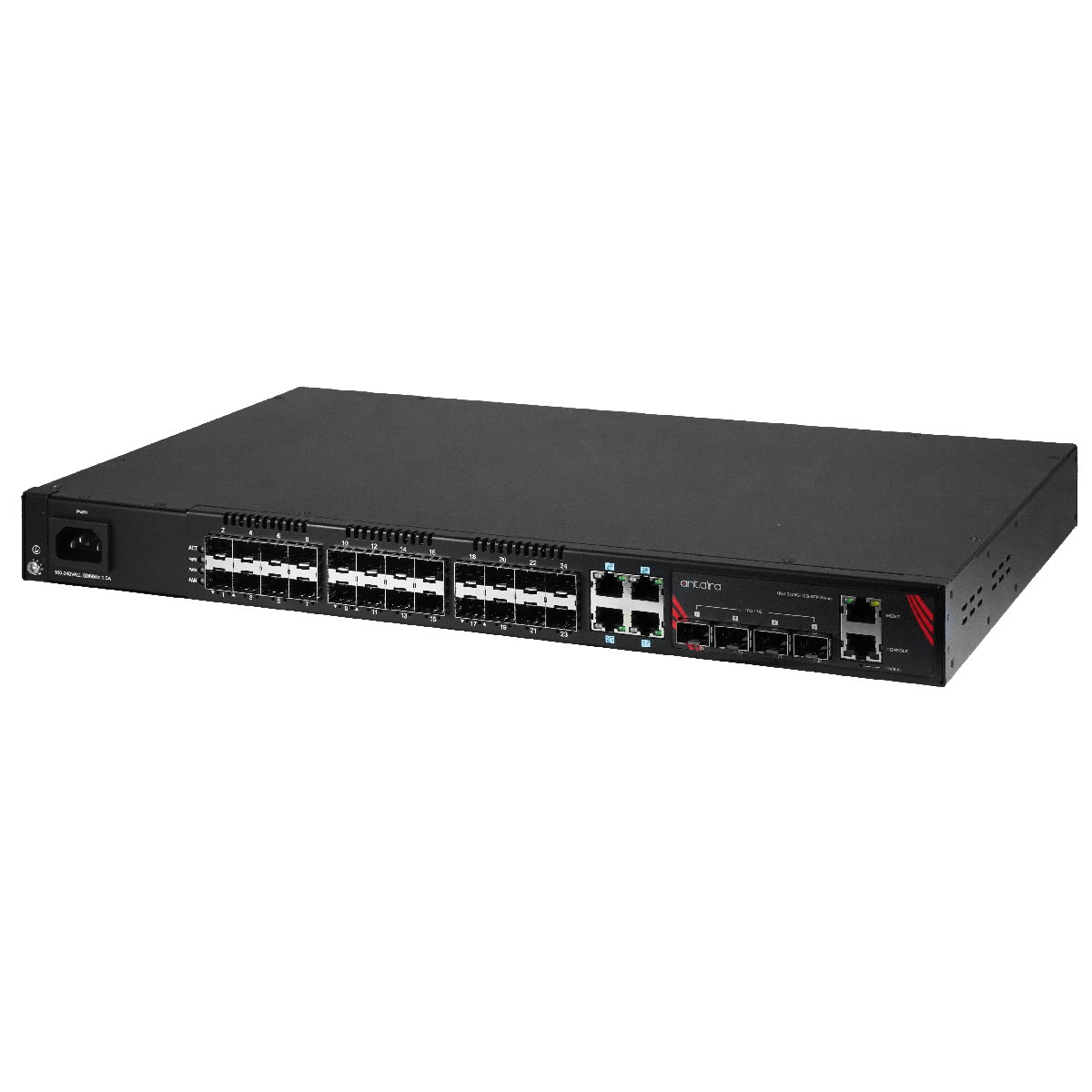

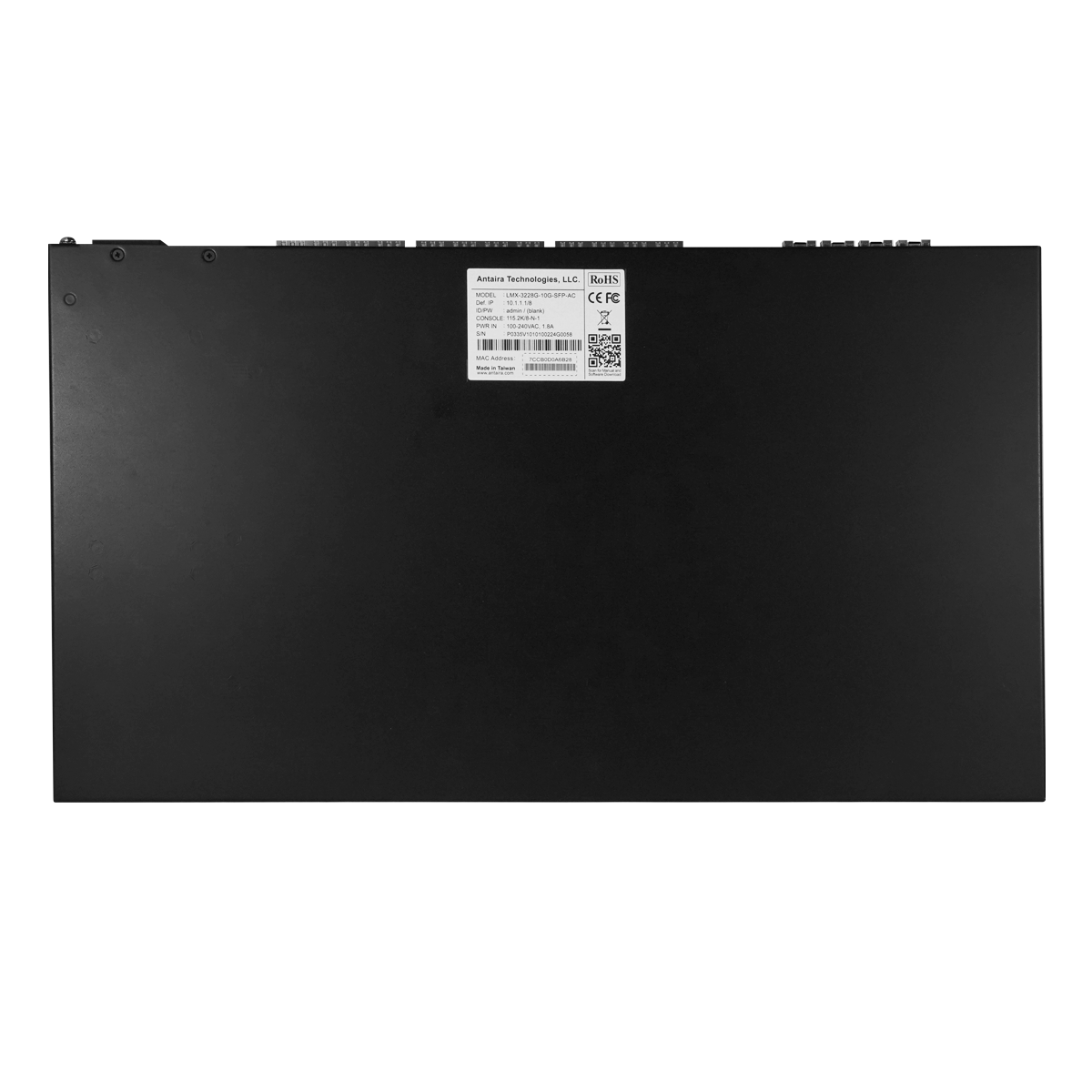

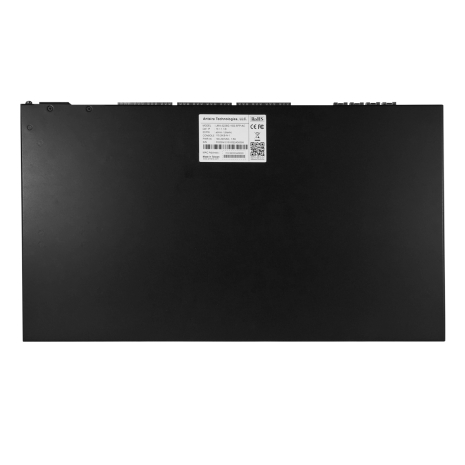

LMX-3228G-10G-SFP-AC
32-Port Industrial Gigabit Managed Ethernet Switch, with 4*10/100/1000 RJ45 Ports, 24*100/1000 SFP Slots, and 4*1G/10G SFP+ Slots with Single AC Power Supply
Product WarrantySee details >
0%
Introduction
Antaira Technologies’ LMX-3228G-10G-SFP-AC is a 32-port industrial managed Ethernet switch embedded with 24*gigabit SFP slots, 4*10G SFP+ slots, and 4*10/100/1000Tx RJ45 ports. This switch provides VLAN, QoS, and IGMP feature sets, as well as robust security management to facilitate service providers’ build out of a manageable and secure network. This model has single AC power supply made for different needs in the application.
The LMX-3228G-10G-SFP-AC is designed for rack-mount installation. It is suitable as a backbone fiber aggregation switch. This product is ideal for supporting applications that require high-density port connections, such as security surveillance, traffic monitoring systems, facility management in power/utility, water wastewater treatment plants and oil/gas/mining.
Features
- Provides 4*10/100/1000 RJ45 Ports, 24*100/1000 SFP Slots, and 4*1G/10G SFP+ Slots
- Remote Port Configuration Setting and Statistics Monitoring
- Broadcast/Multicast/Unknown Unicast Storm Control
- Configuration: Web Console, Telnet, CLI Command
- IP Multicast with IGMP Snooping / Query / Fast Leave / Filtering / Group Limited / MVR
- QoS (IEEE 802.1p)
- IEEE802.1Q VLAN for Easy Network Planning
- IEEE802.1X, SNMP v1/v2/v3
- Local Syslog Information can be Downloaded
- Link Aggregation for More Throughput
- Support Port Mirroring for Online Diagnostic
- 1U Rackmount Design
- 5-Year Warranty

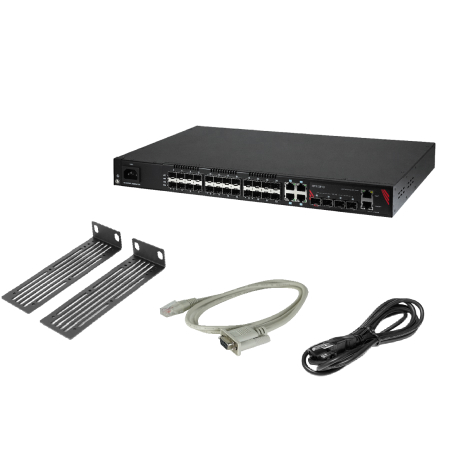

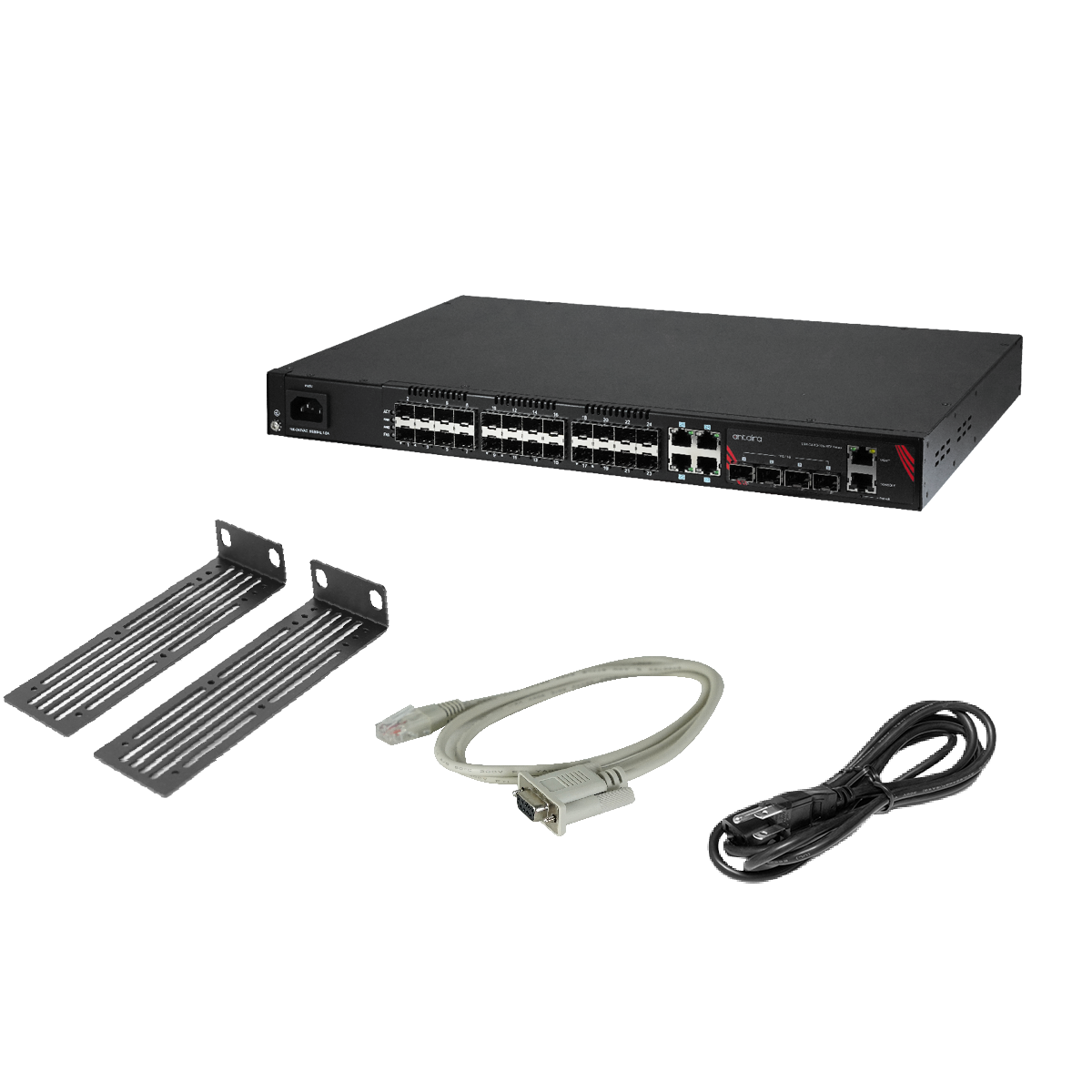

Package Content
- LMX-3228G-10G-SFP-AC
- DIN-Rail mounting bracket set with screws
- AC power cable
- RJ45 to DB9 serial console cable
Related Resources
PoE, PoE+ and PoE++: Choosing the Right Industrial Ethernet Switch for You
PoE, PoE+ and PoE++: Choosing the Right Industrial Ethernet Switch for You
May 16, 2022
Advanced Industrial Managed Ethernet Switches
Advanced Industrial Managed Ethernet Switches
October 18, 2018
Technology
IEEE Standards
- IEEE 802.3 10Base-T Ethernet
- IEEE 802.3u 100Base-TX Fast Ethernet
- IEEE 802.3ab 1000Base-T
- IEEE 802.3z 1000Base-X Gigabit Fiber
- IEEE 802.3ae 10 Gigabit Ethernet
- IEEE 802.3az power management / Green Ethernet
- IEEE 802.3x Flow Control
- IEEE 802.1d STP (Spanning Tree Protocol)
- IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
- IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
- IEEE 802.1Q Virtual Local Area Network (VLAN)
- IEEE 802.1p QoS/CoS Protocol for Traffic Prioritization
- IEEE 802.1X Network Authentication
- IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
- IEEE 802.3ad Link Aggregation (LACP)
Processing Type
Store and Forward
Protocol
IGMP v1/v2/v3, SNMP v1/v2c/v3, RMON Group 1/2/3/9, TFTP, HTTP, Telnet, Syslog, DHCP client, DHCP snooping, DHCP option 82 relay, NTPv4 Client, SSHv2/HTTPS, IPv4/IPv6
Flow Control
IEEE 802.3x flow control, back pressure flow control
Software
Configuration
Web Console,Telnet,CLI
VLAN Group
4K
IGMP Group
1024
Performance
MAC Table Size
32K
Jumbo Frame
10K
Memory Buffer
- Flash : 16MB
- RAM: 128MB
Transfer Rate
- 14,880pps for Ethernet Port
- 148,800pps for Fast Ethernet Port
- 1,488,000pps for Gigabit Ethernet Port
- 14,880,000pps for 10 Gigabit Ethernet Port
Switching Architecture
Back-Plane (Switching Fabric): 136Gbps
Ethernet Interface
Ethernet Port Count
4 ports
10/100/1000 BASE-T(X)
4 ports
Fiber Interface
Fiber Port Count
28 ports
1G/10G SFP+
4 ports
Wavelength
Refers to SFP module
Other Interface
LED Indicator
- Power : PWR1, PWR2
- System : ACT , FAN
- Link /Act
Mechanical Characteristics
Housing
Metal
Mounting
Rack Mount
Dimensions (W × H × D)
440 × 43.5 × 250 mm
Weight
- Unit weight : 7.28 lbs
- Shipping weight : 9.48 lbs
Power Requirements
Power Connection
Slide-In Power Module
Input Voltage
Single 100V~240VAC
Power Redundancy
Yes
System Power Consumption
<60W Max.
Environmental Limits
Operating Temperature
0 ~ 50°C (32° to 122° F)
Storage Temperature
-25 ~ 70°C (-13° to 158° F)
Ambient Relative Humidity
10% ~ 90% (non-condensing)
Regulatory Approvals
Certifications
FCC, CE
EMI
- FCC 47 CFR Part 15, Subpart B, Class A
- ANSI C63.4:2014
- CE EN 55032:2015/A11:2020, Class A
- EN 61000-3-2:2014
- EN 61000-3-3:2013
EMS
- CE EN 55035:2017/A11:2020, ClassA
- IEC61000-4-2:2008
- IEC61000-4-3:2006+A1:2007+A2:2010
- IEC61000-4-4:2012
- IEC61000-4-5:2014
- IEC61000-4-6:2013
- IEC61000-4-8:2009
- IEC61000-4-11:2004+A1:2017
MTBF
50,468 hrs
Green
RoHS Compliant
Warranty
5 years
